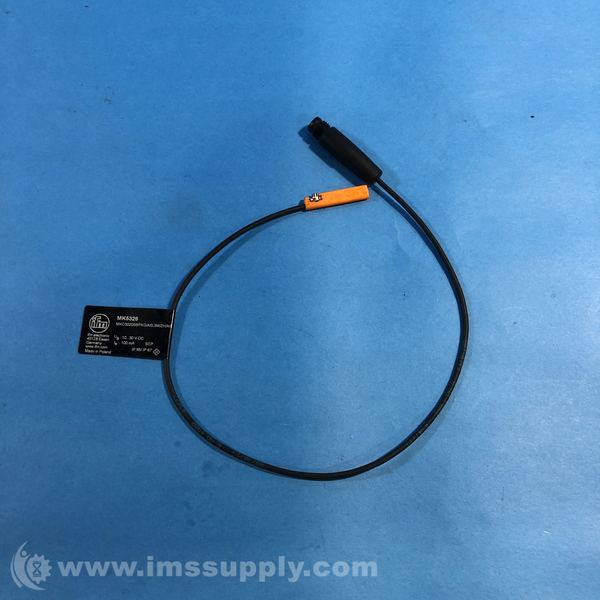

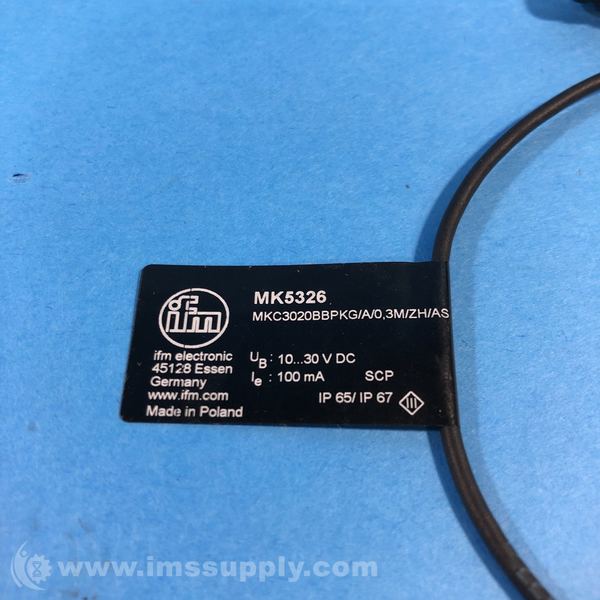

IFM MK5326 C-SLOT CYLINDER SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: MK5326
IMS Product Code: 1937948
Packaging: Sold Individually
Description:
Ifm MK5326 C-Slot Cylinder Sensor
PNP-NO, 10-30VDC, M8 3-Pin C-Slot Cylinder Sensor
Specifications
- Electrical Design: PNP
- Output Function: normally open
- Dimensions: 26.1 x 2.8 x 5.5 mm
- Operating Voltage: 10...30 DC V
- Current Consumption: < 10 mA
- Protection Class: III
- Reverse Polarity Protection: yes
- Max. Power-On Delay Time: 30 ms
- Max. Voltage Drop Switching Output DC: 2.5 V
- Permanent Current Rating of Switching Output DC: 100 mA
- Switching Frequency DC: 5000 Hz
- Short-Circuit Protection: yes
- Type of Short-Circuit Protection: yes (non-latching)
- Overload Protection: yes
- Magnetic Sensitivity: 2 mT
- Travel Speed: > 10 m/s
- Hysteresis: 1 mm
- Repeatability: < 0.2 mm
- Ambient Temperature: -25...85 degrees C
- Protection: IP 65; IP 67
- MTTF: 2064 years
- Weight: 9.7 g
- Mounting: flush mountable
- Cylinder Type: C-slot cylinders
- Material: housing: PA; Fastening clamp: stainless steel
- Tightening Torque: < 0.24 Nm
- Display: 1 x LED, yellow
- Connection: Cable: 0.3 m, PUR; Connector: 1 x M8
- Current Type: DC
- Termination Type: Cable with Connector
- Country of Origin: Germany
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 8 In Stock
Ships today if ordered in the next 10 hours and 25 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 25 minutes.
