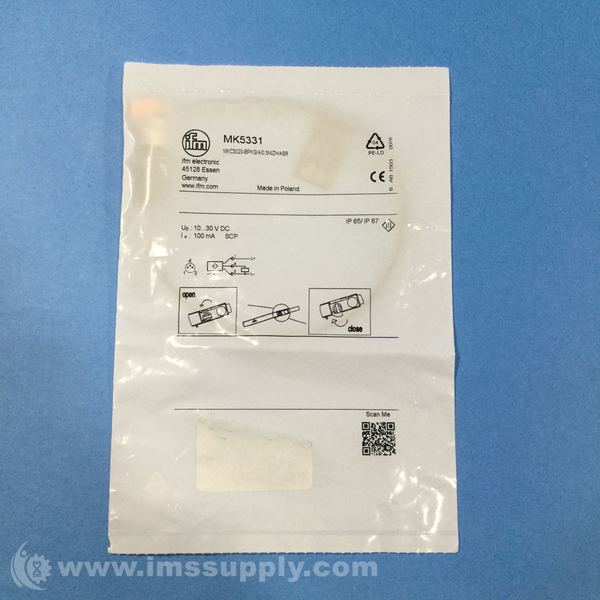

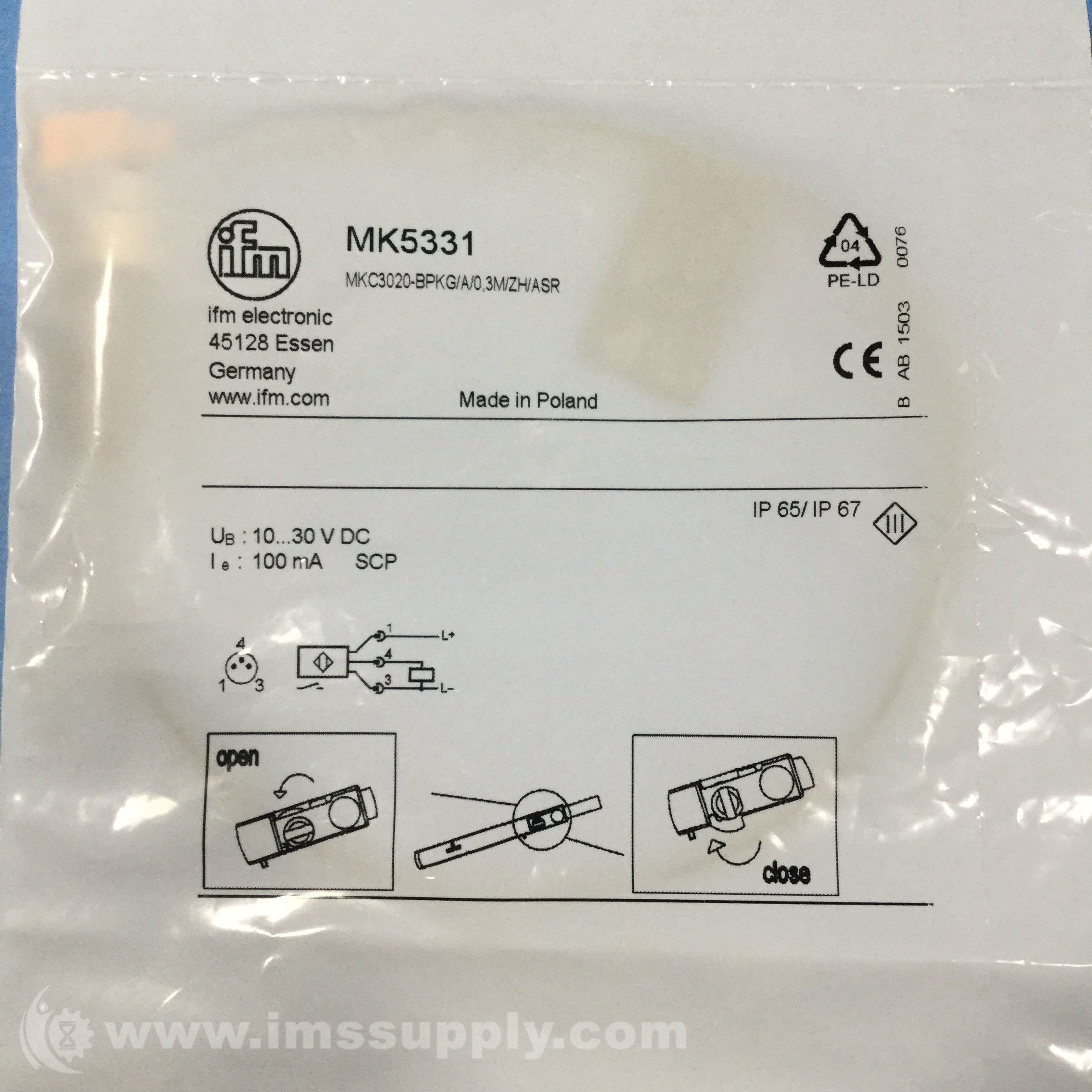

IFM MK5331 C-SLOT CYLINDER SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: MK5331
IMS Product Code: 1834553
Packaging: Sold Individually
Description:
Ifm MK5331 C-Slot Cylinder Sensor
PNP C-Slot Cylinder Sensor with M8 connector and 0.3m PUR cable
Specifications
- Electrical design: PNP
- Output function: normally open
- Dimensions: 17.5 x 2.8 x 7.7 mm
- Operating voltage: 10...30 V DC
- Current consumption: < 10 mA
- Protection class: III
- Reverse polarity protection: yes
- Max. power-on delay time: 30 ms
- Max. voltage drop switching output DC: 2.5 V
- Permanent current rating of switching output DC: 100 mA
- Switching frequency DC: 5000 Hz
- Short-circuit protection: yes
- Type of short-circuit protection: yes (non-latching)
- Overload protection: yes
- Magnetic sensitivity: 2 mT
- Travel speed: > 10 m/s
- Hysteresis: 1 mm
- Repeatability: < 0.2 mm
- Ambient temperature: -25...85 degrees C
- Protection: IP 65; IP 67
- MTTF: 2064 years
- Weight: 12.2 g
- Mounting: non-flush mountable
- Cylinder type: C-slot cylinders
- Material: housing: PA; Fastening clamp: stainless steel
- Tightening torque: < 0.24 Nm
- Display: 1 x LED, yellow
- Connection: Cable: 0.3 m, PUR
- Connector: 1 x M8; coding: A; Locking: Knurled nut, rotatable
- Type of sensor: magnetic field
- Range of detectable magnetic field: 2 mT
- Output configuration: PNP / NO
- IP rating: IP65, IP67
- Kind of sensor: piston position
- Number of pins: 3
- Indication: LED
- Lead length: 0.3 m
- Wire insulation material: PUR
- Application: C-slot cylinder
- Polarisation: A code
- Operating temperature: -25...85 degrees C
- Supply voltage: 10...30 V DC
