IFM OGD582 LASER DISTANCE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: OGD582
IMS Product Code: 2133756
Packaging: Sold Individually
Description:

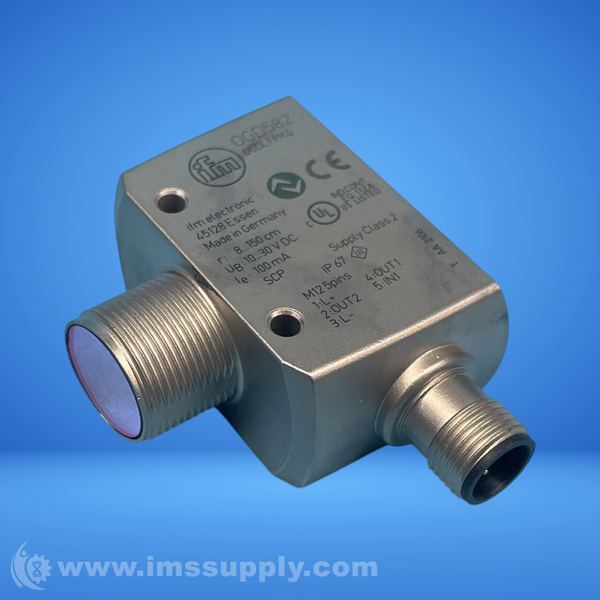

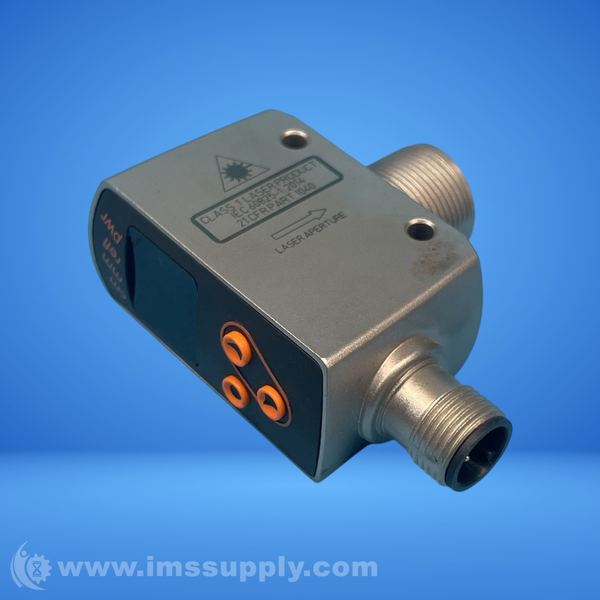

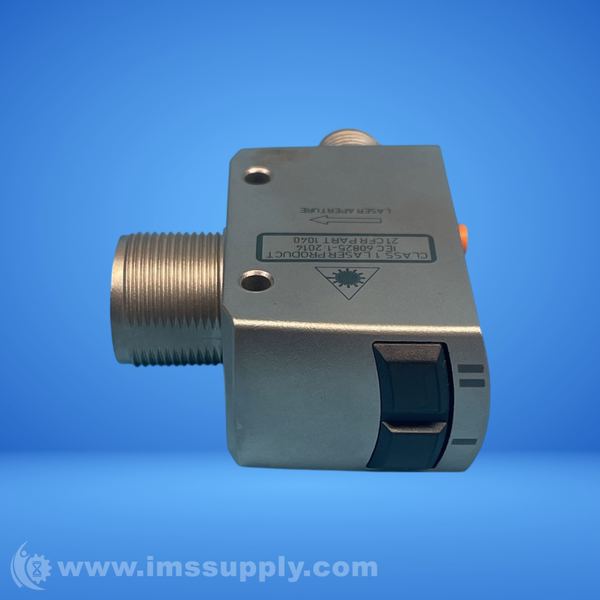

Ifm OGD582 Laser Distance Sensor
Photoelectric distance sensor with laser technology, measuring range up to 1.5m, IO-Link interface, PNP output, IP65/IP67 protection, stainless steel housing.
Specifications
- Technology: laser
- Range: up to 1.5 m
- Type of light: red light
- Laser protection class: 1
- Housing: rectangular with M18 thread
- Operating voltage: 10...30 DC
- Current consumption: < 75 mA
- Protection class: III
- Output function: 2 x normally open / normally closed
- Max. current load per output: 100 mA
- Measuring range: 0.085...1.5 m
- Communication interface: IO-Link
- Ambient temperature: -25...60 degrees C
- Protection: IP 65; IP 67
- Materials: housing: stainless steel (1.4404 / 316L); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: glass
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
