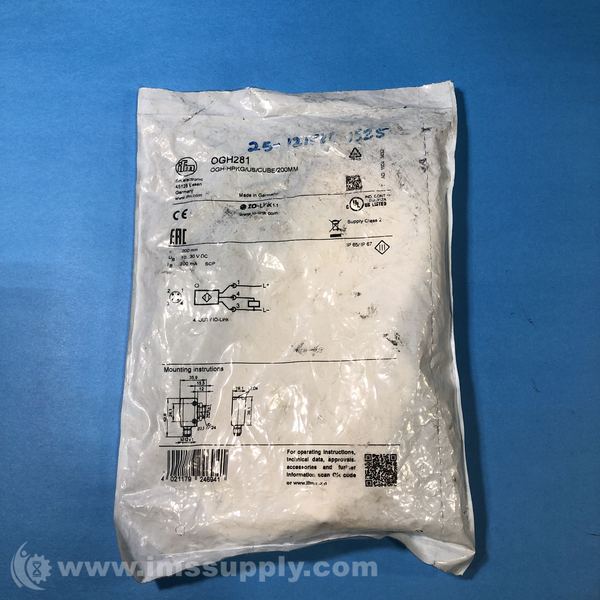

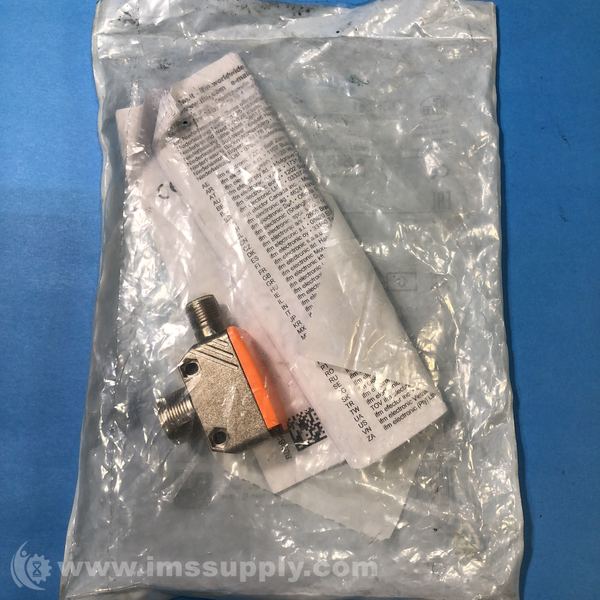

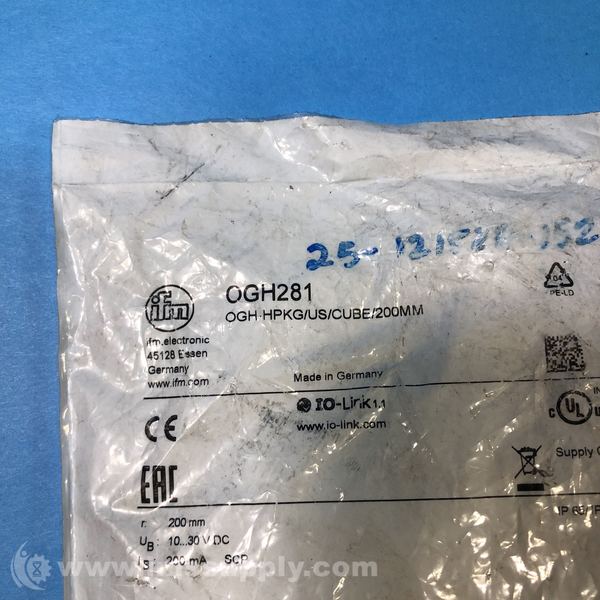

IFM OGH281 DIFFUSE REFLECTION SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: OGH281
IMS Product Code: 1937653
Packaging: Sold Individually
Description:
Ifm OGH281 Diffuse Reflection Sensor
Diffuse reflection sensor with background suppression
Specifications
- Type of light: red light
- Housing: rectangular with M18 thread
- Operating voltage [V]: 10...30 DC
- Rated insulation voltage [V]: 32
- Current consumption [mA]: 25
- Protection class: III
- Reverse polarity protection: yes
- Max. power-on delay time [ms]: 300
- Wave length [nm]: 645
- Electrical design: PNP
- Output function: light-on mode
- Max. voltage drop switching output DC [V]: 2.5
- Permanent current rating of switching output DC [mA]: 200
- Switching frequency DC [Hz]: 1000
- Short-circuit protection: yes
- Type of short-circuit protection: yes (non-latching)
- Range [mm]: < 200
- Range on white object (90 % remission) [mm]: < 200
- Range on grey object (18 % remission) [mm]: < 200
- Range on black object (6 % remission) [mm]: < 190
- Range adjustable: no
- Max. light spot diameter [mm]: 13
- Background suppression available: yes
- Communication interface: IO-Link
- Transmission type: COM2 (38,4 kBaud)
- IO-Link revision: 1.1
- SDCI standard: IEC 61131-9
- SIO mode: yes
- Required master port class: A
- Min. process cycle time [ms]: 10
- Ambient temperature [degrees C]: -25...60
- Storage temperature [degrees C]: -40...60
- Protection: IP 65; IP 67
- EMC: EN 60947-5-2
- MTTF [years]: 782
- Weight [g]: 58.5
- Dimensions [mm]: 52.6 x 19.1 x 35.9
- Thread designation: M18 x 1
- Material: diecast zinc; PEI
- Lens material: PEI
- Lens alignment: Side sensing
- Display Switching status: 1 x LED, yellow
- Power: 1 x LED, green
- Connection: Connector: 1 x M12; coding: A
