IFM OGP500 RETRO-REFLECTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: OGP500
IMS Product Code: 1925136
Packaging: Sold Individually
Sold Individually
Kit of 3
Description:

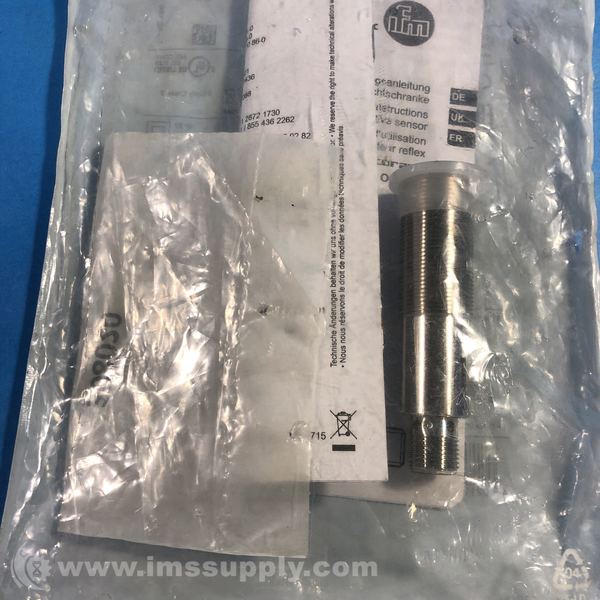

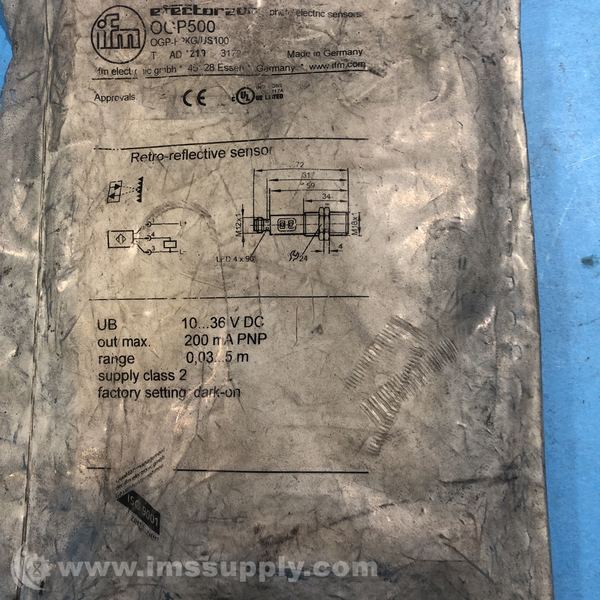

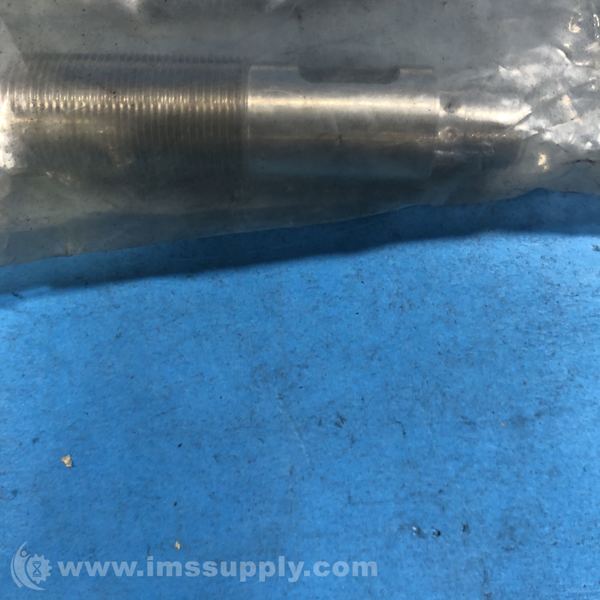

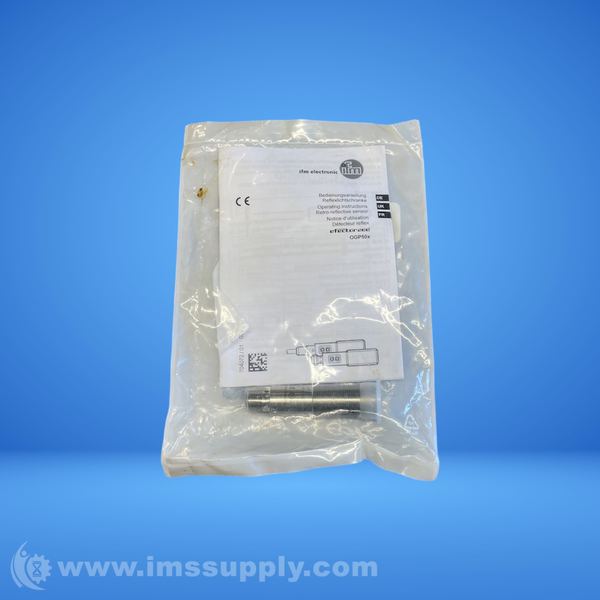

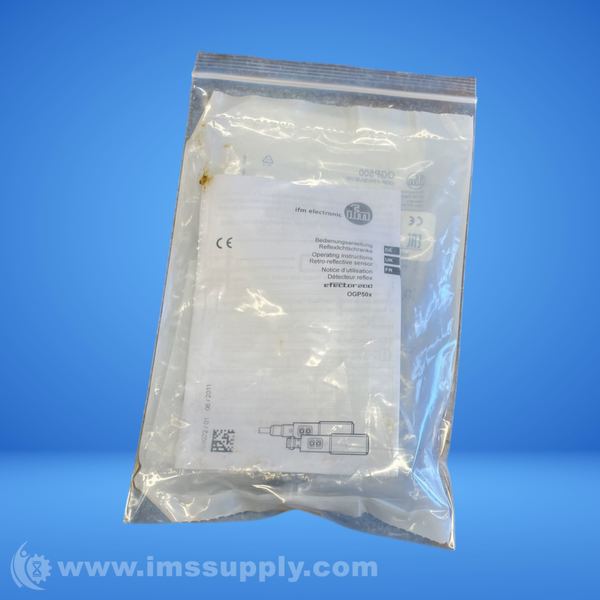

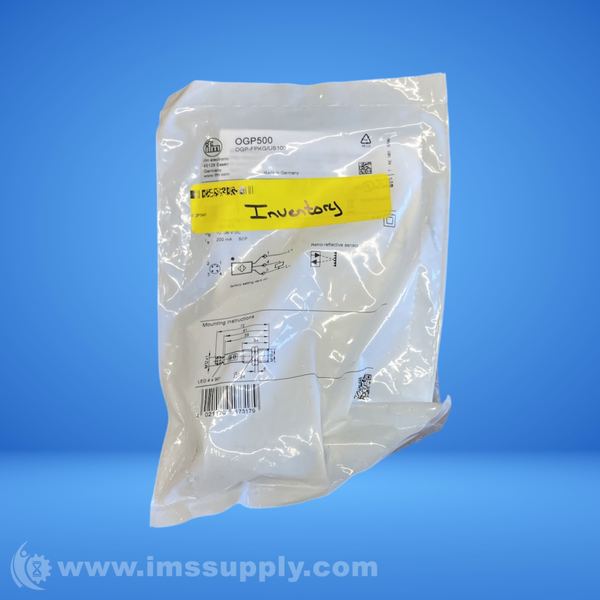

Ifm OGP500 Retro-Reflective Sensor
Retro-reflective sensor with stainless steel housing, 10-36V DC operation, PNP output, 0.03-5m range, IP67 protection, M18x1 thread.
Specifications
- Brand: IFM
- Model: OGP500
- Type: Retro-reflective sensor
- Housing Material: Stainless steel
- Operating voltage [V]: 10...36 DC
- Current consumption [mA]: 20
- Protection class: II
- Reverse polarity protection: yes
- Wave length [nm]: 624
- Electrical design: PNP
- Output function: light-on/dark-on mode; (programmable)
- Max. voltage drop switching output DC [V]: 2.5
- Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))
- Switching frequency DC [Hz]: 2000
- Short-circuit protection: yes
- Type of short-circuit protection: yes (non-latching)
- Overload protection: yes
- Range referred to prismatic reflector [m]: 0.03...5; (Prismatic reflector Ø 80 E20005)
- Factory setting: dark-on mode
- Range adjustable: yes
- Max. light spot diameter [mm]: 200
- Light spot dimensions refer to: at maximum range
- Polarization filter available: yes
- Ambient temperature [°C]: -25...80
- Protection: IP 67
- EMC: EN 60947-5-2
- MTTF [years]: 431
- Weight [g]: 61.8
- Dimensions [mm]: M18 x 1 / L = 72
- Thread designation: M18 x 1
- Material: stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU (urethane)
- Lens material: PMMA
- Display: Switching status
- Switching status: 1 x LED, yellow
- Connection: Connector: 1 x M12; coding: A
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
