IFM OJ5048 DIFFUSE REFLECTION SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: OJ5048
IMS Product Code: 1844246
Packaging: Sold Individually
Description:

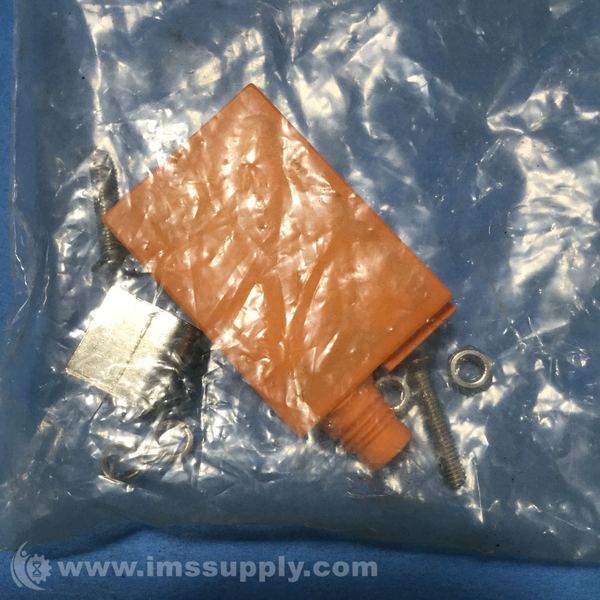

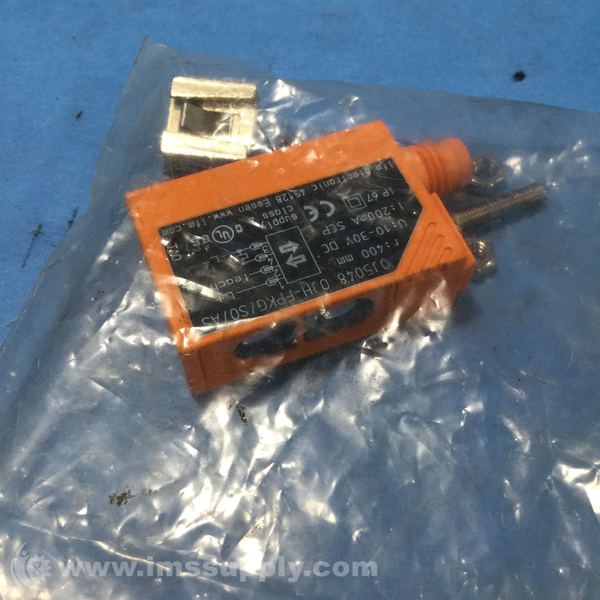

Ifm OJ5048 Diffuse Reflection Sensor
Diffuse reflection sensor with background suppression, PNP output, 10-30V DC operating voltage, IP67 protection class.
Specifications
- Operating voltage: 10...30 DC
- Current consumption: 25 mA
- Protection class: III
- Reverse polarity protection: yes
- Wave length: 660 nm
- Electrical design: PNP
- Output function: light-on/dark-on mode
- Max. voltage drop switching output DC: 2.5 V
- Permanent current rating of switching output DC: 200 mA
- Switching frequency DC: 1000 Hz
- Short-circuit protection: yes
- Overload protection: yes
- Range: 15...400 mm
- Range adjustable: yes
- Max. light spot diameter: 18 mm
- Background suppression available: yes
- Ambient temperature: -25...60 degrees C
- Protection: IP 67
- EMC: EN 60947-5-2
- MTTF: 556 years
- Weight: 35.3 g
- Dimensions: 35 x 11 x 24 mm
- Material: housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
- Lens material: PMMA
- Lens alignment: Side sensing
- Display: Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Electronic lock: yes
- Connection: Connector: 1 x M8; coding: A
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
