IFM PN7003 PRESSURE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: PN7003
IMS Product Code: 1937879
Packaging: Sold Individually
Description:

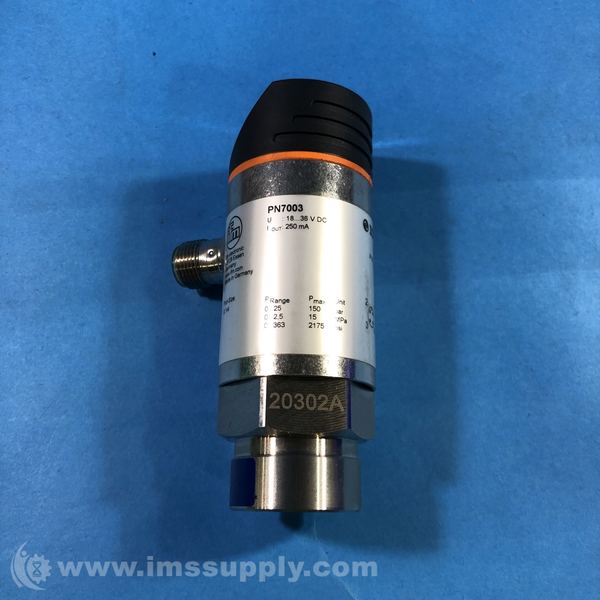

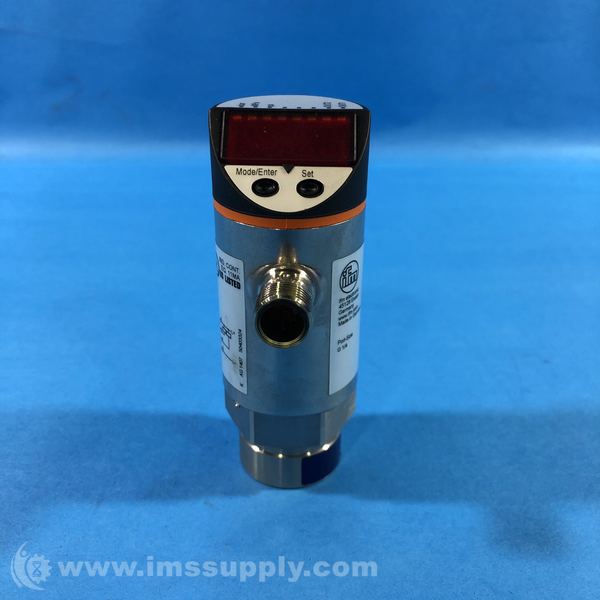

Ifm PN7003 Pressure Sensor
Electronic pressure monitor with G 1/4 internal thread, switching signal, IO-Link, connector, relative pressure measurement
Specifications
- Operating Voltage: 18-36VDC
- Measuring Range: 0-25 bar; 0-363 psi; 0-2.5 MPa
- Nominal Pressure: 150 bar; 2175 psi; 15 MPa
- Minimum Burst Pressure: 350 bar; 5075 psi; 35 MPa
- Temperature Range: -25-80 degrees C
- Protection Level: IP 65
- Electrical Connection: M12 x 1; 4-pin
- Output Function: Normally Open/Normally Closed
- Switching Frequency: > 500 Hz
- Weight: 0.262 kg

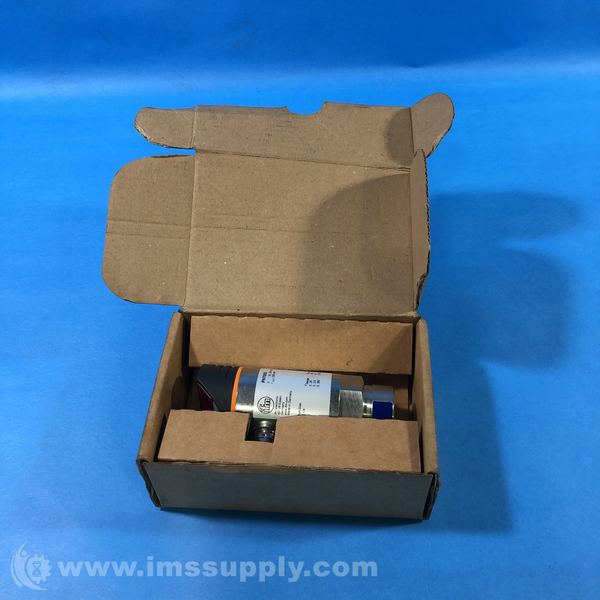

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 25 minutes.
