IFM PN7293 PRESSURE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: PN7293
IMS Product Code: 1953614
Packaging: Sold Individually
Description:

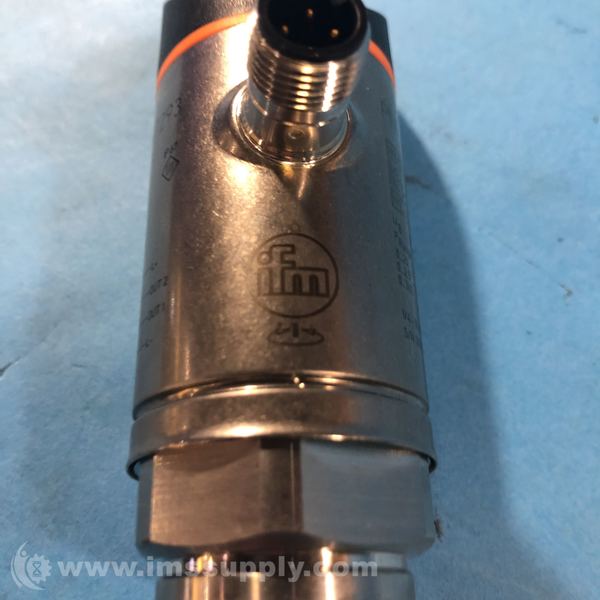

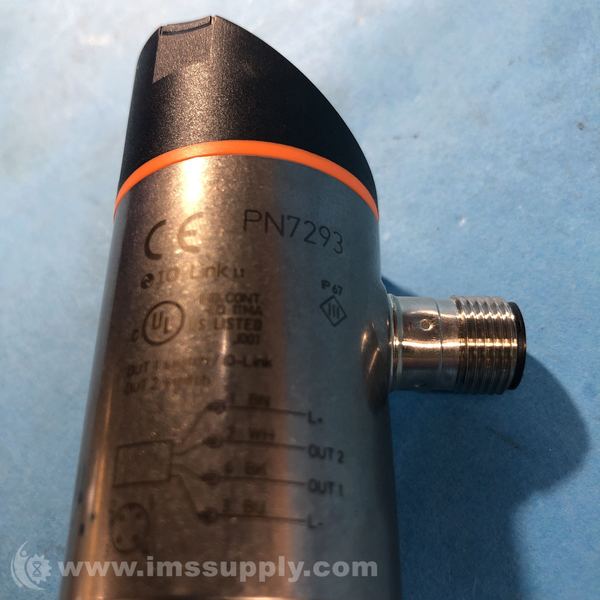

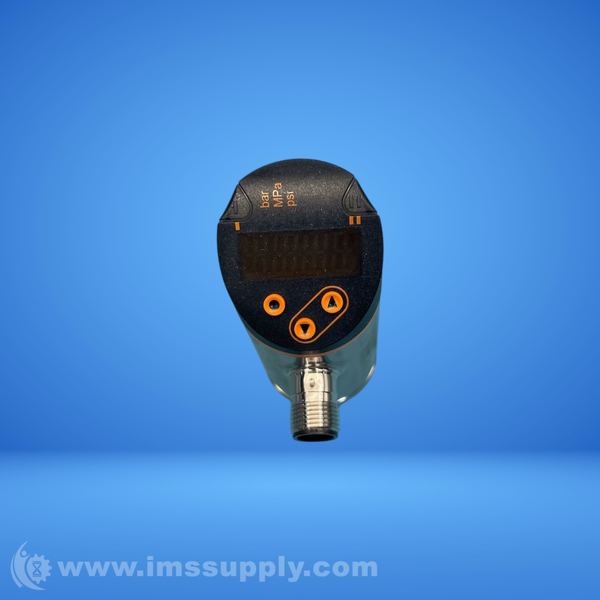

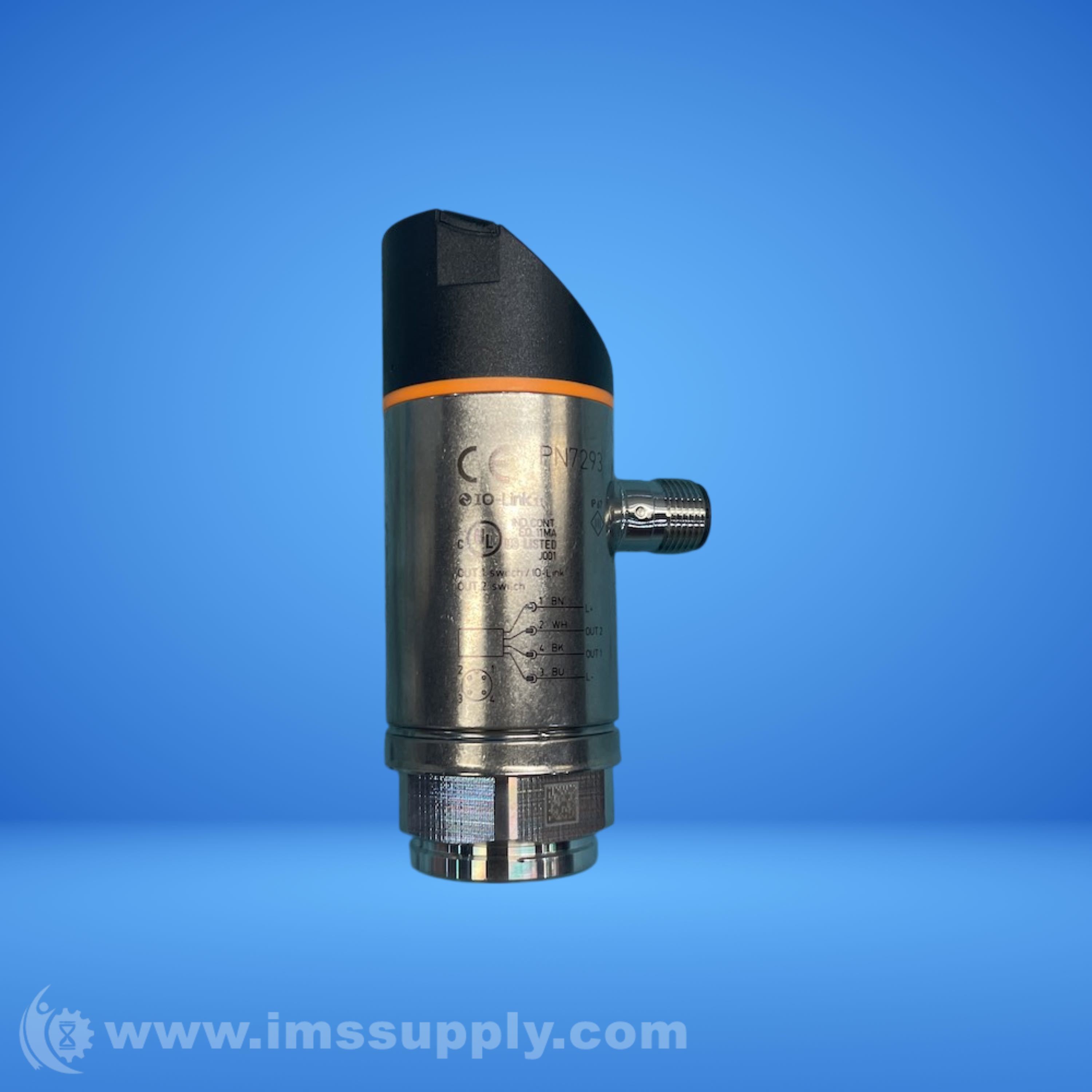

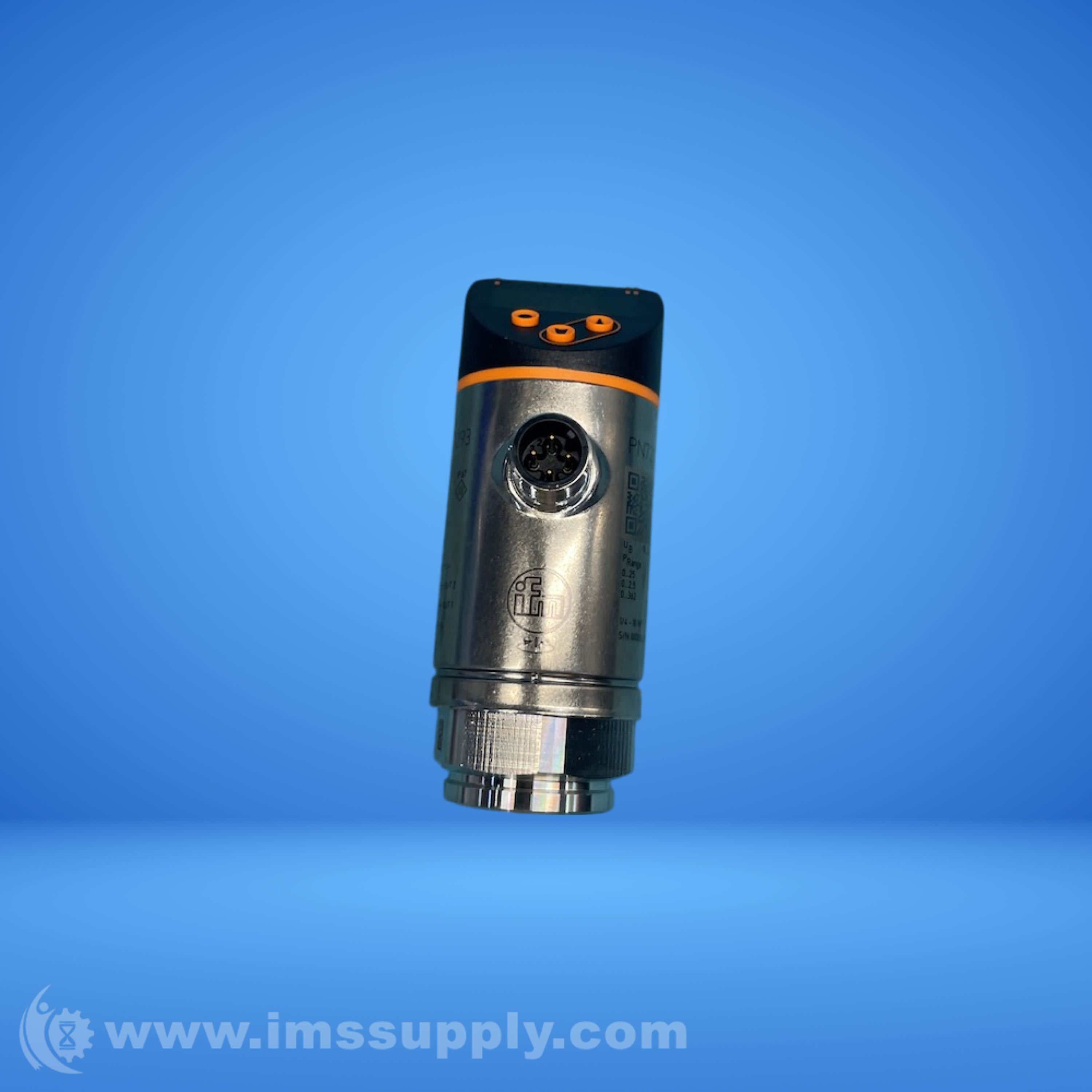

Ifm PN7293 Pressure Sensor
Electronic pressure sensor with display, 0-25 bar, 2 digital outputs, 1/4" NPT internal thread, 18-30 VDC, IO-Link communication
Specifications
- Measuring range: 0...25 bar, 0...362 psi, 0...2.5 MPa
- Process connection: 1/4" NPT internal thread
- Measuring element: Ceramic-capacitive pressure measuring cell
- Media: Liquids and gases
- Pressure rating: 150 bar, 2175 psi, 15 MPa
- Output signal: Switching signal, IO-Link
- Output function: Normally open/closed, configurable
- Switching frequency DC: < 170 Hz
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Housing material: Stainless steel
- Wetted materials: Ceramic, Stainless steel
- IP rating: IP65, IP67
- Operating voltage: 18...30 V DC
- Current consumption: < 35 mA
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 48 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 48 minutes.
