IFM PN7692 PRESSURE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: PN7692
IMS Product Code: 1846437
Packaging: Sold Individually
Description:

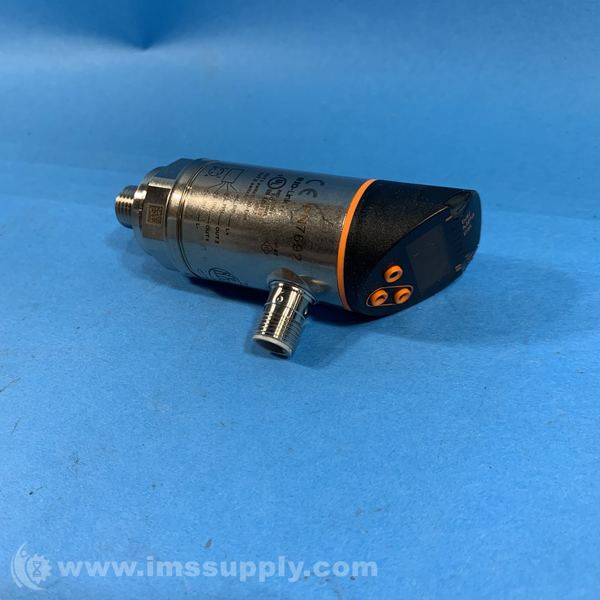

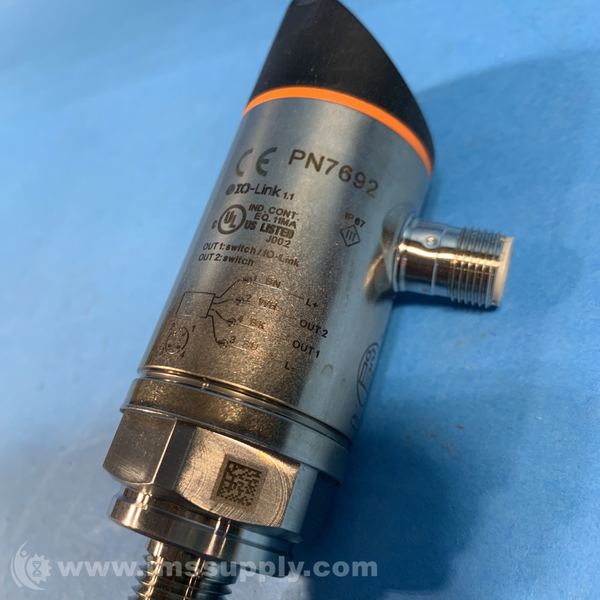

Ifm PN7692 Pressure Sensor
Electronic pressure monitor with display, relative pressure measurement for liquids and gases.
Specifications
- Measuring range: 0...100 bar, 0...1450 psi, 0...10 MPa
- Process connection: 1/4" NPT external thread
- Measuring element: ceramic-capacitive pressure measuring cell
- Medium temperature: -25...80 degrees C
- Pressure rating: 300 bar, 4350 psi, 30 MPa
- Operating voltage: 18...30 V DC
- Output signal: switching signal; IO-Link
- Electrical design: PNP/NPN
- Protection class: III
- Housing materials: 1.4404, PBT+PC-GF 30, PBT-GF 20, PC
- Materials (wetted parts): 1.4404, ceramics, FKM
- Display: 4-digit alphanumeric display with LED indicators
- Connection: M12 connector
- Protection: IP 65 / IP 67
- IO-Link revision: 1.1

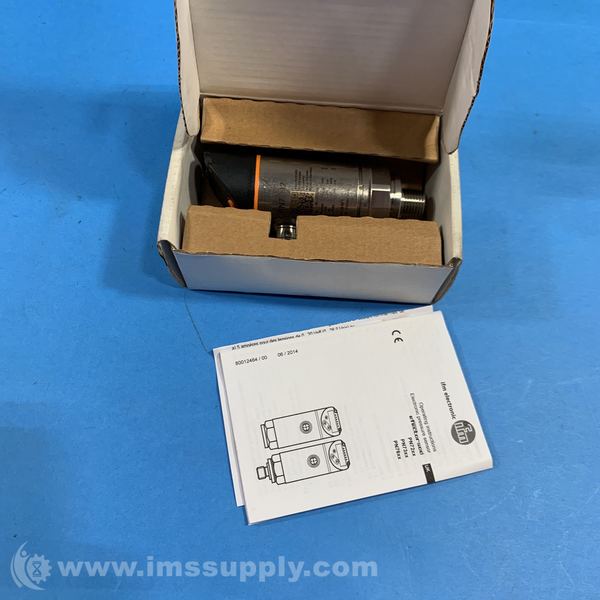

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 4 hours and 29 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 4 hours and 29 minutes.
