IKO MX20C1PS2 LINEAR ROLLER WAY
Quick Overview
Manufactured By: IKO LINEAR WAY
Manufacturer Part Number: MX20C1PS2
IMS Product Code: 2128962
Packaging: Sold Individually
Description:

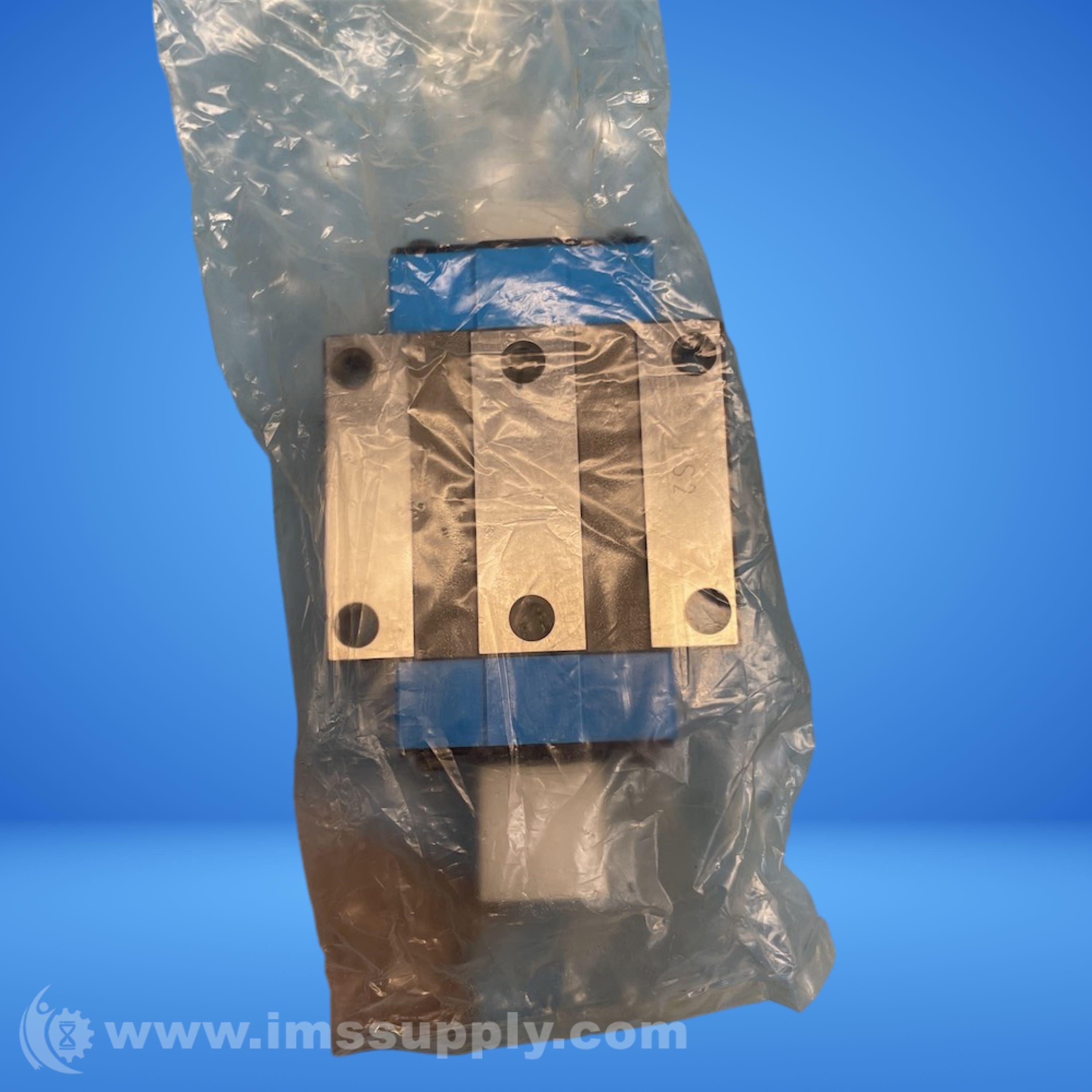

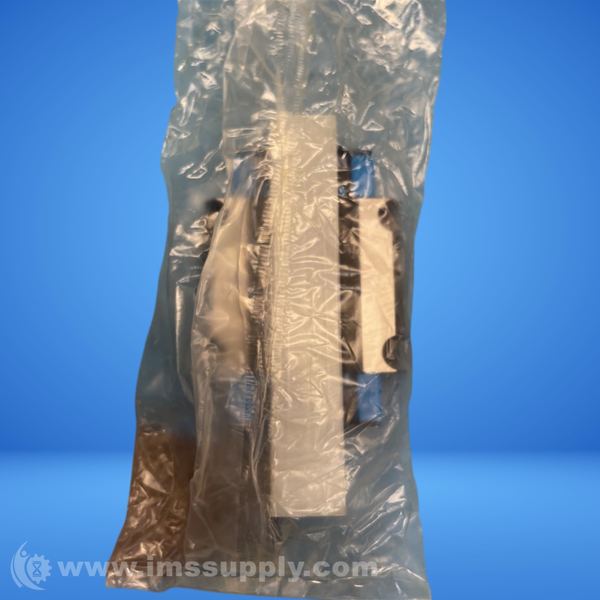

IKO MX20C1PS2 Linear Roller Way
C-Lube MX Series linear guide block for high-performance linear motion.
Specifications
- type: Linear Bearing
- model: MX20C1PS2
- assembly dimension h: 30mm
- assembly dimension h1: 5mm
- assembly dimension n: 21.5mm
- slide unit dimension w2: 63mm
- slide unit dimension w3: 26.5mm
- slide unit dimension w4: 5mm
- slide unit dimension l1: 86mm
- slide unit dimension l2: 40mm
- slide unit dimension l3: 51.6mm
- slide unit dimension l4: 94mm
- slide unit dimension d1: 6mm
- slide unit dimension m1: M6
- slide unit dimension h2: 10mm
- slide unit dimension h3: 4mm
- slide unit dimension h5: 3.5mm
- basic dynamic load rating: 23400 N
- basic static load rating: 42700 N
- static moment rating t0: 550 N-m
- static moment rating tx: 379 N-m
- static moment rating ty: 379 N-m
- static moment rating tx *: 2520 N-m
- static moment rating ty *: 2520 N-m
- preload amount: Standard
- accuracy class: Precision
- weight: 0.44 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
