IKO CF10VBUUR METRIC CAM FOLLOWER
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: CF10VBUUR
IMS Product Code: 1861940
Packaging: Sold Individually
Description:

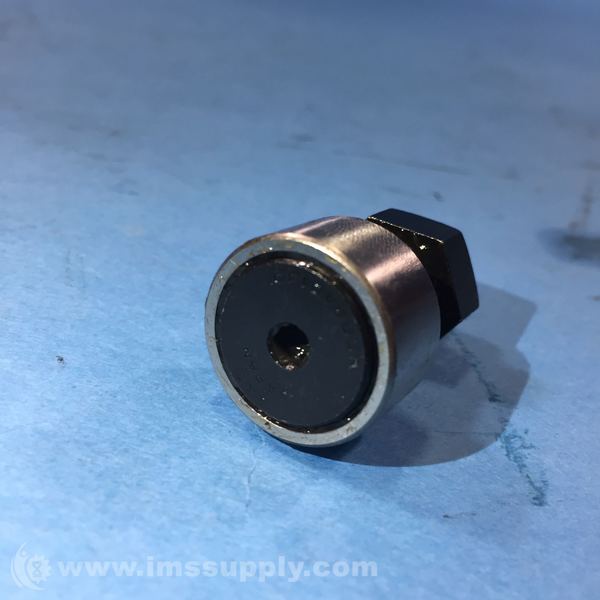

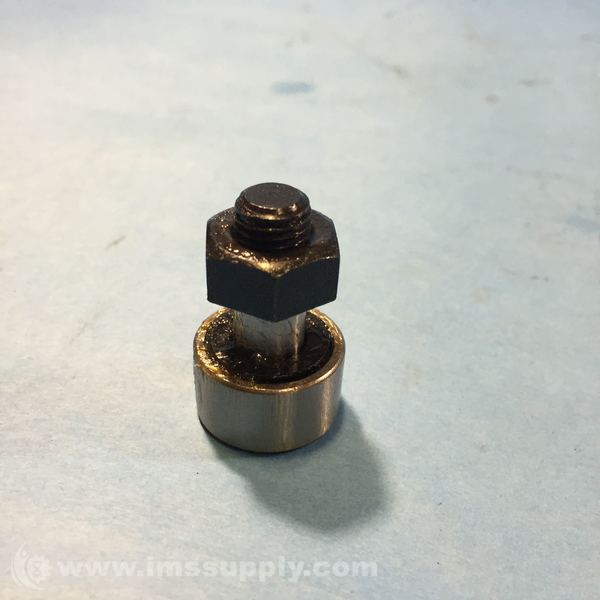

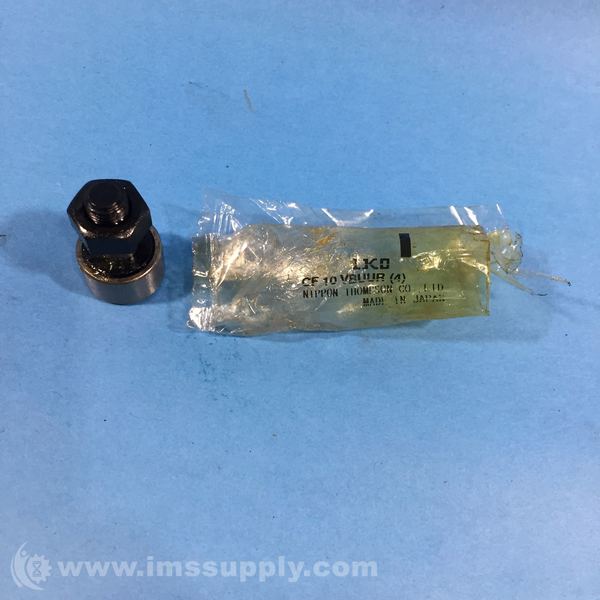

IKO CF10VBUUR Metric Cam Follower
Standard metric cam follower with full complement needle rollers, high carbon steel construction, crowned outer ring, sealed, and hex head.
Specifications
- Dynamic Load Capacity: 9570 N
- Enclosure: Sealed
- Head Type: Hex
- Material: High Carbon Steel
- Retainer: Full Complement
- Roller Diameter: 22
- Roller Surface Profile: Crowned Outer Ring
- Roller Width: 12 mm
- Series: CF-B Metric Series
- Static Load Capacity: 14500 N
- Stud Diameter: 10
- Temperature Rating: -20 to 120 deg C
- Thread: M10x1.25
- Thread Length: 12 mm
- Type: Standard Uncaged
- Width: 22mm
- Length: 36.2mm
- Head Height: 12mm
- Weight: 0.0500 KGS
- Head Diameter: 22mm
- Stud Length: 23mm
- Head Width: 12mm
- Side Plate Chamfer: 0.6mm
- Hex Hole Size: 4mm
- Mounting Dimension: 16mm
- Maximum Allowable Static Load: 8650N
- Track Capacity: 1610N
- Maximum Tightening Torque: 13.8Nm
- Operating Temperature Range: -20°C to +80°C
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 18 minutes.
