IKO NART25VUUR CROWNED ROLLER FOLLOWER
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: NART25VUUR
IMS Product Code: 1797903
Packaging: Sold Individually
Description:

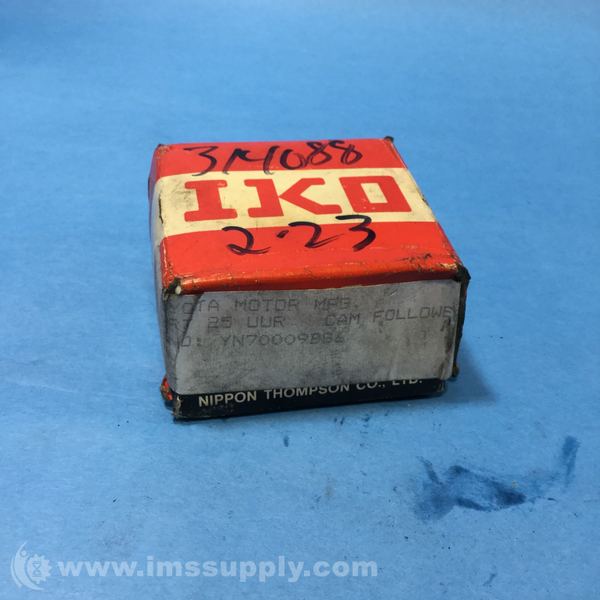

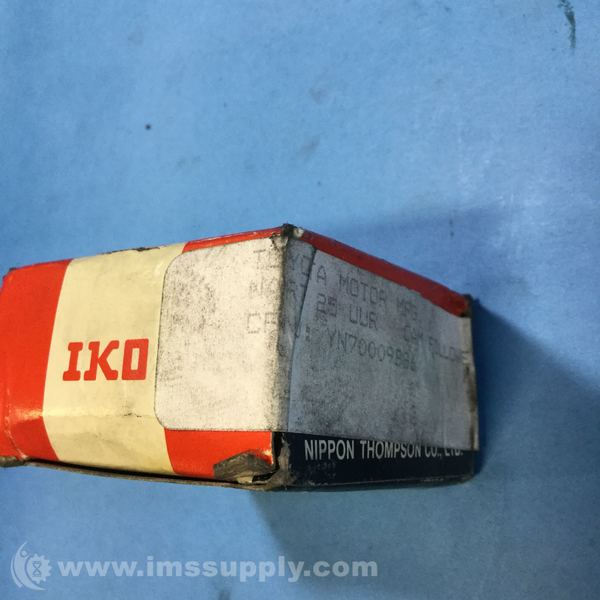

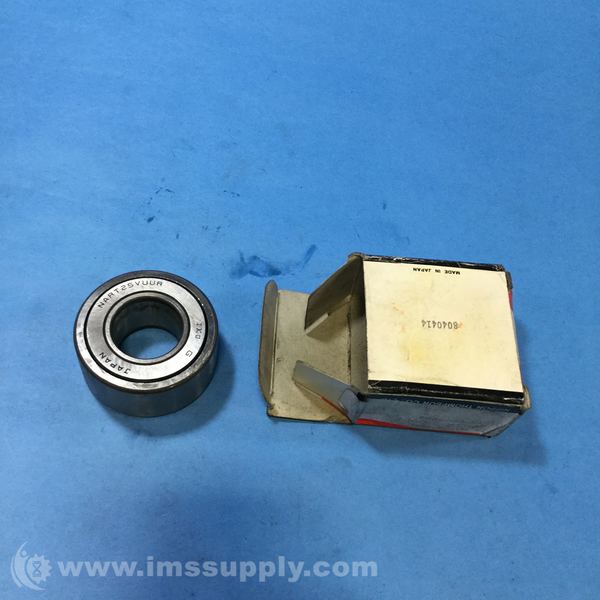

IKO NART25VUUR Crowned Roller Follower
Crowned roller follower bearing with needle rollers, sealed type, full complement, high carbon chrome steel material, 25 mm bore diameter, 52 mm outer diameter, 24 mm outer ring width, 25 mm width.
Specifications
- Roller Shape: Crowned
- Roller Diameter: 52 mm
- Bore Diameter: 25 mm
- Roller Width: 24 mm
- Bearing Element: Needle Rollers
- Bearing Material: High Carbon Chrome Steel
- Closure Type: Sealed
- Max Operating Temperature: 120 degrees C
- Operating Temperature Range: -20 degrees C to 120 degrees C
- Static Load Capacity: 79100 N
- Dynamic Load Capacity: 45500 N
- Precision Rating: JIS Class 0
- Series: NART Metric Series
- Type: Non-Separable Uncaged
- Outer Ring Surface Design: Crowned Outer Ring
- Seal Configuration: Sealed Type
- Net Weight: 295 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 16 hours and 15 minutes.
