IKO POS16A ROD END
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: POS16A
IMS Product Code: 1809785
Packaging: Sold Individually
Description:

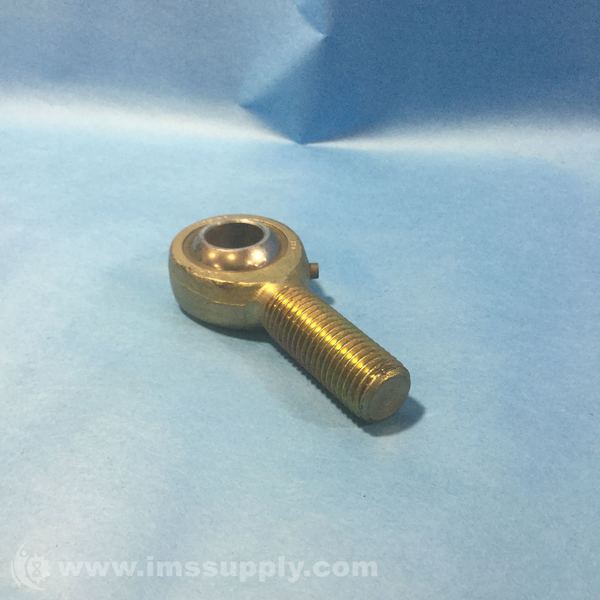

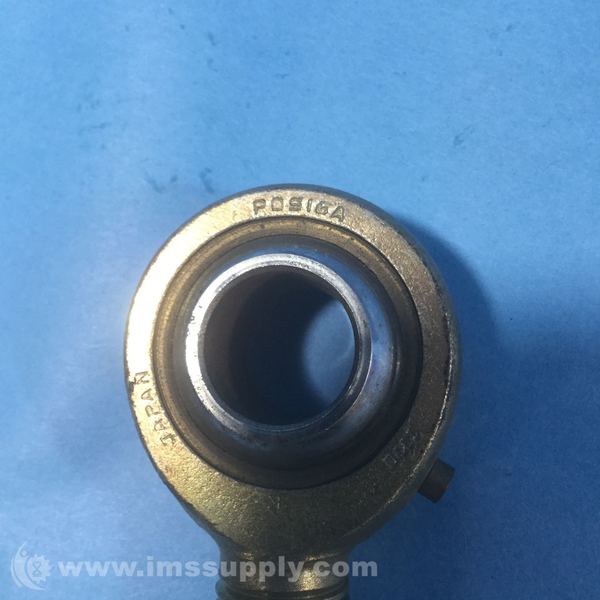

IKO POS16A Rod End
Spherical rod end with male right-hand thread, lubrication fitting, 16 mm bore diameter, 38 mm outside diameter, 21 mm width, M16x2 thread size, 21000 N dynamic load capacity, 25400 N static load capacity, zinc chromate plated finish.
Specifications
- Series: POS-A Metric Series
- Type: Lubrication Type
- Thread Type: Male
- Thread Direction: Right Hand
- Bore Diameter: 16 mm
- Outside Diameter: 38 mm
- Width: 21 mm
- Thread Size: M16 x 2
- Center Line Length: 66 mm
- Dynamic Load Capacity: 21000 N
- Static Load Capacity: 25400 N
- Operating Temperature Range: -20 to 180 degrees C
- Finish: Zinc Chromate Plated
- Contact Material: Steel on Bronze
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
