IKO ST203245UU STROKE ROTARY BUSHING
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: ST203245UU
IMS Product Code: 2125624
Packaging: Sold Individually
Description:

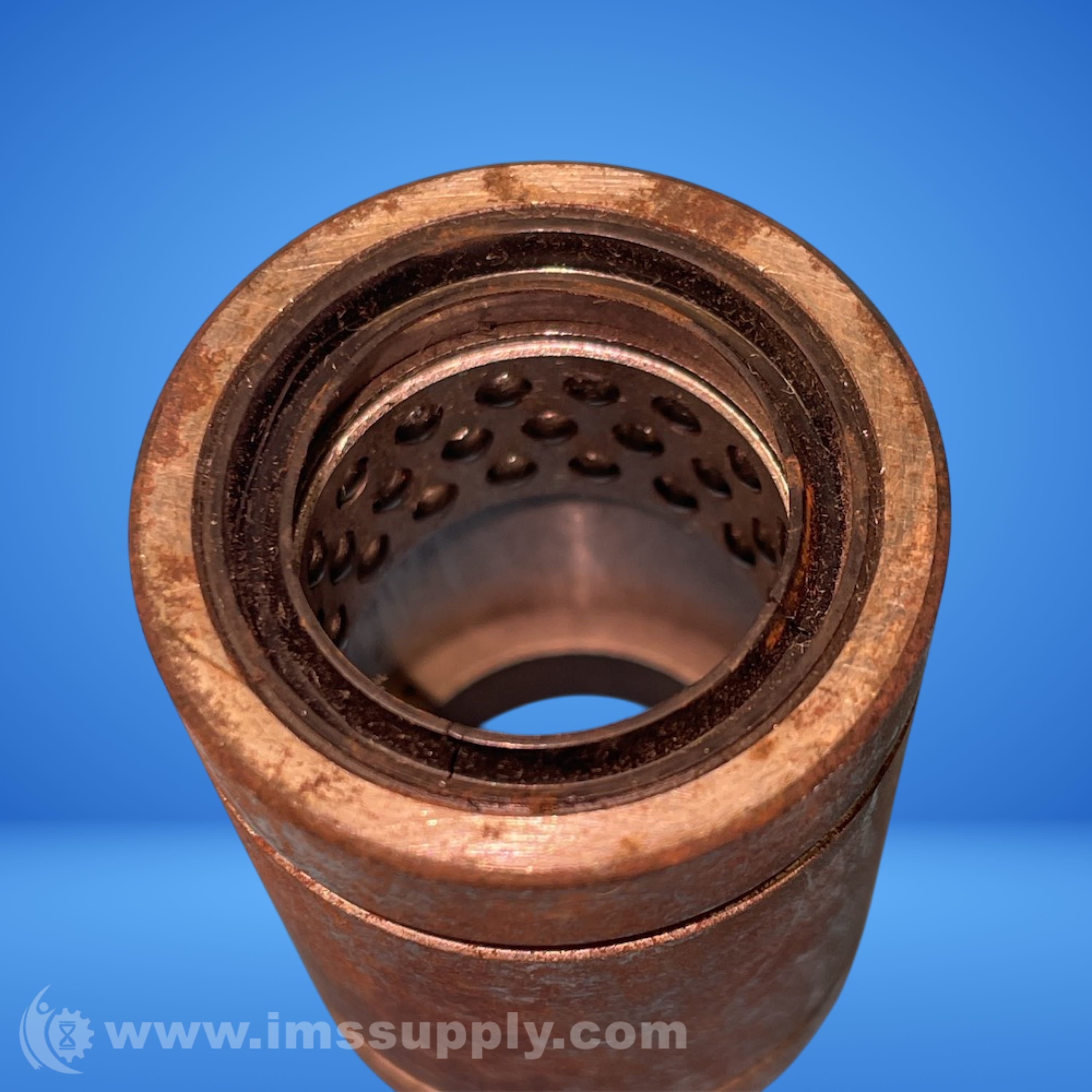

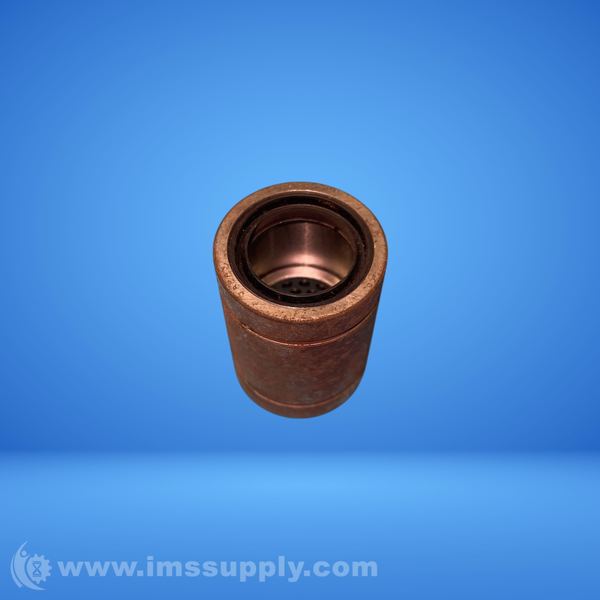

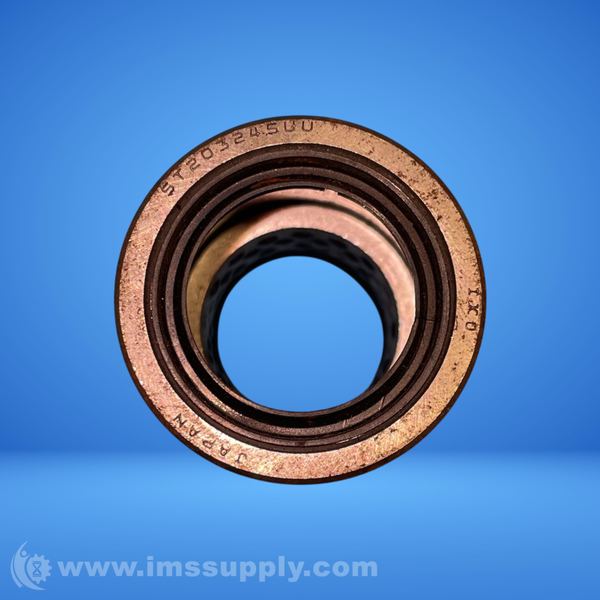

IKO ST203245UU Stroke Rotary Bushing
Rotary and linear motion bushing with steel balls in a retainer, assembled into an outer ring with a cylindrical raceway. Precision super-finished for minimal preload and smooth movement. Double sealed for dust protection.
Specifications
- Bushing Type: Ball Bushing
- Shaft Diameter: 20 mm
- Outside Diameter: 32 mm
- Overall Length: 45 mm
- Closure Type: Open
- Static Load Capacity: 1250 N
- Dynamic Load Capacity: 1390 N
- Series: ST
- Bearing Material: Steel
- Enclosure: Double Sealed
- Maximum Stroke Length: 32 mm
- Maximum Operating Temperature: +120°C
- Weight: 0.107 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
