ILME CDM 25 MALE INSERT
Quick Overview
Manufactured By: ILME
Manufacturer Part Number: CDM 25
IMS Product Code: 1752248
Packaging: Sold Individually
Description:

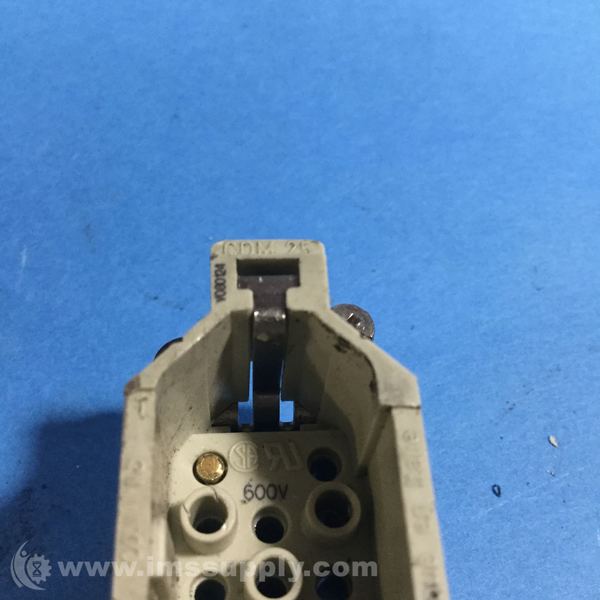

Ilme CDM 25 Male Insert
Male Rectangular Insert, CD series, crimp connection, 25 poles + PE, size 66.16
Specifications
- Series: CD
- Connection type: crimp connection
- Gender: Male
- N. of poles: 25 poles +
- Size: size 66.16
- Current: 10 A
- Voltage: 250 V
- Rated impulse withstand voltage: 4 kV
- Pollution degree: 3
- Rated voltage according to UL/CSA: 600 V
- IP degree of protection: IP20 without enclosure, IP65/IP66 with enclosure
- Mating cycles: = 500
- Insulation resistance: = 10 GO
- Contact resistance: = 3 mO
- Weight: 34,00 g
- Operating temperature range (min, max): -40 degrees C ... +125 degrees C
- Conductors stripping length: 6 - 8 mm
- UL 94 flammability rating: V-0
- Tightening torque for PE connection: M3,5: 0,8 Nm; 7,1 lb.in (Ph1 or 0,8 x 5,5 mm)
- Tightening torque for fixing screws: M3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8x4 mm)
- Main material: Polycarbonate (PC)
- Colour: RAL 7032 grey
- RoHs conformity: compliant
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
THIS ITEM IS MISSING THE HOUSING ON THE FEMALE SIDE.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
