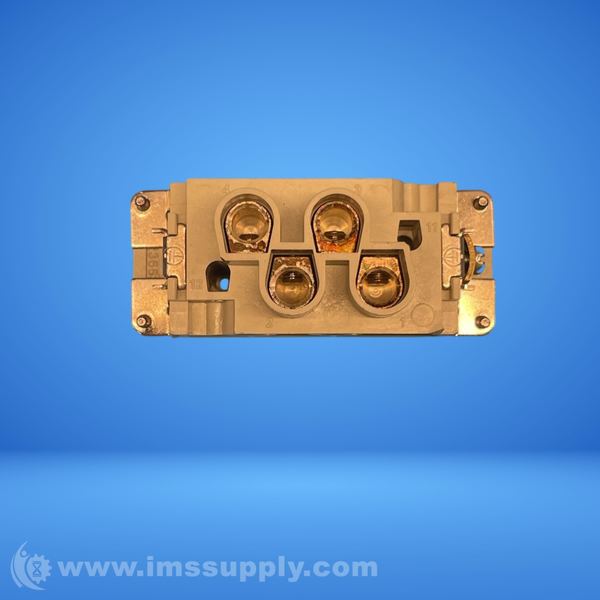

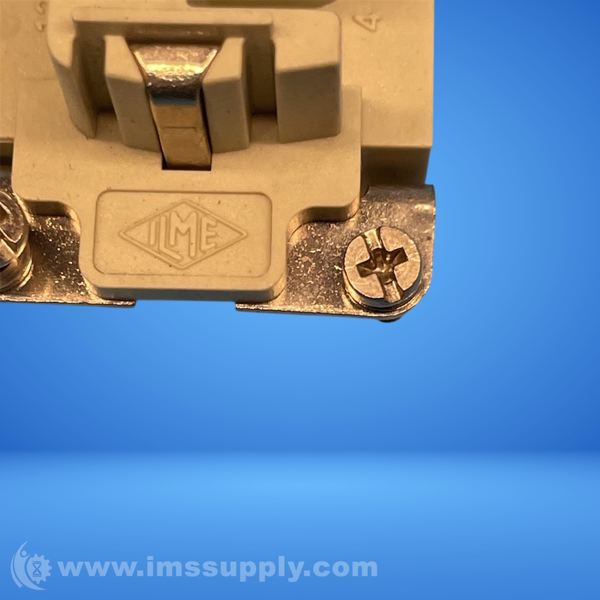

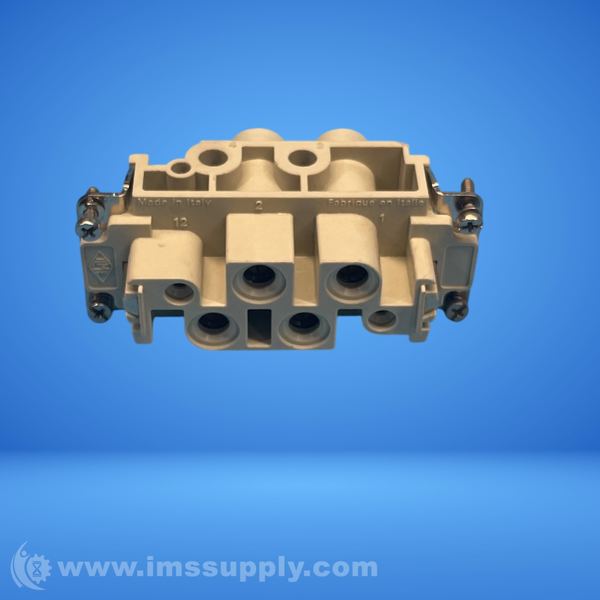

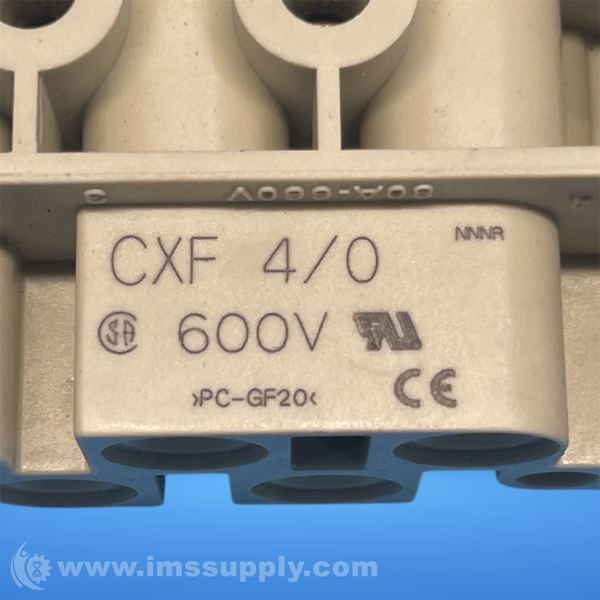

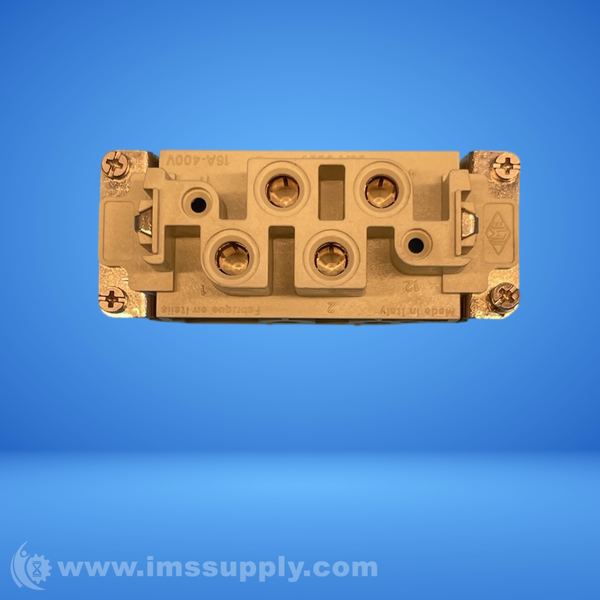

ILME CXF4/0 FEMALE INSERT, 4+GROUND, 80A
Quick Overview
Manufactured By: ILME
Manufacturer Part Number: CXF4/0
IMS Product Code: 826619
Packaging: Sold Individually
Description:
Ilme CXF4/0 Female Insert, 4+Ground, 80A
Female insert for heavy-duty connectors, 4+Ground contacts, 80A rated current, screw termination.
Specifications
- Manufacturer: Ilme
- Part Number: CXF4/0
- Product Range: CX
- No. of Contacts: 4 + Ground
- Gender: Female/Receptacle
- Current Rating: 80A
- Heavy Duty Connector Type: Insert
- Contact Type: Screw Socket
- Housing: Thermoplastic
- Contacts: Silver Plated
- Rated Voltage: 600/690V
- Operating Temperature: -40C to 125C
- Termination: Screw
- Upper AWG: 6
- Lower AWG: 12
- Insulation Resistance: >= 10GOhm
- Mechanical Life: >= 500 Cycles
- Contact Resistance: <= 0.3mOhm
- Ingress Protection: IP20
- Approvals: UL, CSA, CCC, GL, GOST
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
