ILSCO SPA-350 ALUMINUM SPLICER
Quick Overview
Manufactured By: ILSCO
Manufacturer Part Number: SPA-350
IMS Product Code: 827407
Packaging: Sold Individually
Description:

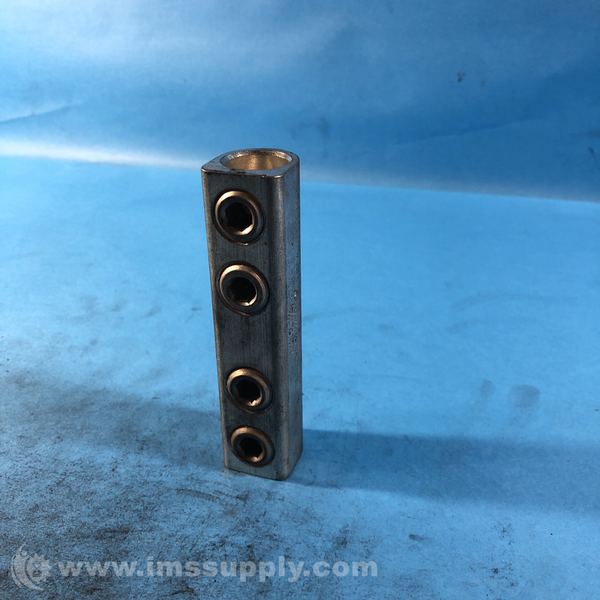

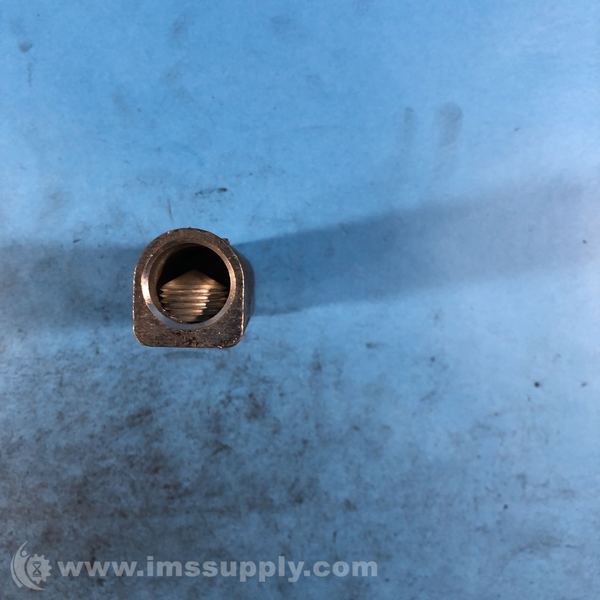

Ilsco SPA-350 Aluminum Splicer
Aluminum splicer/reducer for 350-10 AWG conductors, dual rated, tin plated, UL and CSA certified.
Specifications
- Material: Aluminum
- Conductor Type: Aluminum/Copper
- Allowable Gauge Range: 8 - 350
- Number of Screws: 2
- Temperature Rating: 90 degrees C
- Type: Dual Rated
- Voltage Rating: 2000 VAC
- Standards: LR-29601 CSA Certified, UL 453G, UL 486A-B, UL 486A-B, UL E6207 Listed
- Dimensions: 2.468 in L x 1 in W x 1.25 in H
- Conductor Size: 350 kcmil to 10 AWG
- Finish: Electro-Tin Plated
- Series: SPA
- Hex Size: 5/16 in
- Screw Diameter: 11/16 in
- Length: 2-5/32 Inch
- Width: 1 Inch
- Height: 1-1/4 Inch
- Min. Conductor Size: 10 AWG
- Max. Conductor Size: 350 kcmil
- Body Material: Electro Tin Plated 6061-T6 Aluminum Alloy
- Net Weight: 0.195 lbs
- Connection Type: Mechanical
- Wire Size Range: 10 AWG-350 kcmil
- Type: In-Line
- Insulation Type: Non-Insulated
