INA 3307J DOUBLE ROW BALL BEARING, 35 MM ID X 80 MM OD X 1 3/8 IN

MSRP: $80.07
Starting At: $30.00

Quick Overview

Manufactured By: INA
Manufacturer Part Number: 3307J
IMS Product Code: 1809447
Packaging: Sold Individually

Description:

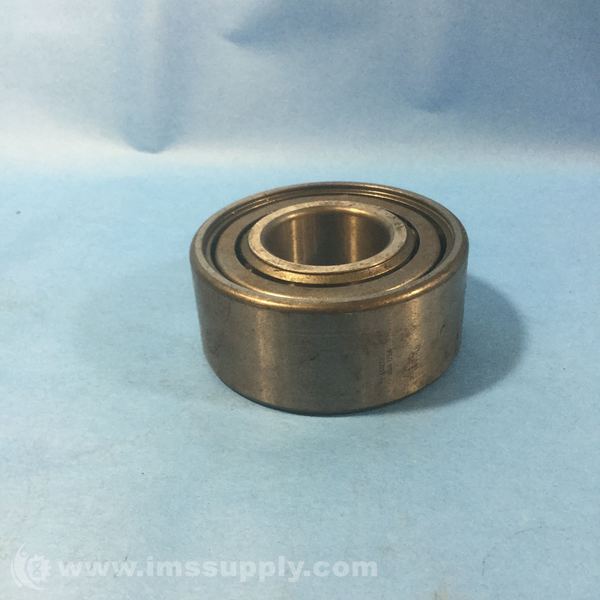

Ina 3307J Double Row Ball Bearing, 35 mm ID x 80 mm OD x 1 3/8 in

Specifications:

  • Temperature Range [MAX]: 250 °F
  • Bore Type: Round Bore
  • Cage Material: Steel
  • Locking Device: No Locking Device
  • O.D. Type: Straight
  • Material: Steel
  • Seal Type: Unsealed
  • Inch/Metric: Metric Bore
  • I.D.: 35 mm
  • Cage Type: Metal
  • Radial Internal Clearance Specification: Greater Than Normal Clearance Normal Clearance
  • Capacity: Standard Capacity
  • Static Load Rating [MAX]: 7100 lbf
  • Lubricant: Oil Preservative
  • Bearing Type: Angular Contact
  • Precision Level: Standard (ABEC 1)
  • Rows of Balls: Double
  • icNumber: 7696048
  • Contact Angle: 25°
  • Origin: Double Row Deep Groove
  • Width: 34.925 mm
  • Enclosure: Open
  • Radial Internal Clearance: C3
  • Precision: Standard
  • No. in Set: Single Bearing
  • Limiting Speed - Grease: 5100 rpm
  • Preload Level: None
  • O.D.: 80 mm
  • Seal Material: None
  • Snap Ring: No Snap Ring
  • Inner Ring Width: 1 3/8 in
  • Ball Material: Steel
  • Outer Ring Width: 1 3/8 in
  • Dynamic Load Rating: 10000 lbf
  • Weight: 1.98 LB

Used:
A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 1 In Stock

Ships today if ordered in the next 7 hours and 17 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Ina. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
