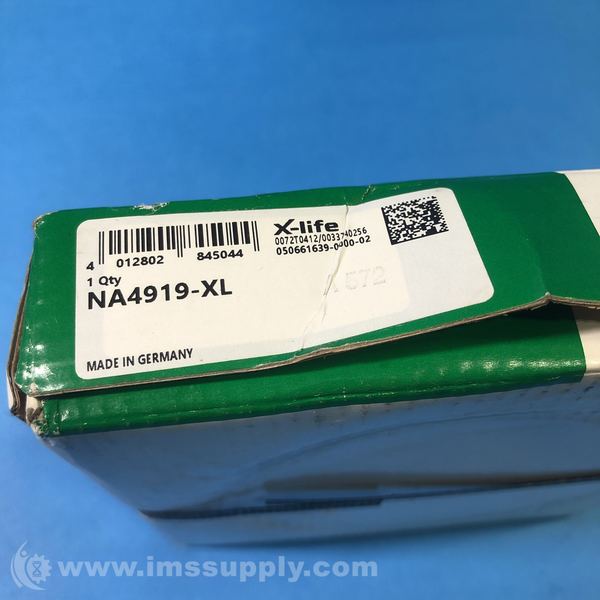

INA NA4919-XL NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: INA
Manufacturer Part Number: NA4919-XL
IMS Product Code: 1925062
Packaging: Sold Individually
Description:
INA NA4919-XL Needle Roller Bearing
Open type, single row machined needle roller bearing with inner ring. Inner ring separable from cage and outer ring. Outer ring fixed to cage with lubrication groove and oil hole.
Specifications
- Bore Diameter: 95 mm
- Outside Diameter: 130 mm
- Width: 35 mm
- Cage Material: Steel
- Closure Type: Open
- Dynamic Load Rating: 131 kN
- Static Load Rating: 260 kN
- Fatigue Load Rating: 45 kN
- Maximum Speed: 4200 rpm
- Series: NA49
- Weight: 1.36 kg
- Minimum Chamfer Dimension: 1.1 mm
- Axial Displacement: 1 mm
- Raceway Diameter Inner Ring: 110 mm
- Reference Speed: 2400 rpm
- Limiting Speed: 4200 rpm
- Internal Clearance: CN
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
