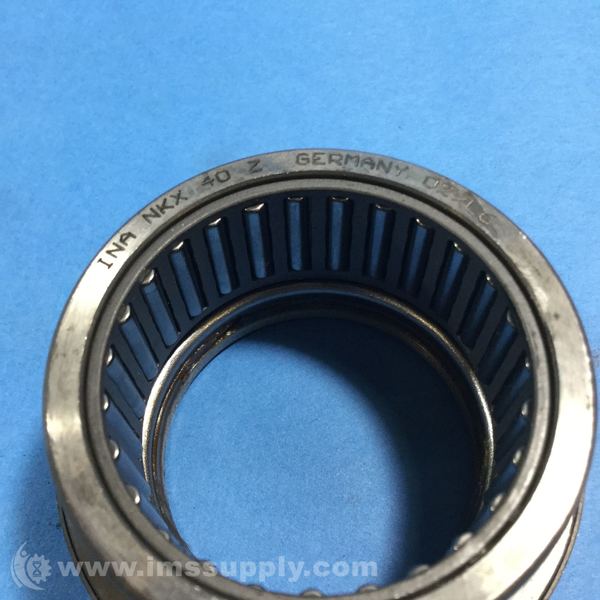

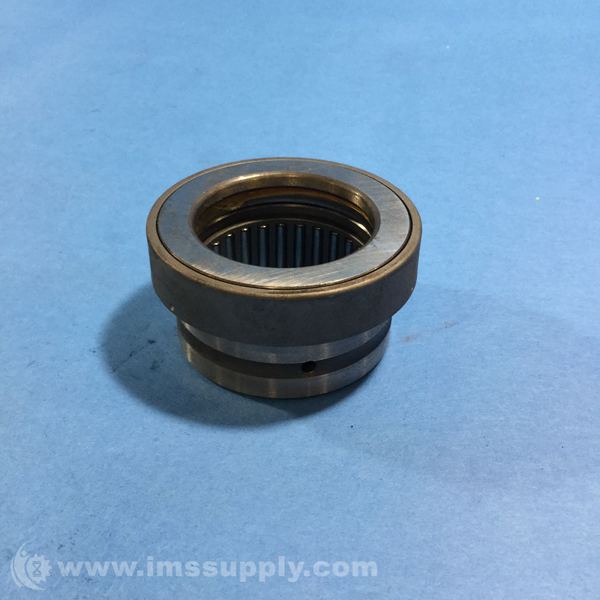

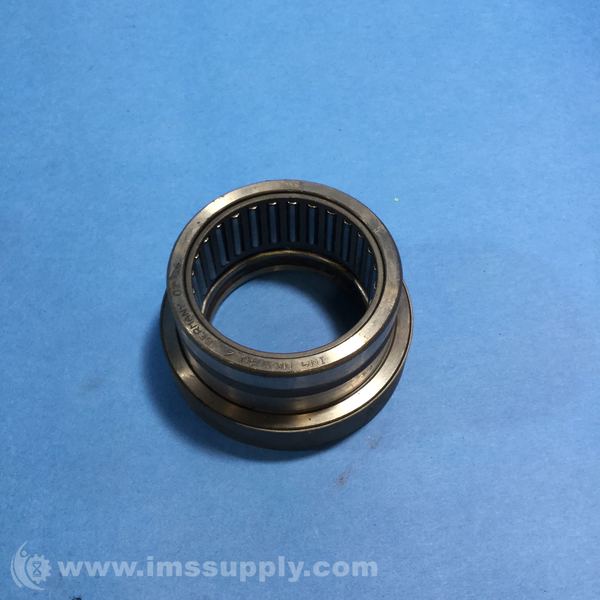

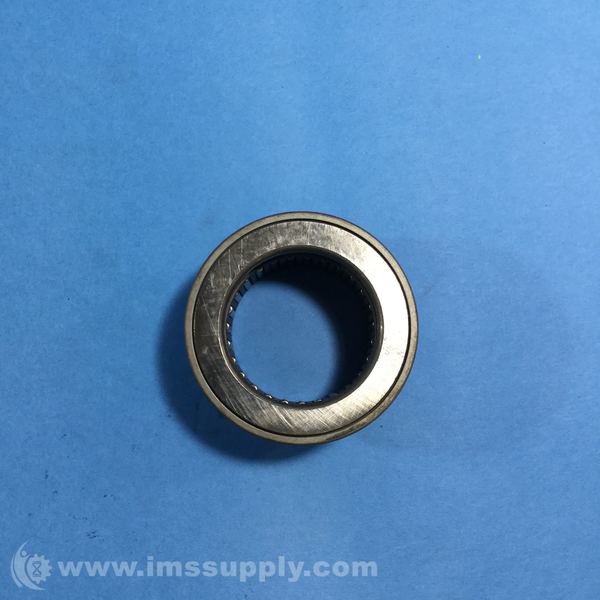

INA NKX40Z COMBINATION ROLLER BEARING, NEEDLE ROLLER/THRUST BALL

MSRP: $224.76
Starting At: $25.00

Quick Overview

Manufactured By: INA
Manufacturer Part Number: NKX40Z
IMS Product Code: 828740
Packaging: Sold Individually

Description:

INA NKX40Z Combination Roller Bearing, Needle Roller/Thrust Ball, 40 mm Bore, 2-3/8 in OD, 32 mm Width

Specifications:

  • Bore diameter: 40 mm
  • Axial static load capacity: 14200 lbf
  • Outside diameter: 2-3/8 in
  • Maximum rpm: 4000 RPM
  • Overall width: 32 mm
  • Closure type: Single Shield
  • Bearing type: Needle Roller/Thrust Ball
  • Radial bearing outside diameter: 52 mm
  • Operating temperature range: -20 to +120 °C
  • Fillet radius: 0.6 mm
  • Radial dynamic load capacity: 5800 lbf
  • Lubrication type: Grease
  • Radial static load capacity: 10600 lbf
  • Cage material: Steel
  • Axial dynamic load capacity: 6100 lbf
  • Series: NKX




New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.

Availability: 1 In Stock

Ships today if ordered in the next 9 hours and 5 minutes.
