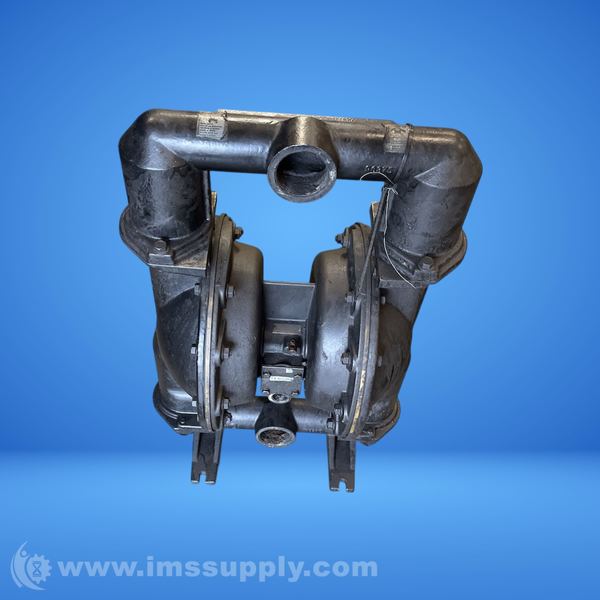

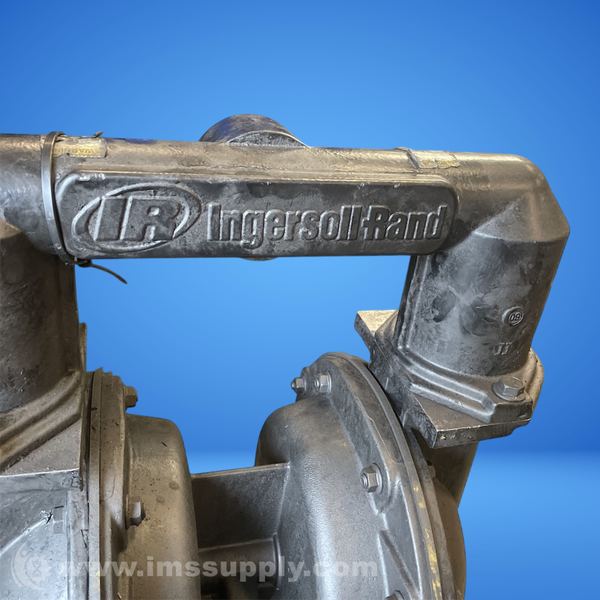

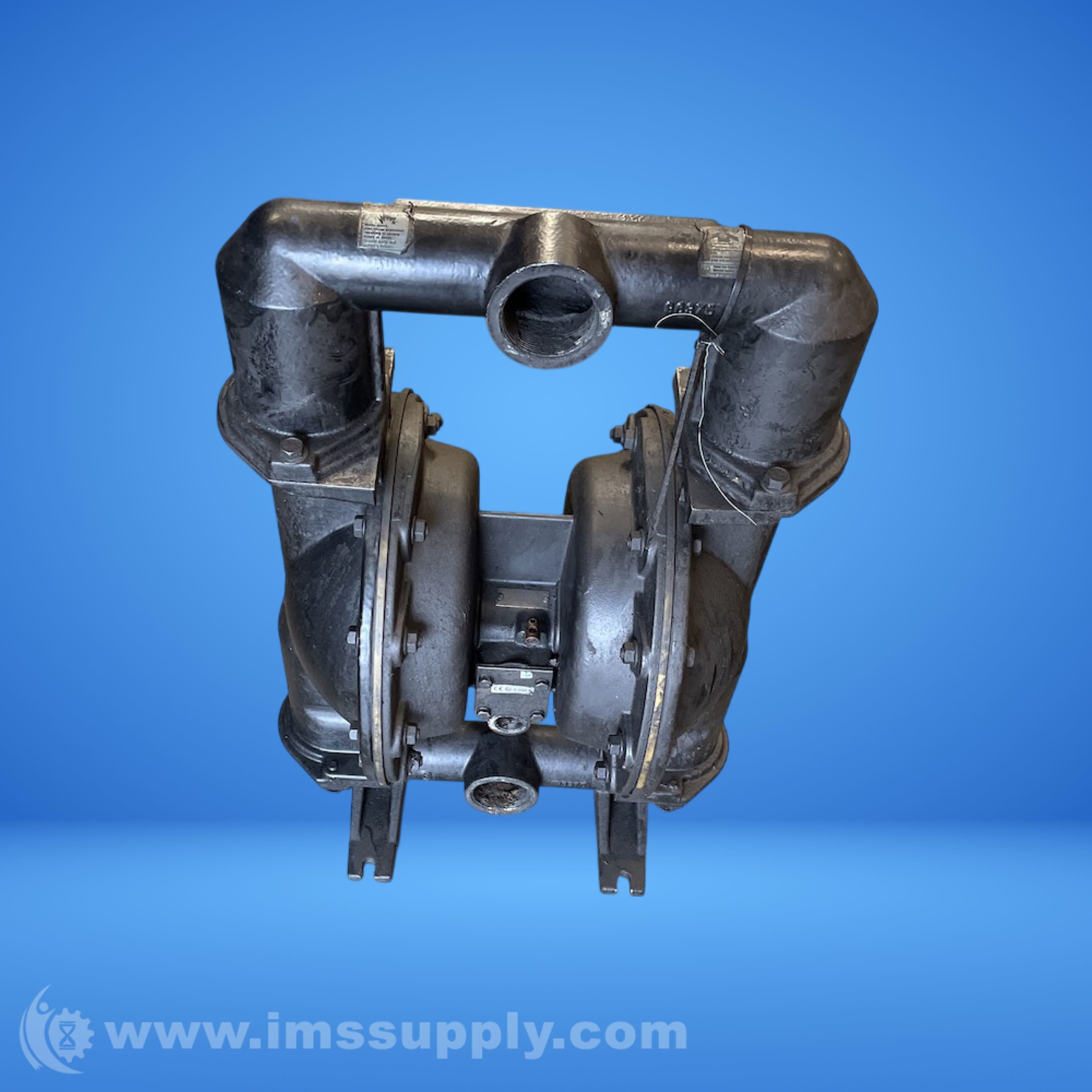

INGERSOLL RAND 666250-EEB-C 2" METALLIC AIR OPERATED DIAPHRAGM PUMP
Quick Overview
Manufactured By: INGERSOLL RAND

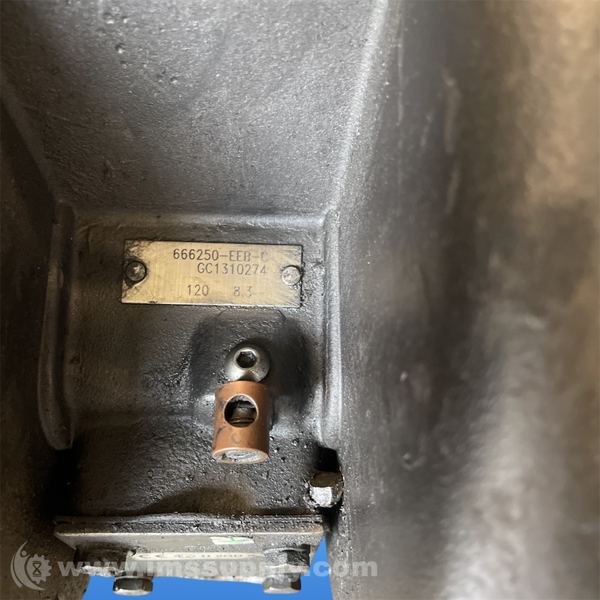

Manufacturer Part Number: 666250-EEB-C
IMS Product Code: 2146773
Packaging: Sold Individually
Description:
Ingersoll Rand 666250-EEB-C 2" Metallic Air Operated Diaphragm Pump
Aluminum center body, aluminum fluid caps & manifold, carbon steel hardware. 172 GPM maximum flow rate, Santoprene seats, balls & diaphragm, 2 - 11-1/2 NPTF - 1 connection. An Ingersoll Rand Business.
Specifications
- Air Inlet: 3/4 - 14 NPTF - 2
- Application: Marine Pump/Equipment
- Average Displacement: 1.4 gal
- Ball Material: Santoprene
- Body Material: Aluminum
- Center Section Material: Aluminum
- Check Seat Material: Santoprene
- Connection Size: 2"
- Connection Type: 2 - 11-1/2 NPTF - 1
- Diaphragm Material: Santoprene
- Displacement Per Cycle: 1.4 Gal (5.3 Lit)
- Fluid Discharge Connection: 2 in NPTF
- Fluid Intake Connection: 2 in NPTF
- Hardware Material: Carbon Steel
- Height: 26-3/8 in
- Inlet Outlet Port Sizes: 2 in
- Inlet Outlet Port Type: NPT
- Inlet Pressure (PSI): 120 psig (8.3 bar)
- Length: 22-3/4 in
- Liquid End Configuration: Aluminum Fluid Caps & Manifold
- Manifold Connection: Single Port
- Manifold Connection Type: NPT
- Material: Aluminum Center Body
- Material - Balls: Santoprene
- Material - Diaphragm: Santoprene
- Material - Housing: Aluminum
- Material - Seats: Santoprene
- Max Air Inlet Pressure: 120 psi (8.3 bar)
- Max Dry Suction Lift: 27.2 Feet (8.3m)
- Max Flow: 172 gpm (651.1 lpm)
- Max Fluid Pressure: 120 psi (8.3 bar)
- Max Operating Pressure (PSI): 120
- Max Operating Pressure (bar): 8.3
- Max Solids: 1/4 in Dia.
- Max Suction Lift: 27.2 Feet (8.3m)
- Max Temperature: 350°F (176.7°C)
- Maximum Flow Rate: 172 gpm
- Maximum Solid Size: 0.25 in
- Maximum Working Pressure (PSIG): 120 psi (8.3 bar)
- Model Series: 2” Metallic Pro Series
- Noise Level: 85.3 dB(A)
- Overall Height: 26.4 in
- Overall Length: 17.9 in
- Overall Width: 22.8 in
- Pump Assembly Type: Bolt
- Pump Type: Metallic
- Ratio: 1:1
- Seat Material: Santoprene
- Solids Handling: 1/4 in
- Sound Level: 85.3
- Suction Lift: Dry - 27.20 ft
- Temperature Range: -40° to 225° F (-40° to 107° C)
- Type: Diaphragm Pump
- Type Design: Metallic Bolted
- Valve Balls: Santoprene
- Valve / Seat / O-Ring: Santoprene
- Weight: 65 lbs
- Wetted Materials: Aluminum
