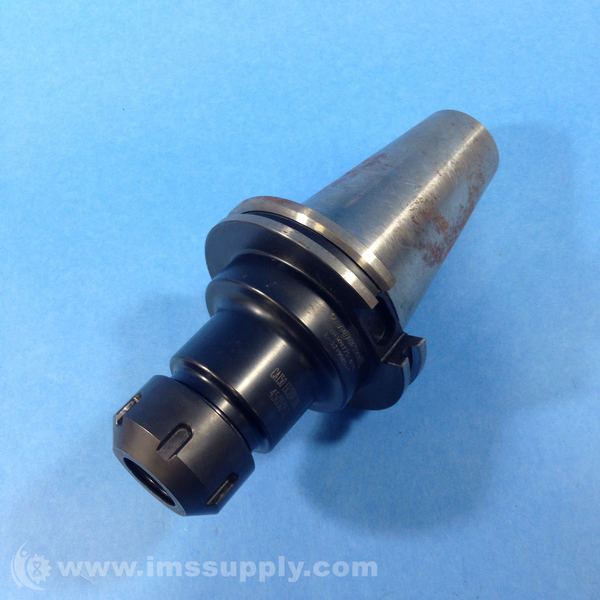

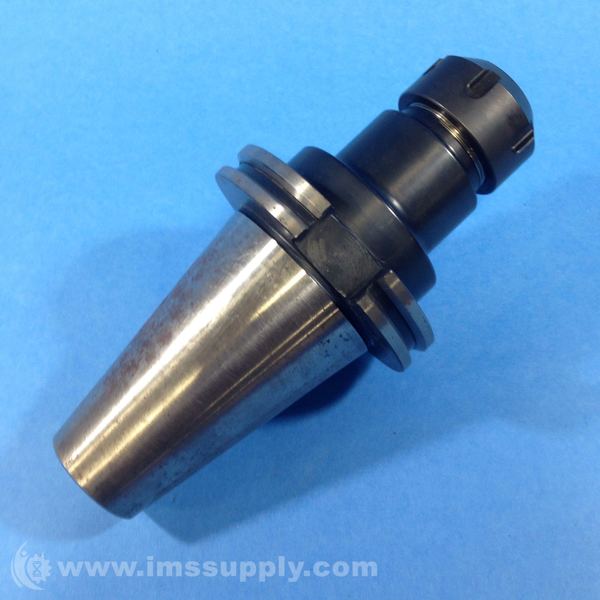

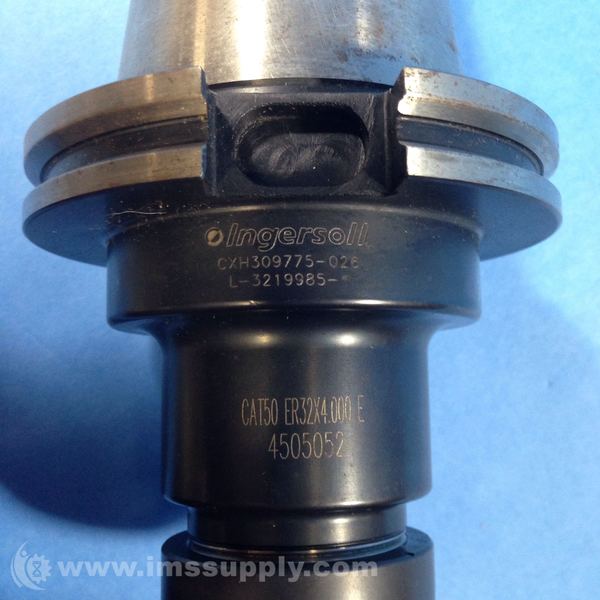

INGERSOLL CAT50ER32X4.000 CAT V-FLANGE ER COLLET CHUCK

Call For Quote

Quick Overview

Manufactured By: INGERSOLL
Manufacturer Part Number: CAT50ER32X4.000
IMS Product Code: 1734717
Packaging: Sold Individually

Description:

Ingersoll CAT50ER32X4.000 CAT V-Flange ER Collet Chuck

Specifications:

  • EDP: 4503007
  • Cutter Number: CAT50ER32X4.000B
  • Range: .080-.789
  • L Gauge Length: 4.000
  • L1 Effective Clearance Length: 3.250
  • L2 Body Length: 2.540
  • D Retention Nut Diameter: 1.968
  • D1 Housing Diameter: 2.752
  • J Preset Screw: M22X1.5
  • G Retention Knob: 1-8

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Ingersoll. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
