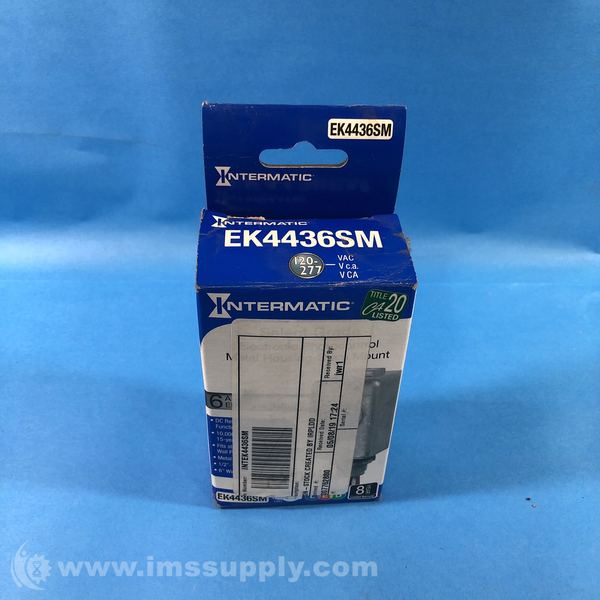

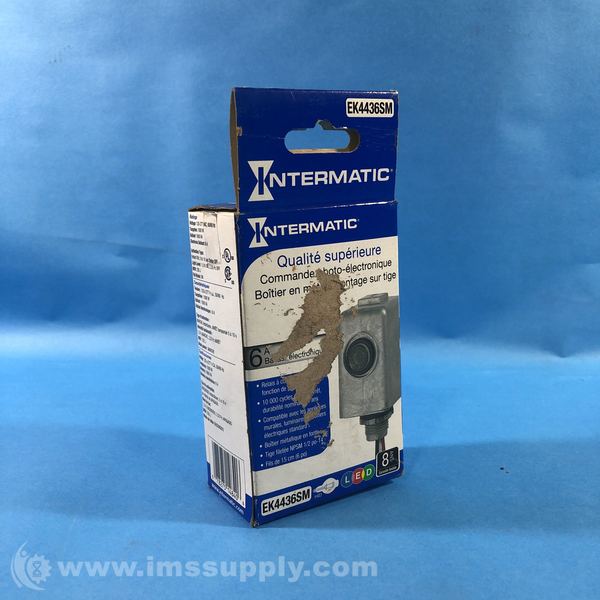

INTERMATIC EK4436SM ELECTRONIC PHOTOCELL
Quick Overview
Manufactured By: INTERMATIC
Manufacturer Part Number: EK4436SM
IMS Product Code: 1936979
Packaging: Sold Individually
Description:
Intermatic EK4436SM Electronic Photocell
Stem-mounted electronic photo control for dusk-to-dawn outdoor lighting control. Die-cast zinc enclosure with 18 AWG color-coded leads.

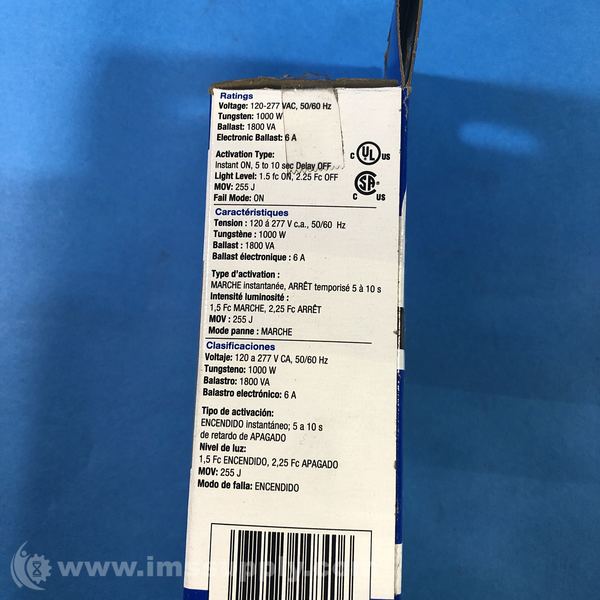

Specifications
- Voltage: 120-277 VAC
- Frequency Rating: 50/60 Hz
- Tungsten Rating: 1000 W
- Ballast Load: 1800 VA
- Electronic Ballast: 6 A
- Activation Type: Instant ON, 5 to 10 sec Delay OFF
- Light Level: 1.5 fc ON, 2.25 fc OFF
- MOV: 255 J
- Fail Mode: ON
- Mounting Type: Stem Fixed Mount
- Enclosure Material: Die-Cast Zinc
- Dimensions: 1.75 in W x 2.25 in D x 3.38 in H
- Lead Length: 15 in
- Lead Gauge: 18 AWG
- Operating Temperature: -40°F to 158°F
- Operating Cycles: 10,000
- Standard: ANSI C136.24
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
