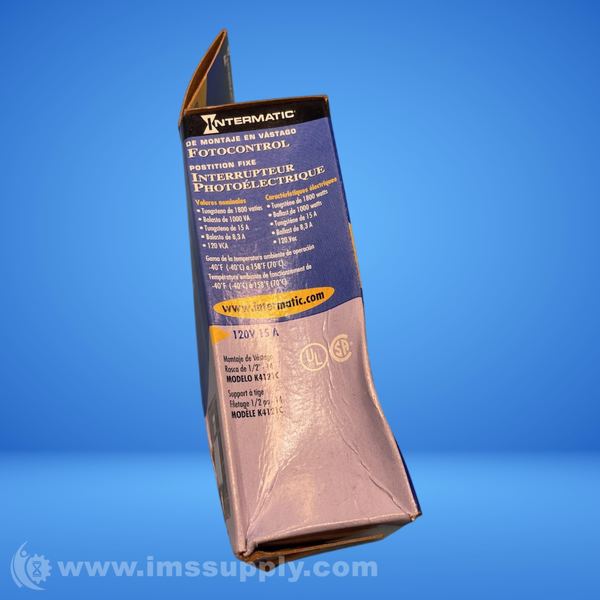

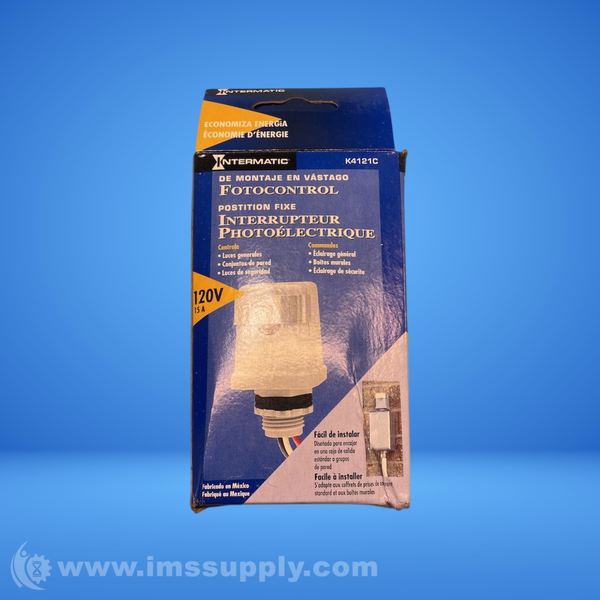

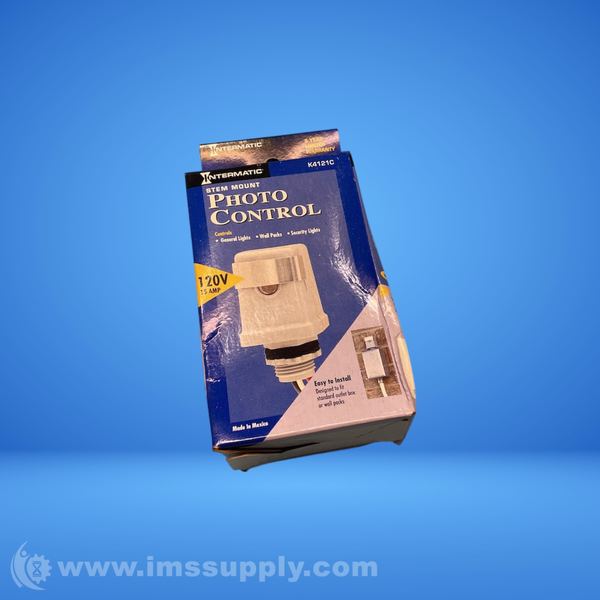

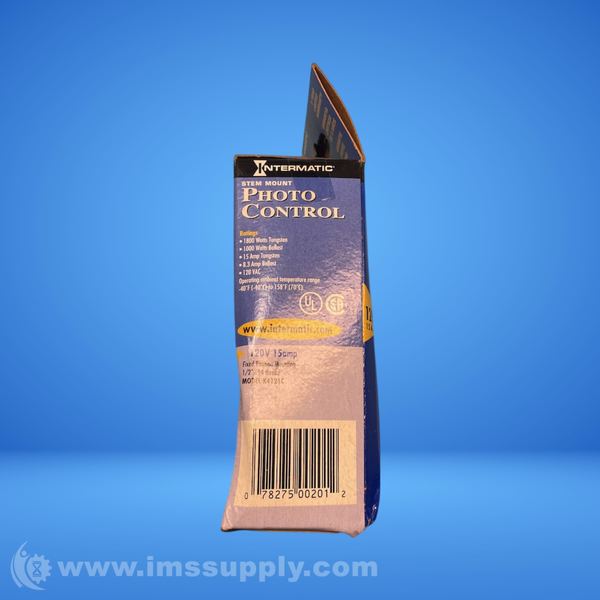

INTERMATIC K4121C STEM MOUNT THERMAL PHOTOCONTROL
Quick Overview
Manufactured By: INTERMATIC
Manufacturer Part Number: K4121C
IMS Product Code: 2043073
Packaging: Sold Individually
Description:
Intermatic K4121C Stem Mount Thermal Photocontrol
Mechanical bimetal switch with Cadmium Sulfide photocell. Delay feature prevents unwanted OFF switching. Gray plastic housing. 1/2"-14 NPSM threaded stem. Washer gasket and locking nut included. #18 AWG, 9" wire leads.
Specifications
- Photocontrol Style: Stem
- Voltage: 120 V
- Mounting: 1/2" Stem
- Operating Temperature: -40°F to 158°F
- Load Ballast: 1000 VA
- Load Tungsten: 1800 W
- Connection: 9-inch Wires
- Housing Material: Polycarbonate
- Type: Thermal
- Series: K4100
- Voltage Rating: 120 VAC, 50/60 Hz
- Amperage Rating: 8.3 A Ballast, 15 A Tungsten
- Tungsten Rating: 1800 W
- Ballast Load: 1000 VA
- Timing Range: Dusk On - Dawn Off
- Sensor Type: Cadmium Sulfide
- Sensitivity: 1-5 FC On, 3-15 FC Off
- Enclosure Type: Plastic Outdoor
- Temperature Range: -40 to 158 deg F
- Operating Cycles: 3.65K
- Mounting Type: 1/2 - 14 Threaded Stem
- Material: Polycarbonate
- Color: Gray With White Band
- Dimensions: 3 Inch L x 1.5625 Inch W x 1.5625 Inch D
- Includes: Washer Gasket and Locking Nut
- UL: Yes
- Approval: UL, CSA (Canada and US)
- Cover Color: Gray
- Sensor Time Delay: 30 to 90 Second
- Photocell Type: Cadmium Sulfide
