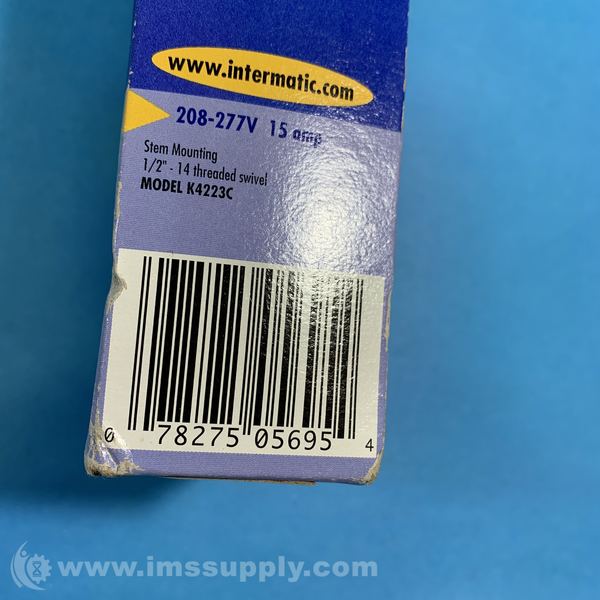

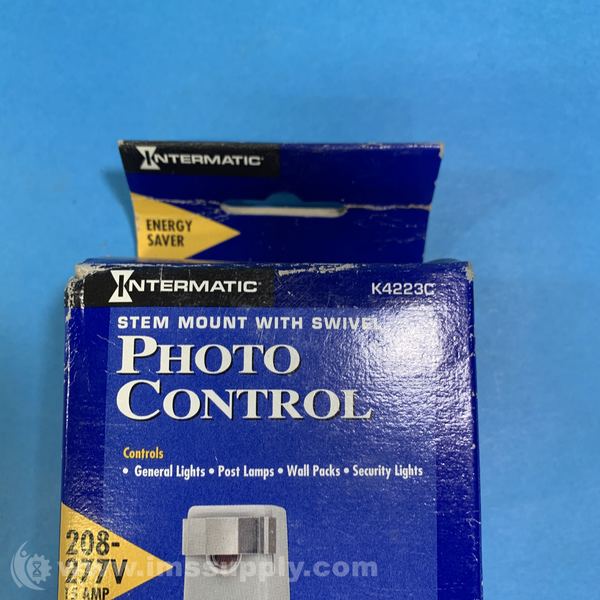

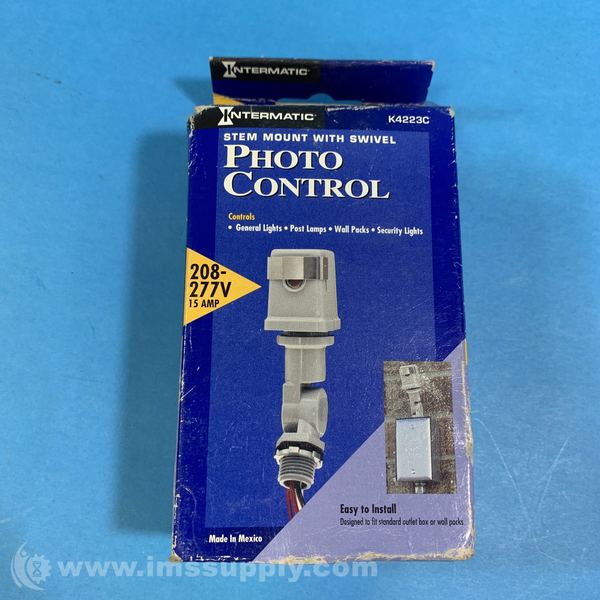

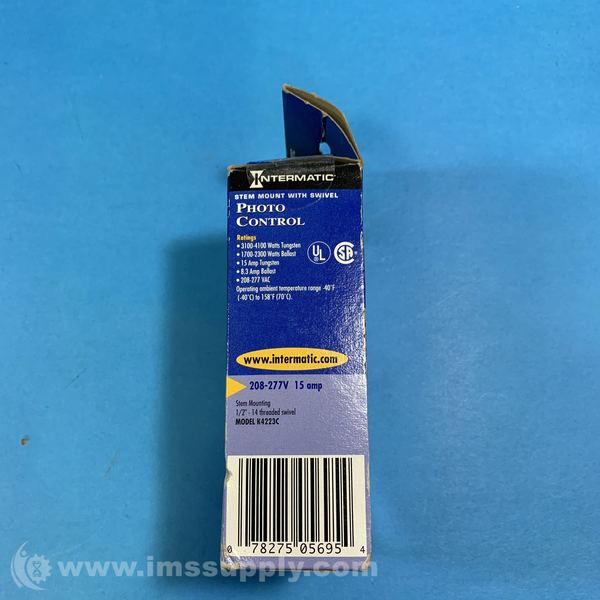

INTERMATIC K4223C STEM MOUNT PHOTOCONTROL
Quick Overview
Manufactured By: INTERMATIC
Manufacturer Part Number: K4223C
IMS Product Code: 1907386
Packaging: Sold Individually
Description:
Intermatic K4223C Stem Mount Photocontrol
Stem-mounted photocell with adjustable position for optimal sunlight capture, SPST contact configuration, operates between 208-277V AC, with 8.3A ballast current rating and 15A tungsten rating, includes lock nut, washer, and gasket, made of polycarbonate material, gray in color, for outdoor use.
Specifications
- Applicable AC Voltage Ranges: 208-277V AC
- Ballast Current - Maximum: 8.3 A
- Contact Form: SPST
- Housing Color: Gray
- Housing Material: Polycarbonate
- Incandescent Current - Maximum: 15 A
- Mounting Style: Stem and Swivel
- Off Illumination - Maximum: 15 fc
- Off Illumination - Minimum: 3 fc
- On Illumination - Maximum: 5 fc
- On Illumination - Minimum: 1 fc
- Operating Temperature - Maximum: 158 degrees F
- Operating Temperature - Minimum: -40 degrees F
- Overall Depth: 1.56 in
- Overall Height: 5 in
- Overall Width: 1.56 in
- Resistance Properties: UV Resistant
- Stem Diameter: 1/2 in
- Stem Thread Size: 1/2-14
- Stem Thread Type: NPSM
- Time Delay - Maximum: 90 sec
- Time Delay - Minimum: 30 sec
- Tungsten Rating: 3100 - 4150 W
- Ballast Load: 1700 - 2300 VA
- Frequency Rating: 50/60 Hz
- Sensitivity: 1 to 5 fc Turn On/3 to 15 fc Turn Off
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 15 minutes.
