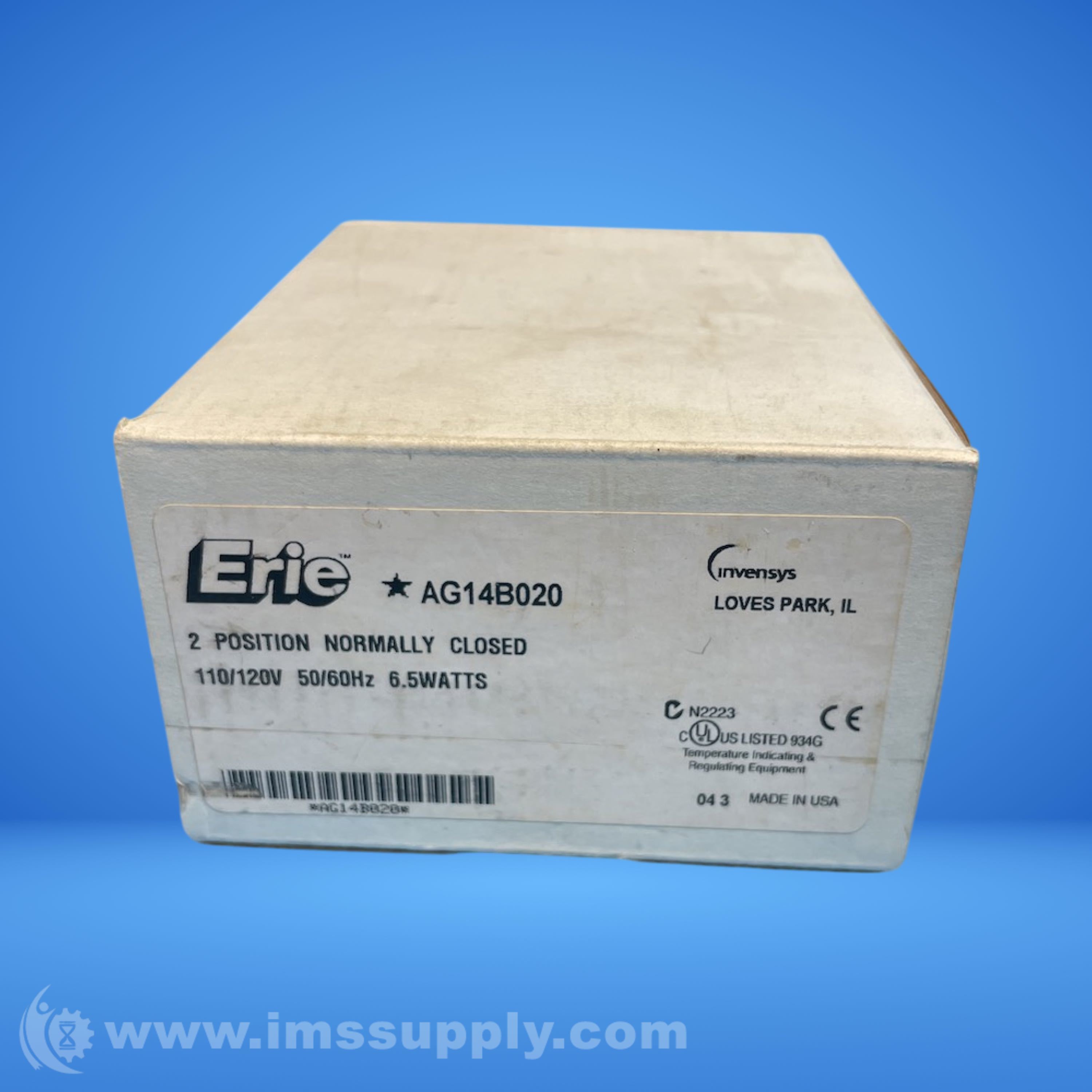

INVENSYS AG14B020 ELECTRIC ACTUATOR
Quick Overview
Manufactured By: INVENSYS
Manufacturer Part Number: AG14B020
IMS Product Code: 2133774
Packaging: Sold Individually
Description:
Invensys AG14B020 Electric Actuator
Two Position Actuator, 120V, Normally Closed, Spring Return, Rotary Motion
Specifications
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 110 VAC, 115 VAC, 120 VAC
- Power Input Frequency: 50 Hz, 60 Hz
- Leads and Connections: 18 in Appliance
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Range: Erie PopTop
- Product Series: AG
- Actuator Housing Material: Stainless steel base plate, aluminum cover
- Auxiliary Switch: 1 SPDT
- Motor Type: AC Synchronous
- Power Consumption Running VA: 7.50 VA
- Stroke Running time: 6.0 s
- Temperature Ambient Operating Range: 0 to 121.1 C (32 to 250 F)
- Temperature Shipping and Storage Range: -40 to 71 C (-40 to 159.8 F)
- Dimensions: 4 × 6 × 3 in
- Weight: 2 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, December 22, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
