IXXAT 1.01.0281.12001 USB-TO-CAN V2 COMPACT
Quick Overview
Manufactured By: IXXAT
Manufacturer Part Number: 1.01.0281.12001
IMS Product Code: 2155166
Packaging: Sold Individually
Description:

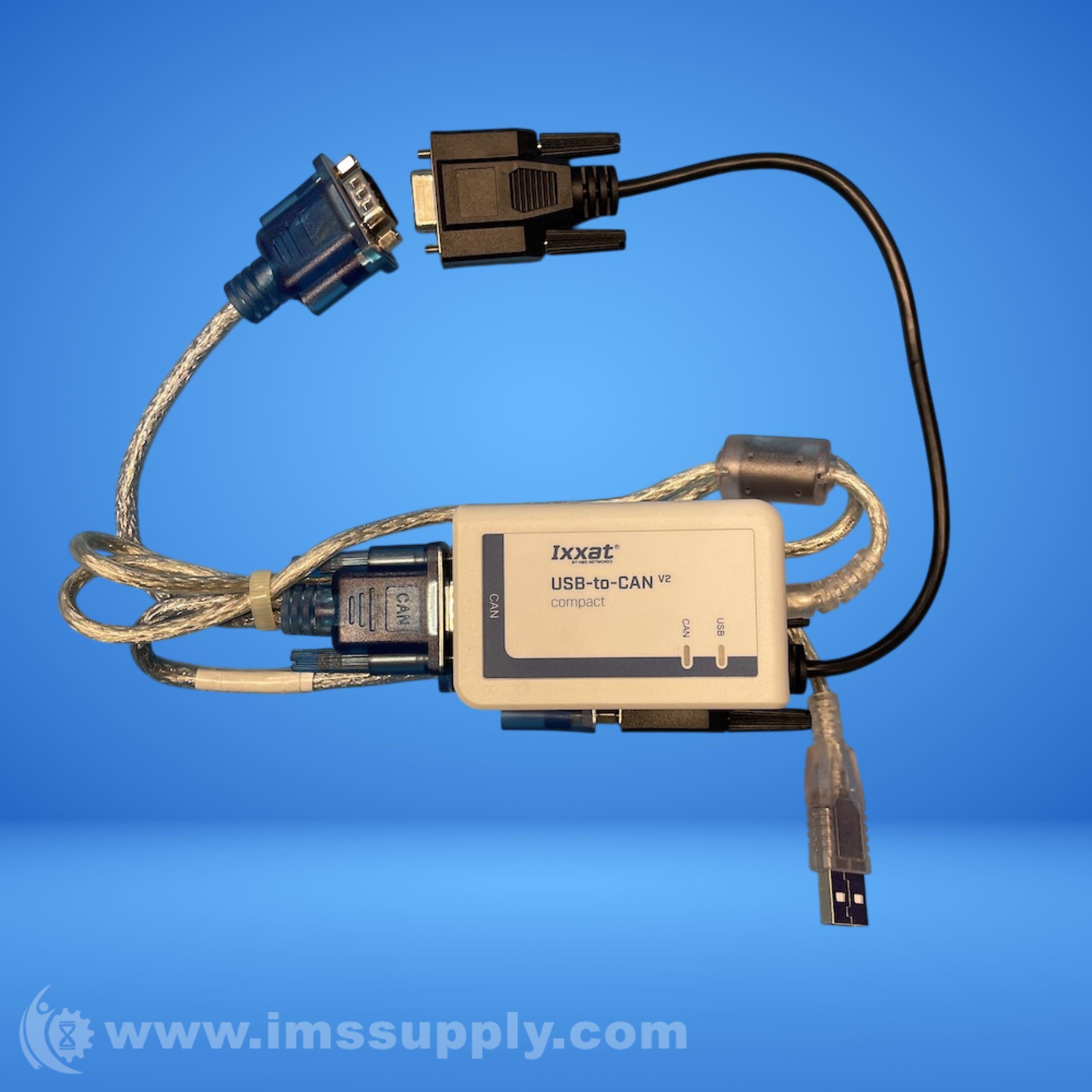

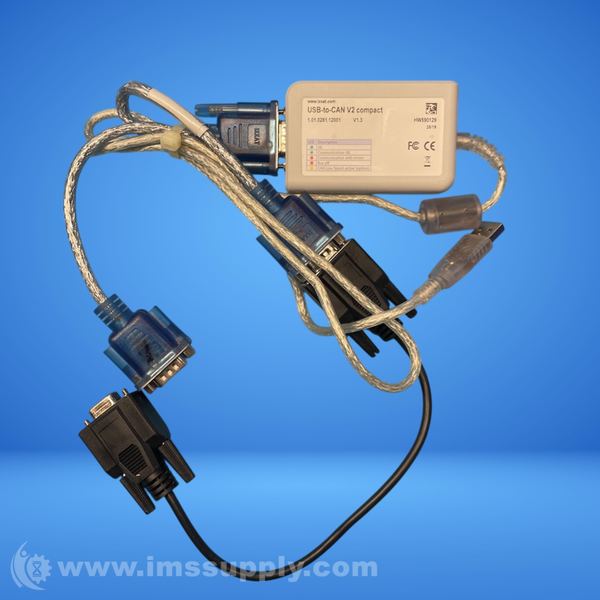

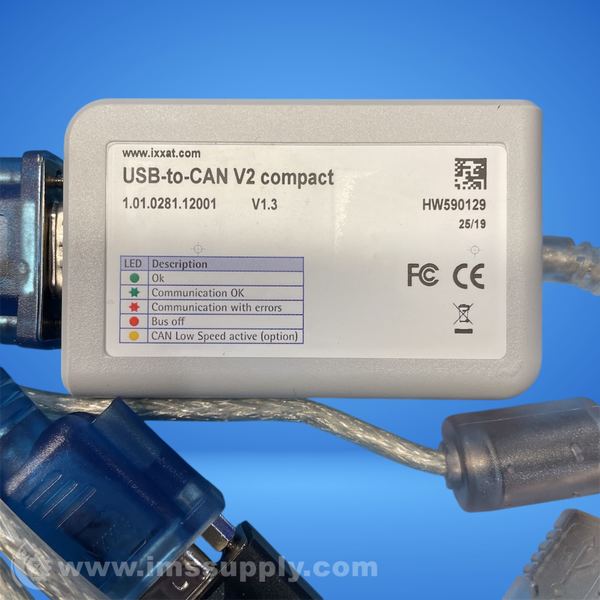

Ixxat 1.01.0281.12001 USB-to-CAN V2 Compact
The Ixxat USB-to-CAN V2 compact with a D-Sub 9 CAN interface and galvanic isolation is an easy and cost-efficient way to connect a computer to a CAN bus network.
Specifications
- brand: Ixxat
- item number: 1.01.0281.12001
- country of origin: Romania
- dual usage: No
- export control classification number (eccn): EAR99
- hs code: 8517620000
- content of delivery: USB-to-CAN V2 interface, user manual, available as free download: CAN driver VCI, simple CAN monitor "canAnalyser Mini"
- not included (in delivery): Comprehensive and powerful driver and software packages are available as free download
- net width (mm): 50 mm
- net height (mm): 80 mm
- net depth (mm): 22 mm
- net weight (g): 105 g
- current consumption type value at vcc nom (mA): 48 mA
- current consumption max value at vcc nom (mA): 300 mA (5 V DC)
- input voltage (V): 5 V DC via USB port
- power connector: USB
- isolation: 1 kV DC for 1 sec., 500 V AC for 1 min.
- operating temperature °C Min: -20 °C
- operating temperature °C Max: 70 °C
- storage temperature °C Min: -40 °C
- storage temperature °C Max: 85 °C
- relative humidity: 10 to 95 %, non-condensing
- housing materials: PC ABS, UL 94 VO
- can mode: CAN high-speed (ISO 11898-2: 2016)
- can controller: CAN 2.0 A/B
- can baud rate: 10 kBit/s to 1 Mbit/s
- can transceiver: TI SN65HVD251
- contains battery: No
- connectors / input / output: 1 x D-Sub 9 connector, 1 x USB type A connector
- ce: Yes
- fcc: Yes
- protection class ip: IP40
- ukca: Yes
New - Missing Box (Special):

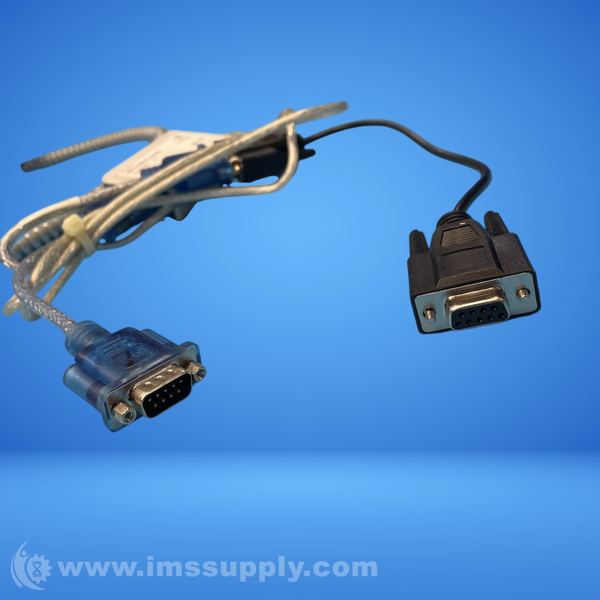

Item has attachment cords. (1.04.0076.00001)
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 35 minutes.
