JAMESBURY VPVL100DABD DOUBLE ACTING PNEUMATIC ACTUATOR
Quick Overview
Manufactured By: JAMESBURY
Manufacturer Part Number: VPVL100DABD
IMS Product Code: 2119953
Packaging: Sold Individually
Description:

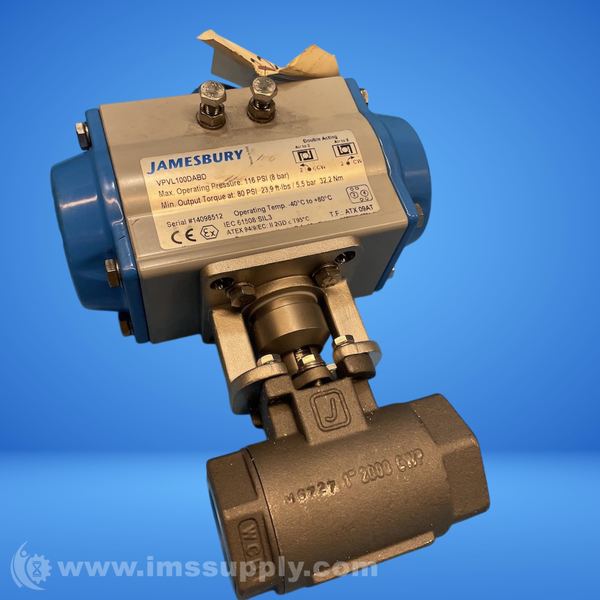

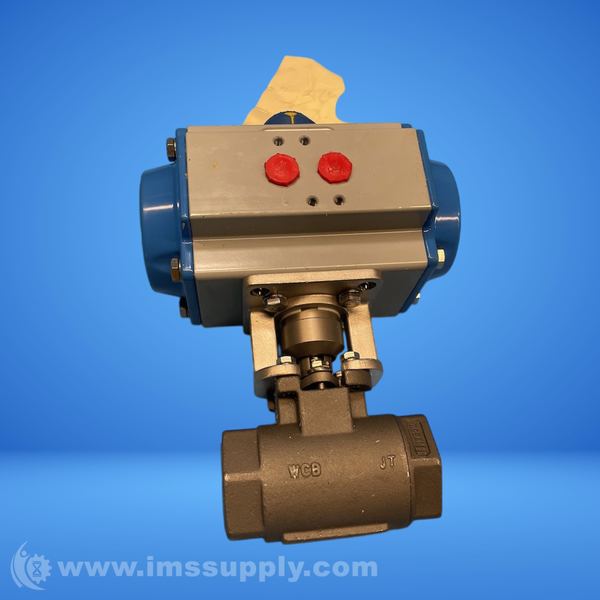

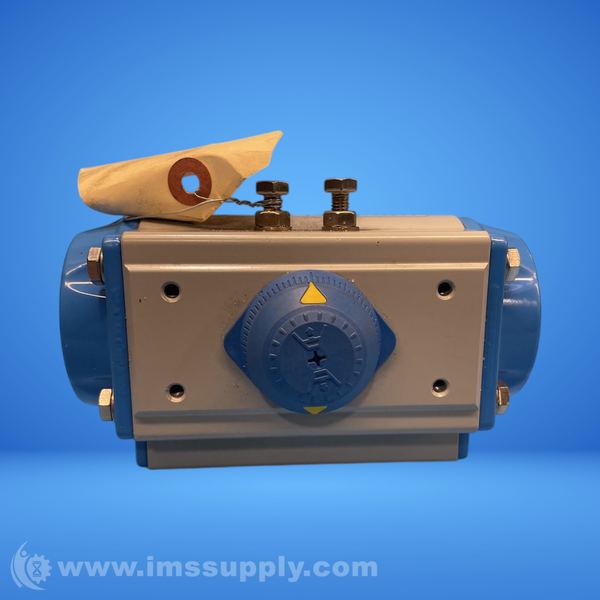

Jamesbury VPVL100DABD Double Acting Pneumatic Actuator
Double acting pneumatic actuator with 17.9 ft-lbs torque at 60psi, 23.9 ft-lbs at 80psi, and 29.8 ft-lbs at 100psi supply pressure. Maximum supply range of 116 psi (8 bar) and temperature range of -40F to +176F (-40C to +80C).
Specifications
- Maximum Supply Range: 116 psi (8 bar)
- Temperature Range: Standard -40F to +176F (-40C to +80C), High Temp 5F to +302F (-15C to +150C), Low Temp -60F to +176F (-51C to +80C)
- Rotation Adjustment: Close -5° to +5° from 0°, Open +5° to -5° from 90°
- Supply Media: Air, mineral-based hydraulic fluid
- Weight: 3.70 lbs
- Dimensions: 12 × 8 × 6 in
- Material: Stainless Steel
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 52 minutes.
