JOHNSON CONTROLS 41P872 2-WAY GLOBE VALVE
Quick Overview
Manufactured By: JOHNSON CONTROLS
Manufacturer Part Number: 41P872
IMS Product Code: 2148469
Packaging: Sold Individually
Description:
Johnson Controls 41P872 2-Way Globe Valve
Two-way union NPT globe valve with bronze body, brass trim, and stainless steel stem. Normally open with spring return actuator. Controls fluid flow between open and closed.
Specifications
- Body Pattern: Two-Way
- Port Connection Size: 1/2 in
- Port Connection Gender: Female/Male
- Port Connection Type: Union NPT
- Cv Flow Rate: 1.8
- Fluid Temperature - Minimum: 35 F
- Fluid Temperature - Maximum: 248 F
- Fluid Service: Steam; Water; Water-Glycol Solution to 50%
- Body Material: Bronze
- Seat Material: Brass
- Stem Material: Stainless Steel
- Trim Material: Brass
- Configuration: Straight-Thru
- Max. Pressure: 400 psi
- Valve Action: Normally Open
- Flow Characteristic: Equal Percentage
- Leakage Rate: 0.01%
- Rangeability: 100:1
- Installation Orientation: Vertical
- Overall Depth: 1-5/8 in
- Overall Height: 4-3/4 in
- Overall Length: 5-5/16 in

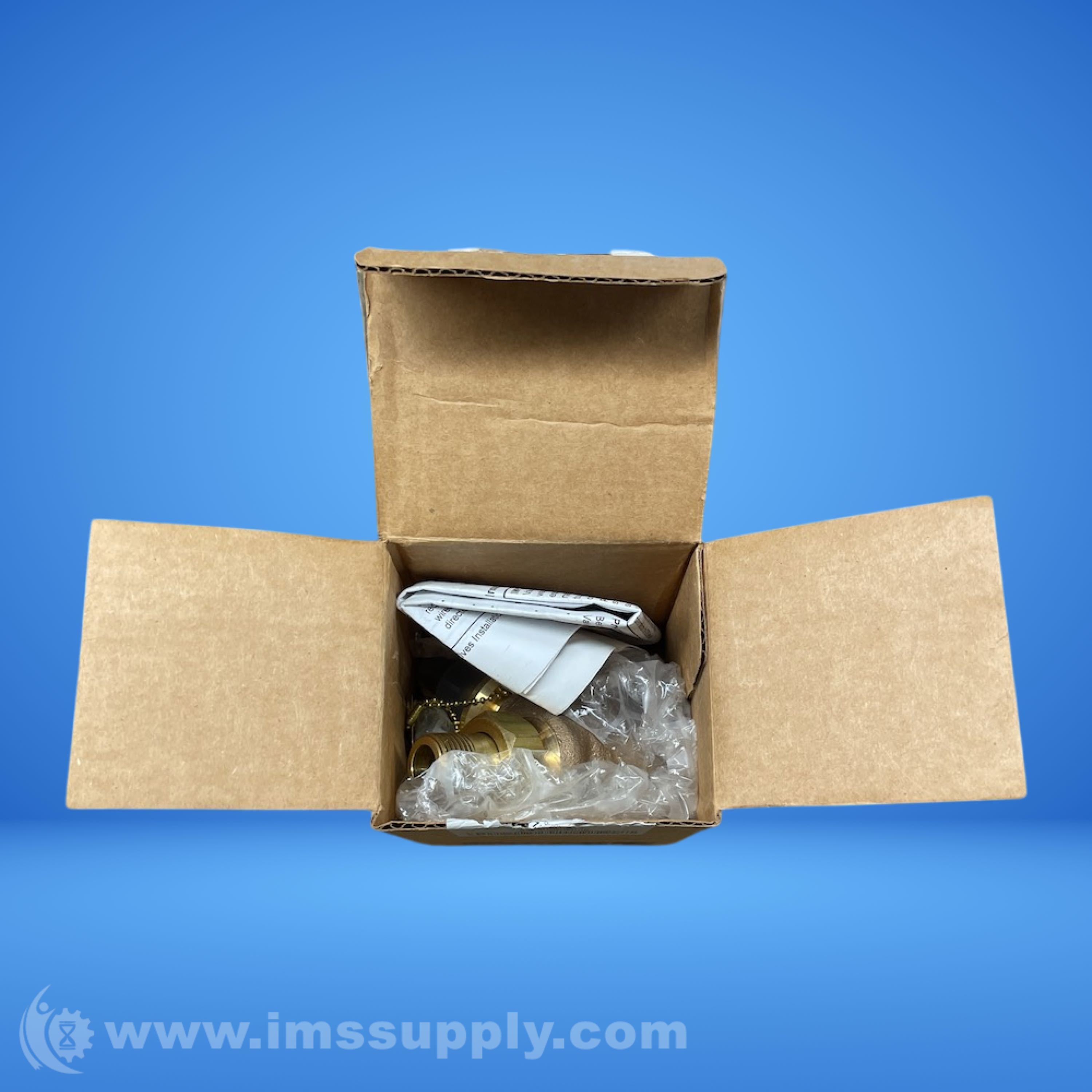

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 46 minutes.
