JOHNSON CONTROLS MS-VMA1630-0 VAV CONTROLLER
Quick Overview
Manufactured By: JOHNSON CONTROLS
Manufacturer Part Number: MS-VMA1630-0
IMS Product Code: 2160124
Packaging: Sold Individually
Description:

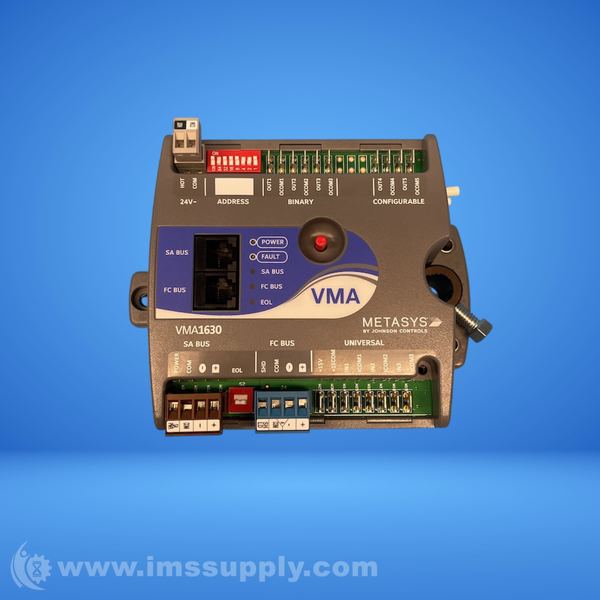

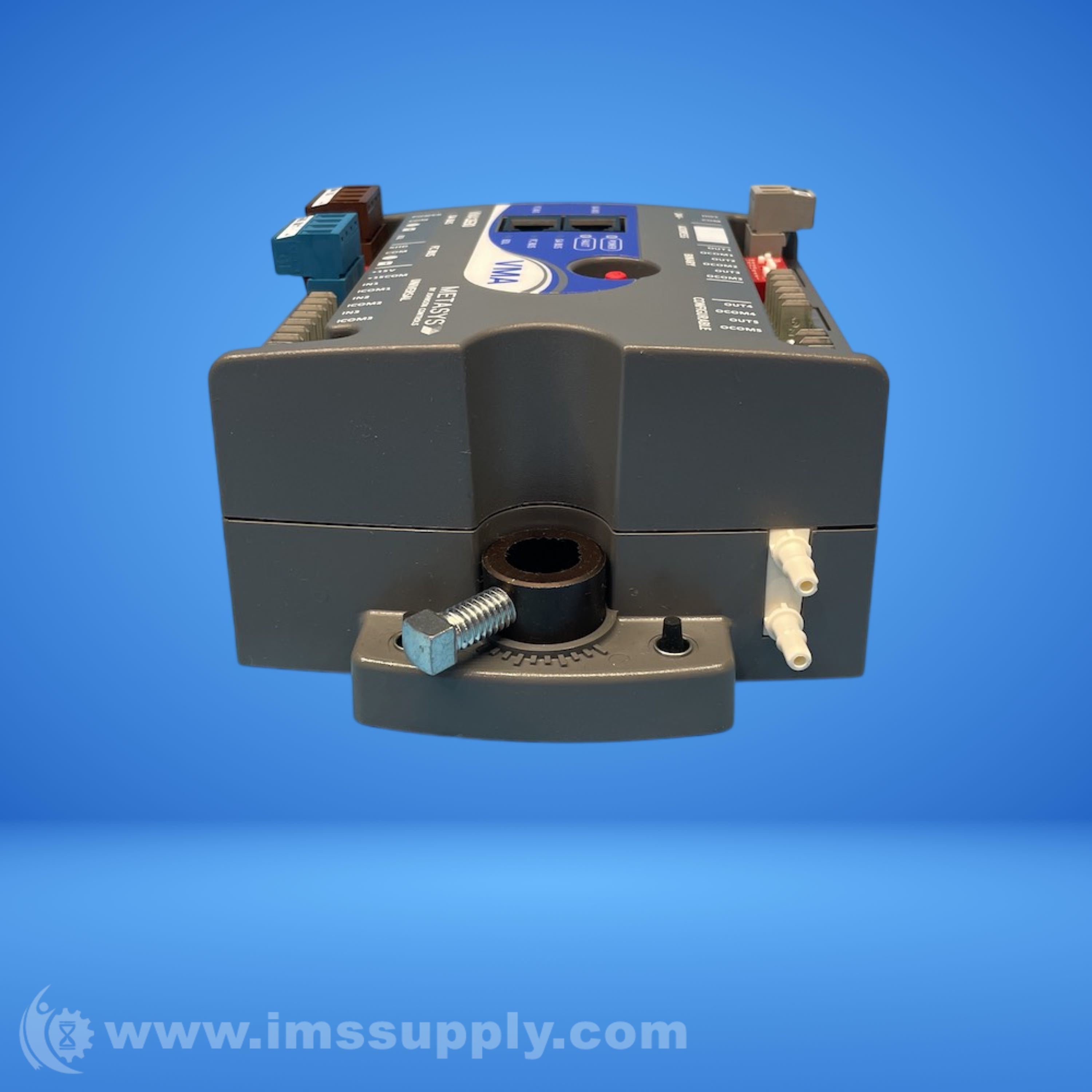

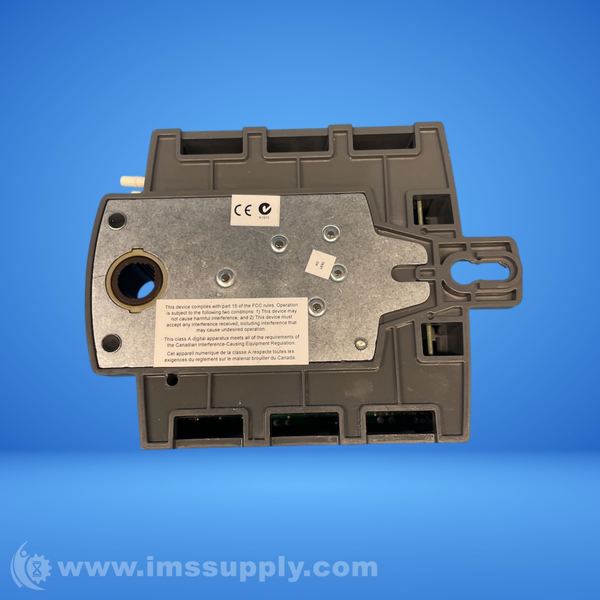

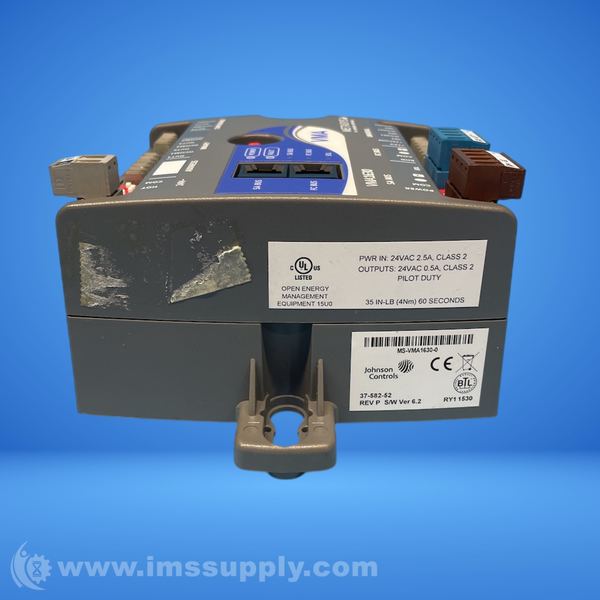

Johnson Controls MS-VMA1630-0 VAV Controller
32-bit integrated VAV controller/actuator with 3 universal inputs, 3 binary outputs, 2 configurable outputs, and 24 Vac power supply.
Specifications
- Manufacturer: Johnson Controls
- Product Type: Controller Module
- Product Line: Metasys MS
- Part Number: MS-VMA1630-0
- Weight: 1.50 lbs (0.68 kg)
- Dimensions: 5 x 9 x 9 in
- Communication Protocols: N2 and BacNet MS/TP
- Power Consumption: 10 VA typical, 14 VA maximum
- Memory: 512 KB RAM, 1 MB flash
- Nominal Supply Voltage: 24 VAC
- Input Frequency: 50-60 Hz
- Mounting Method: Screw mount
- Local Signalling: 5 LED indicators
- Permissible Supply Voltage Range: 20-30 VAC
- Inputs/Outputs Termination: Spade lugs
- Resolution: 32-bit
- Input/Output Current Rating: 2.5 A input, 0.5 A output
- Number of Inputs/Outputs: 3 universal inputs, 3 binary outputs, 2 configurable outputs
- Operating Temperature: 0-50 degrees C (32-122 degrees F)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
