JOHNSON CONTROLS P47AA-13C STEAM PRESSURE CONTROL
Quick Overview
Manufactured By: JOHNSON CONTROLS

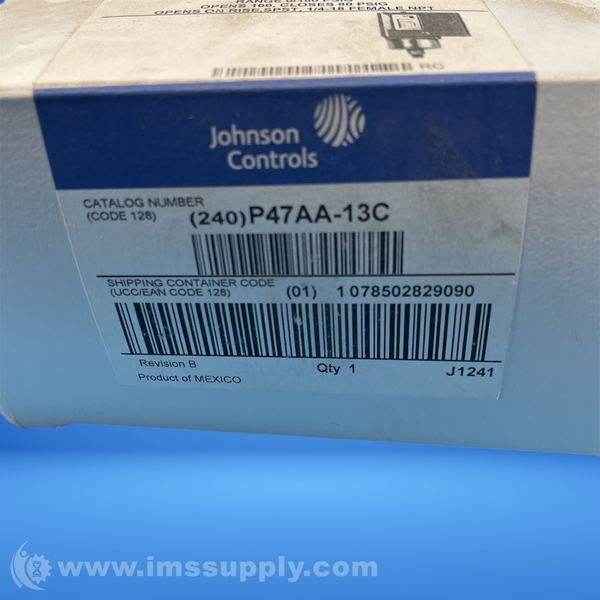

Manufacturer Part Number: P47AA-13C
IMS Product Code: 2148444
Packaging: Sold Individually
Description:

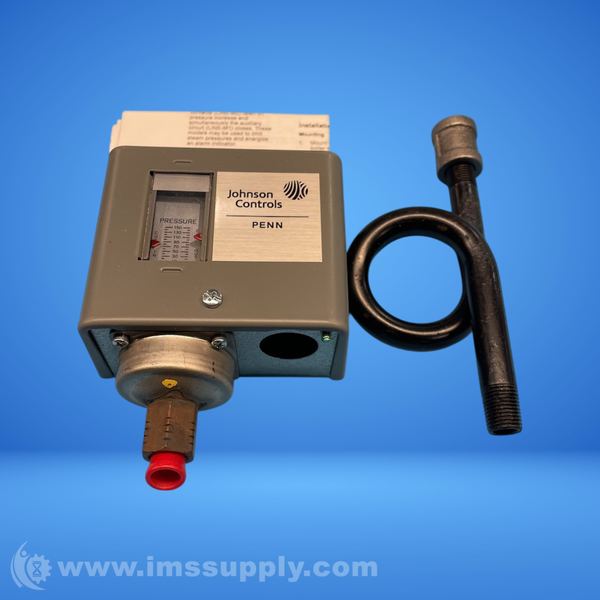

Johnson Controls P47AA-13C Steam Pressure Control
Steam pressure limit control for steam heating systems, SPST action, 0-150 psi pressure range, automatic reset, 124°F max operating temperature
Specifications
- Switch Action: Open on Rise
- Reset Type: Automatic Reset
- Minimum Pressure Setting: 0 psi
- Maximum Pressure Setting: 150 psi
- Maximum Overpressure Rating: 325 psig
- Maximum Operating Temperature: 124 degrees F
- Input Voltage: 120V AC; 208V AC; 240V AC; 277V AC
- Contact Form: SPST
- Resistive Amps @ 120V AC: 16 A
- Full Load Current @ 120V AC: 16 A
- Locked Rotor Current @ 120V: 96 A
- Electrical Connection Type: Screw Terminals
- Housing Material: Steel
- Housing Material Finish: Baked Enamel
- Overall Height: 3-1/4 in
- Overall Width: 4 in
- Overall Depth: 2-3/8 in
- Weight: 2.3 lb
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 16 minutes.
