JOHNSON CONTROLS VG7842GS+3801E0 3-WAY BRONZE PNEUMATIC VALVE
Quick Overview
Manufactured By: JOHNSON CONTROLS
Manufacturer Part Number: VG7842GS+3801E0
IMS Product Code: 1834333
Packaging: Sold Individually
Description:

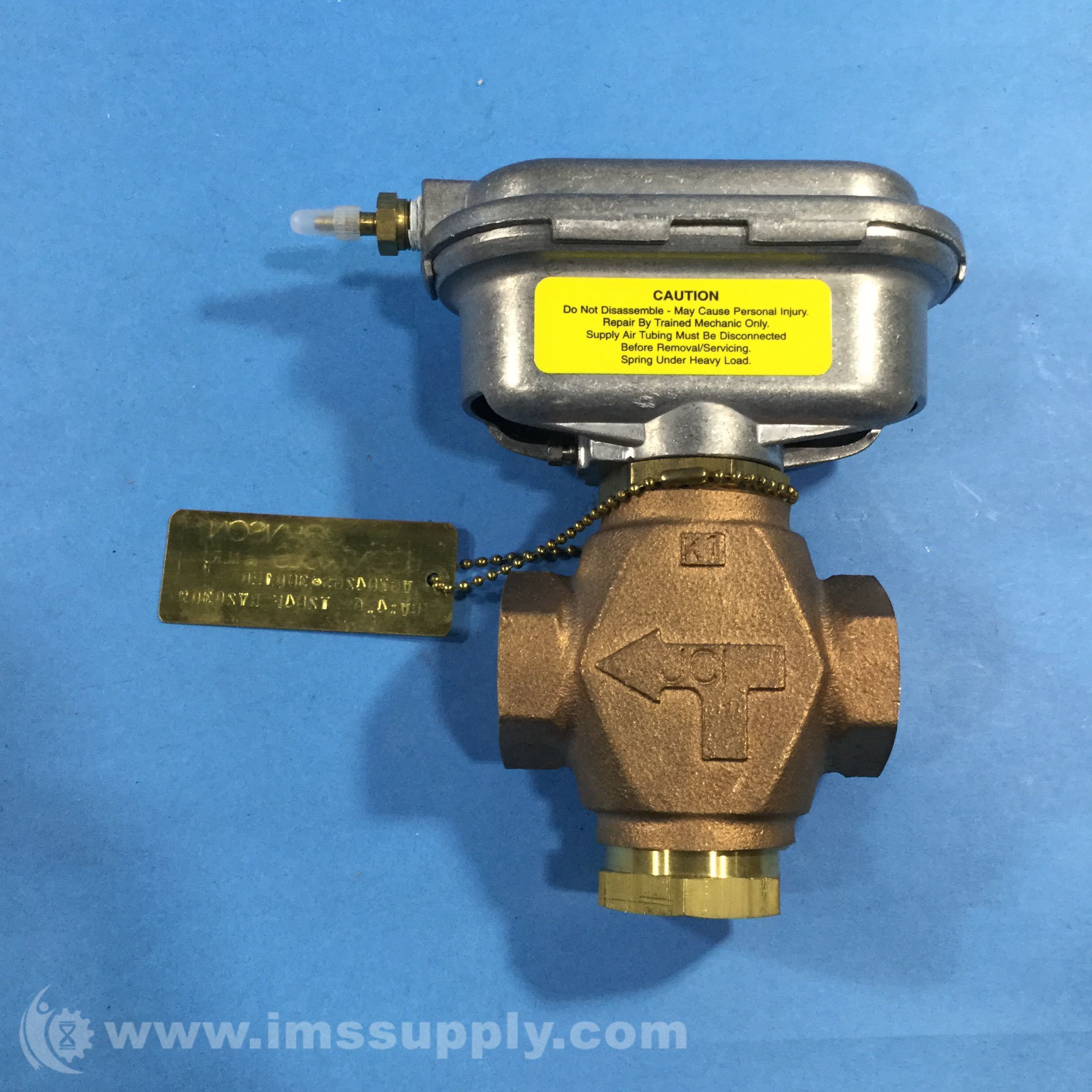

Johnson Controls VG7842GS+3801E0 3-Way Bronze Pneumatic Valve
A compact, bronze, pneumatic, 3-way mixing valve with 1/2 inch NPT connection, featuring a normally-open configuration with spring return and linear flow characteristic.
Specifications
- Capacity: 4.6 Cv
- Pipe Size: 0.5 "
- Connection Type: Threaded/NPT
- Max Static Pressure: 400 psi
- Body Pattern: Three-Way Mixing
- Valve Style: Control
- Medium Temperature Range: 35-248 degrees F
- Flow Characteristic: Linear
- Fail-Safe Mode: Spring Normally Open
- Body Material: Bronze
- Configuration: 3-Way
- Weight: 4.00 lbs
