KENNAMETAL 3752097 TCMT32.53 LF GRADE CARBIDE TURNING INSERT
Starting At: $34.50
Quick Overview
Manufactured By: KENNAMETAL
Manufacturer Part Number: 3752097
IMS Product Code: 1734509
Packaging: Sold Individually
Description:

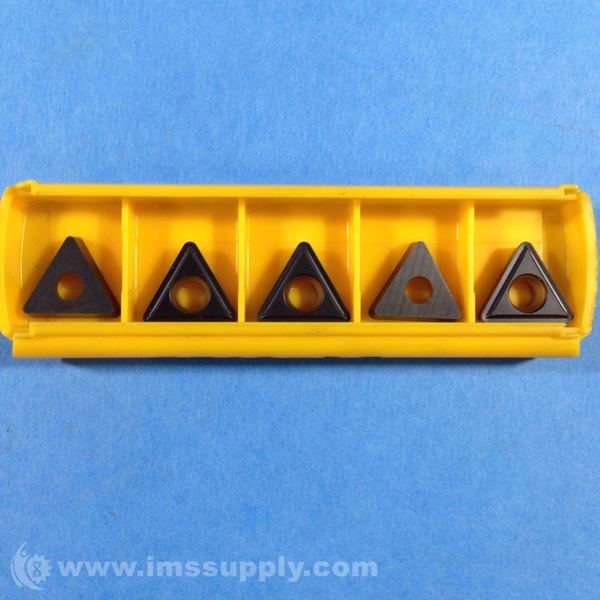

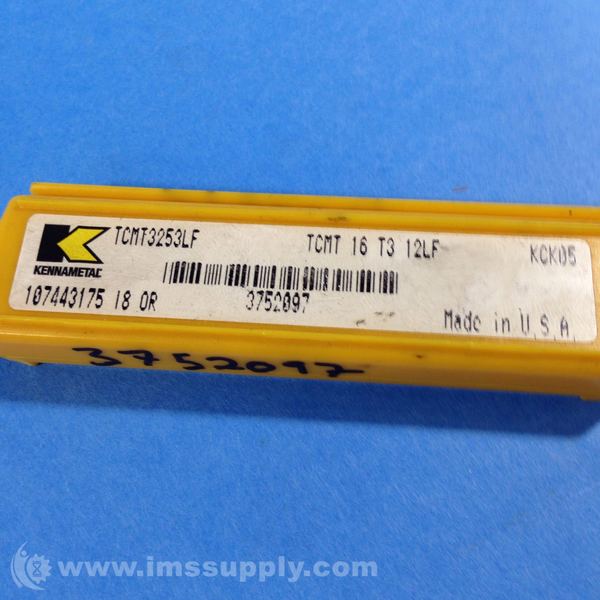

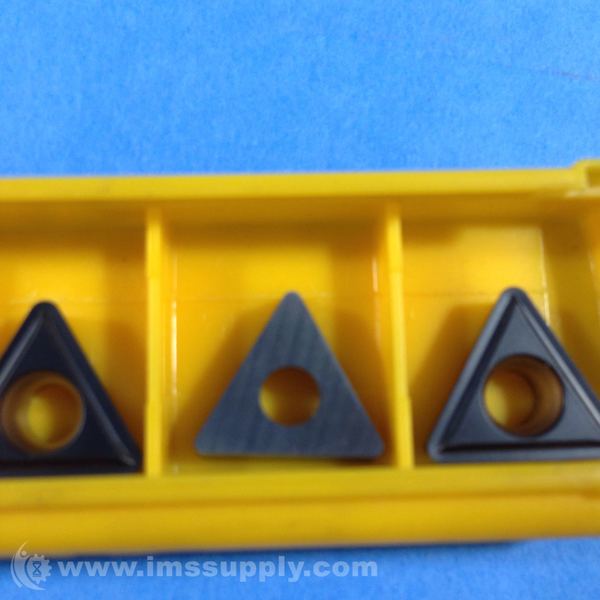

Kennametal 3752097 TCMT32.53 LF Grade Carbide Turning Insert
Specifications:
- Insert Style: TCMT
- Insert Size: 32.53
- Carbide
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Thickness (Inch): 5/32
- Thickness (Decimal Inch): 0.1563
- Corner Radius (Inch): 3/64
- Corner Radius (Decimal Inch): 0.0469
- Manufacturer's Grade: KCK05
- Coating: TiCN/Al2O3
- Material Grade: C3/C4
- Chip breaker: LF
- Length (mm): 16.50
- Length (Decimal Inch): 0.6496
- Hole Diameter (mm): 4.40
- Hole Diameter (Decimal Inch): 0.1732
- Rake: Positive
- Rake Angle (Degree): 5
- Relief Angle (Degree): 7
- Coating Process: CVD
- Included Angle (Degree): 60
- Maximum Depth of Cut (mm): 1.25
- Maximum Depth of Cut (Decimal Inch): 0.0492
- Insert Holding Method: Screw
