KENNAMETAL 4050451, CNMG432 MP GRADE KCU25 CARBIDE TURNING INSERT
Quick Overview
Manufactured By: KENNAMETAL
Manufacturer Part Number: 4050451
IMS Product Code: 1791104
Packaging: Sold Individually
Description:

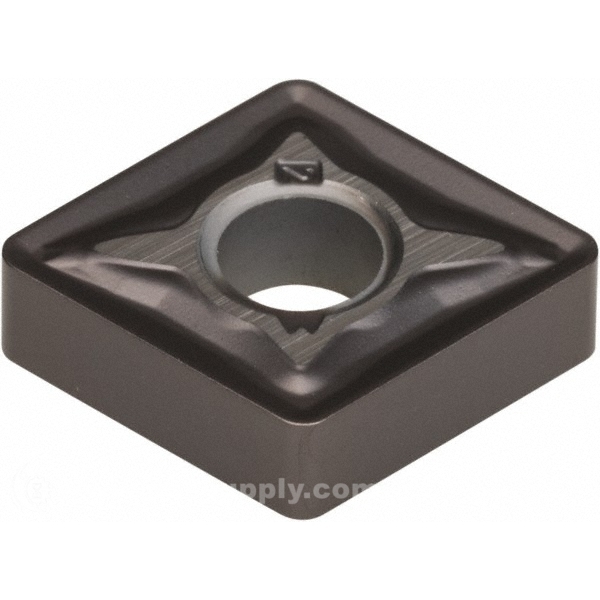

Kennametal 4050451, CNMG432 MP Grade KCU25 Carbide Turning Insert
Specifications:
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0313 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Chip breaker | MP |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120408MP |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNMG432MP |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P; K; N |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
