KENNAMETAL 5066149, DFT090508 HP KCU40 GRADE CARBIDE INDEXABLE
Quick Overview
Manufactured By: KENNAMETAL
Manufacturer Part Number: 5066149
IMS Product Code: 1791055
Packaging: Sold Individually
Description:

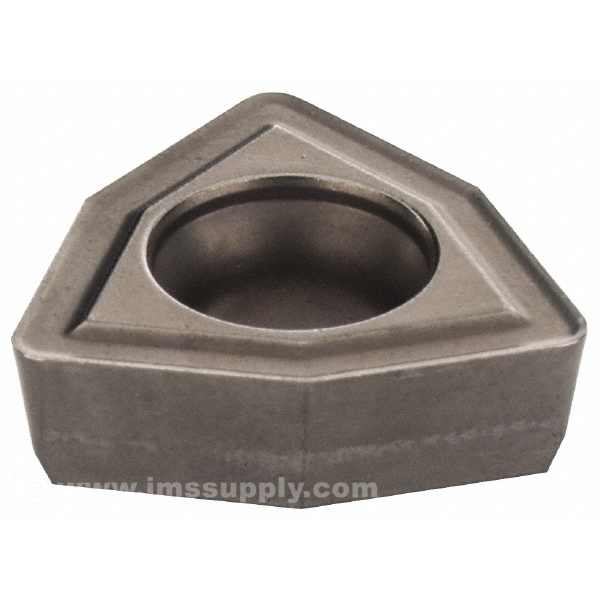

Kennametal 5066149, DFT090508 HP KCU40 Grade Carbide Indexable Insert Drill
TiN/TiAlN Coated, Trigon, 0.5906" Inscr Circle, 0.2067" Thick, 1/32" Cnr Rad, 8°
Specifications:
| Insert Style | DFT |
| Insert Size | 090508 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.25 |
| Thickness (Decimal Inch) | 0.2067 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Length (mm) | 9.92 |
| Length (Decimal Inch) | 0.3906 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiN/TiAlN |
| Coating Process | PVD |
| Shape | Trigon |
| Cutting Direction | Neutral |
| Chipbreaker | HP |
