KENNAMETAL 5596468, CNMG432 RP GRADE KCM25B CARBIDE TURNING
Quick Overview
Manufactured By: KENNAMETAL
Manufacturer Part Number: 5596468
IMS Product Code: 1791095
Packaging: Sold Individually
Description:

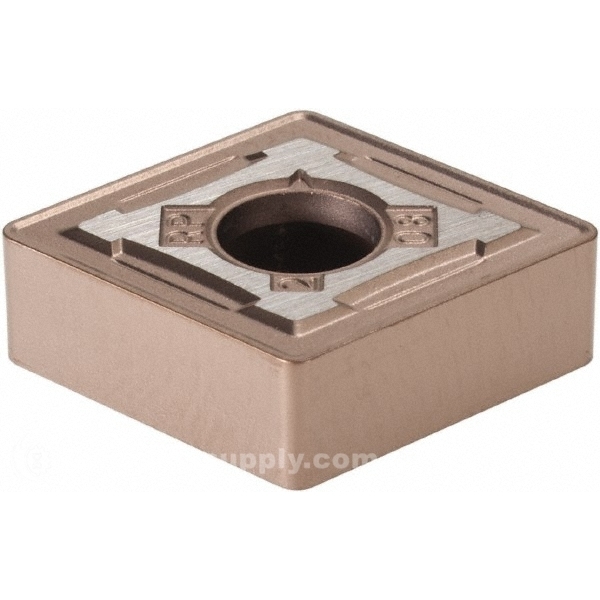

Kennametal 5596468, CNMG432 RP Grade KCM25B Carbide Turning Insert
TiOCN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Specifications:
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCM25B |
| Coating | TiOCN |
| Chip breaker | RP |
| Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5077 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120408RP |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG432RP |
| Primary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
