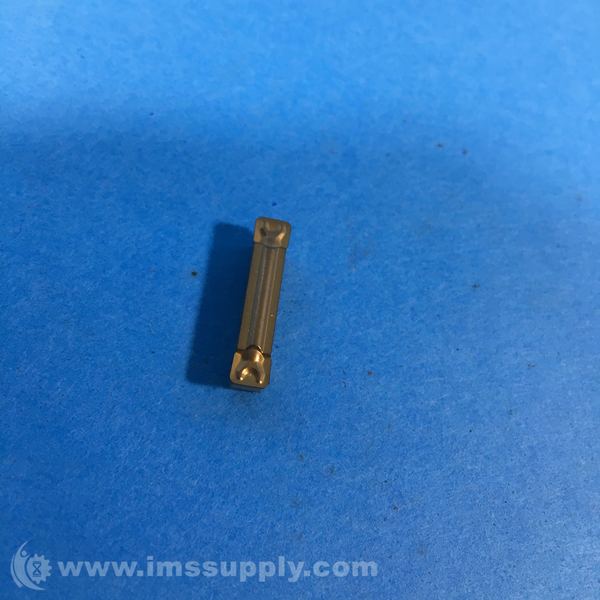

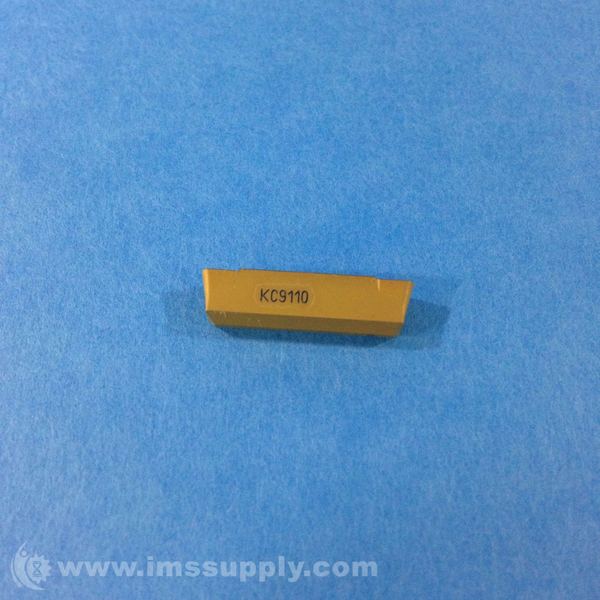

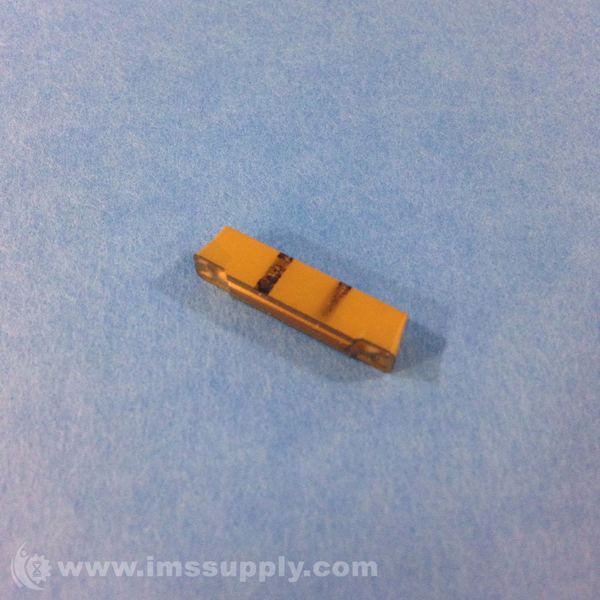

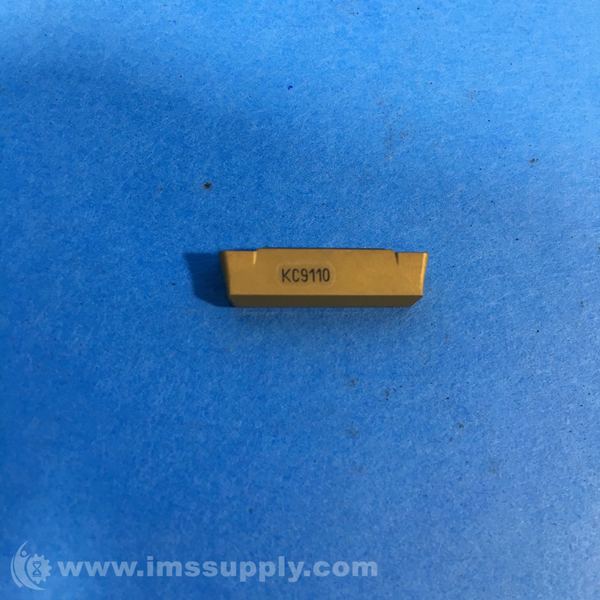

KENNAMETAL A4G0405M04U08GMN KC9110 CARBIDE GROOVING INSERT
Quick Overview
Manufactured By: KENNAMETAL
Manufacturer Part Number: A4G0405M04U08GMN
IMS Product Code: 1734507
Packaging: Sold Individually
Description:
Kennametal A4G0405M04U08GMN KC9110 Carbide Grooving Insert
Specifications:
- Insert Style: R
- Insert Size: 0505M0
- Material: Carbide
- Cutting Width (mm): 5.05
- Cutting Width (Decimal Inch): 0.1988
- Maximum Depth of Cut (mm): 4.10
- Maximum Depth of Cut (Decimal Inch): 0.1614
- Material Grade: C3/C7
- Manufacturer's Grade: KC9110
- Coating: TiCN/Al2O3/TiCN/TiN
- Insert Hand: Neutral
- Insert Seat Size: 5
- Chipbreaker: GMN
- Multi-Use Tool (Yes/No): Yes
- Multi-Use Application: Grooving; Turning
- Corner Radius (mm): 2.53
- Corner Radius (Decimal Inch): 0.0996
- Coating Process: CVD
- Overall Length (mm): 25.00
- Overall Length (Decimal Inch): 0.9843
- Series: A4
