KEYENCE AP-33K PRESSURE SENSOR
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: AP-33K
IMS Product Code: 917459
Packaging: Sold Individually
Description:

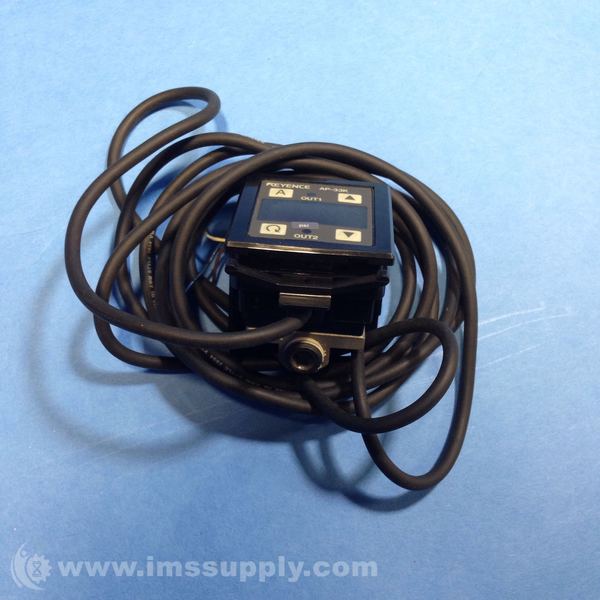

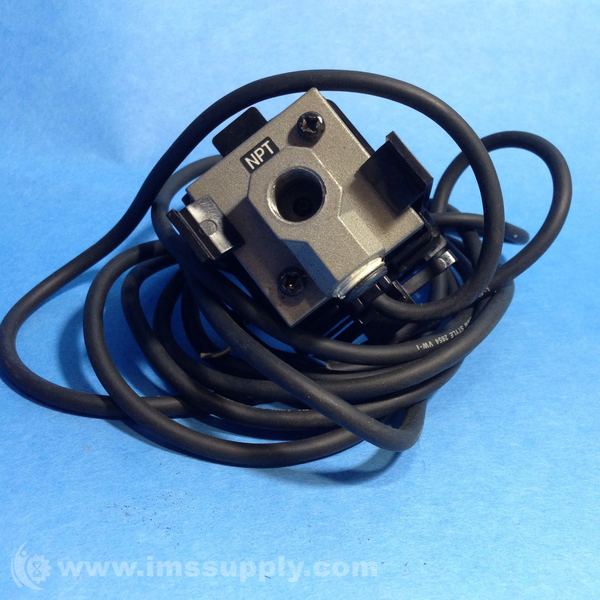

Keyence AP-33K Pressure Sensor
Digital pressure sensor with NPN output and 3 1/2-digit 2-color 7-segment LED display.
Specifications
- Pressure Range: 1 MPa
- Output Type: NPN
- Type: Positive pressure, Analog
- Material: Front housing: Polyamide, Front panel sheet: PET, Rear housing: Polysulfone, Pressure port: Die-cast zinc, Cable: Oil-proof cabtyre cable
- Rated Pressure: 0 to 145.0 PSI
- Display Resolution: 0.2 Psi, 0.001 MPa, 0.01 kgf/cm2, 0.01 bar
- Response Time: 2.5/5/100/500 ms (selectable)
- Power Voltage: 12 to 24 VDC ±10%
- Current Consumption: 50 mA (at 24 V), 90 mA (at 12 V)
- Operating Temperature: 0 to 50°C
- Operating Humidity: 35 to 85% RH
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
