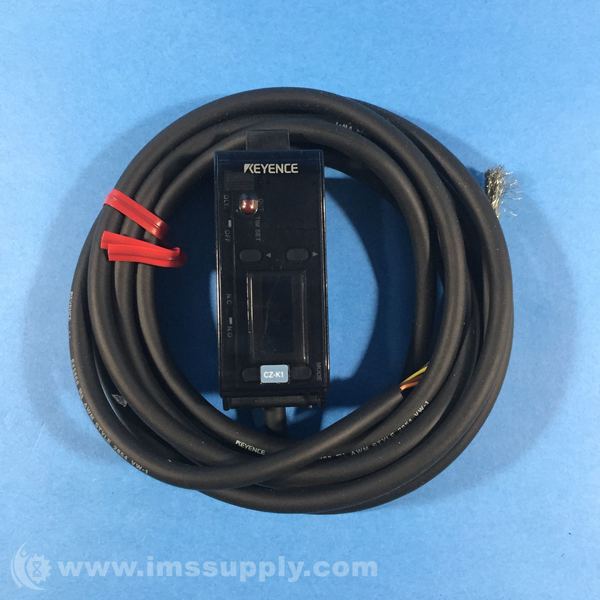

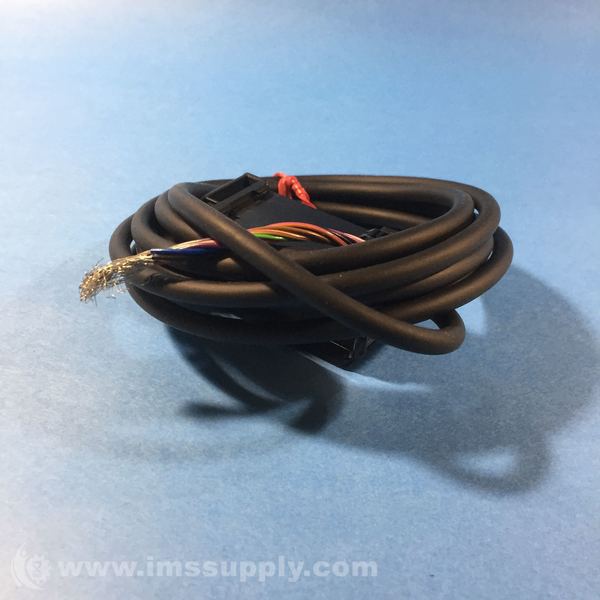

KEYENCE CORP CZ-K1 FIBEROPTIC SENSOR, AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: CZ-K1
IMS Product Code: 1810635
Packaging: Sold Individually
Description:
Keyence Corp CZ-K1 Fiberoptic Sensor, Amplifier Unit
Specifications:
- Output: NPN
- Light source: Red LED, Green LED, Blue LED
- Response time: 300 µs/1 ms (switch-selectable)
- Indicator lamp: Output: Red LED, Calibration: Orange LED, External synchronization input: Green LED,
- Matching rate/received light intensity: LCD (Red/Green)
- Error indication: Excess light intensity, insufficient light intensity, insufficient color difference
- Calibration method: 1-point/2-point calibration (switch-selectable)
- Tolerance value adjustment:Numerical value setting on digital display
- Differentiation mode: C mode/C + I mode/I mode (switch-selectable)
- Timer function: OFF-delay timer (40 ms)/Timer OFF (switch-selectable)
- Output selection: Match output: Turns on when target color matches registered color.
- Mismatch output: Turns on when target color is different from registered color. (switch-selectable)
- External synchronization input: Response speed: 500 µs max.
- External calibration input: Input response time: 20 ms min.
- Registered color selection: 8-bank selection (By external input), Non-voltage input, Input response time: 20 ms min.
- Control output: NPN: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
- Protection circuit: Reverse-polarity protection (power supply), overcurrent protection (output), surge absorber (output)
