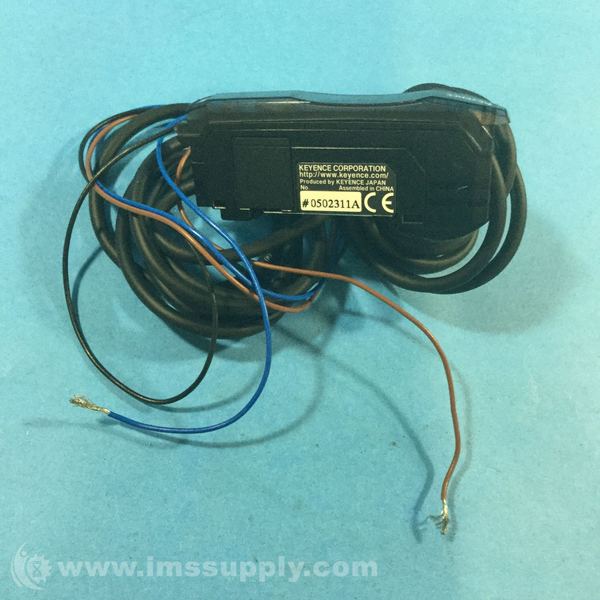

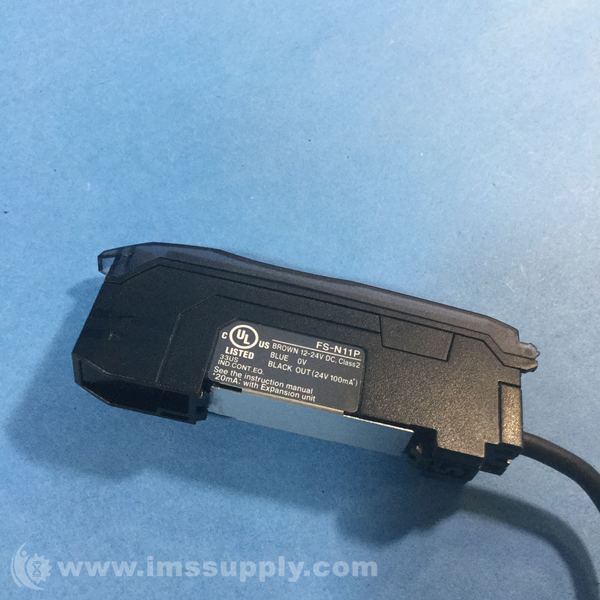

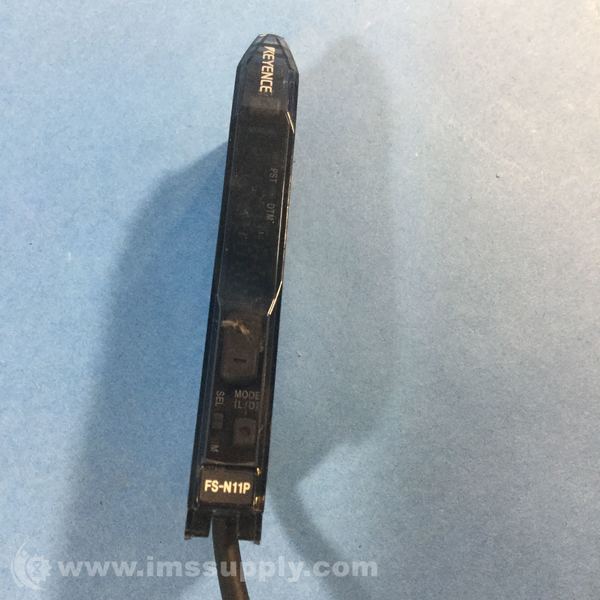

KEYENCE CORP FS-N11P FIBER AMPLIFIER
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: FS-N11P
IMS Product Code: 1801019
Packaging: Sold Individually
Description:
Keyence Corp FS-N11P Fiber Amplifier
Fiber amplifier for digital fiber optic sensor, cable type, main unit, PNP output.
Specifications
- type: Fiber Optic Sensor
- model: FS-N11P
- mpn: FS-N11P
- weight: 0.15 lbs
- i/o format: Cable
- main unit/expansion unit: Main Unit
- number of inputs/outputs: 1 Output /PNP Open Collector 24 V 1 Output Max: 100 mA or Less 2 Output Total: 100 mA or Less (Used Stand-alone)/20 mA or Less (Multiple Connections)
- residual voltage: 1 V or Less
- light source: Red, 4-Element LED
- response time: 50 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
- output selection: LIGHT-ON/DARK-ON (Switch-Selectable)
- timer function: Timer OFF/OFF-Delay Timer/ON-Delay Timer/One-Shot Timer
- apc: ON/OFF Switchable (Factory Setting: OFF)
- unit expansion: Up to 16 Units Can Be Connected Total (Two Output Type Is Treated As Two Units)
- protection circuit: Reverse Polarity Protection, Over-Current Protection, Surge Absorber
- number of interference prevention units: 0 for HIGH SPEED, 4 for FINE, 8 for TURBO/SUPER/ULTRA/MEGA (When Set To Double, The Number Of Interference-Prevention Units Will Be Doubled)
- rating power voltage: 12 – 24 V DC ±10% Ripple (P-P) 10% or Less
- power consumption: Normal: 950 mW or Less (39 mA Max. at 24 V, 52 mA Max. at 12 V), Eco On Mode: 850 mW or Less (35 mA Max. at 24 V, 44 mA Max. at 12 V), Eco Full Mode: 520 mW or Less (21 mA Max. at 24 V, 26 mA Max. at 12 V)
- operating ambient luminance: Incandescent Lamp: 20000 Lux or Less, Sunlight: 30000 Lux or Less
- operating ambient temperature: -20 to +55 degrees C (No Freezing)
- operating ambient humidity: 35 to 85% RH (No Condensation)
- vibration: 10 to 55 Hz, Double Amplitude 1.5 mm, 2 Hours For Each Of X,Y,Z Axis
- shock resistance: 500 m/s² 3 Times For Each Of X,Y,Z Axis
- material: Case: Polycarbonate
- case dimensions: H30.3mm x W9.8mm x L71.8mm
- output type: PNP
- power supply: 12-24 V DC

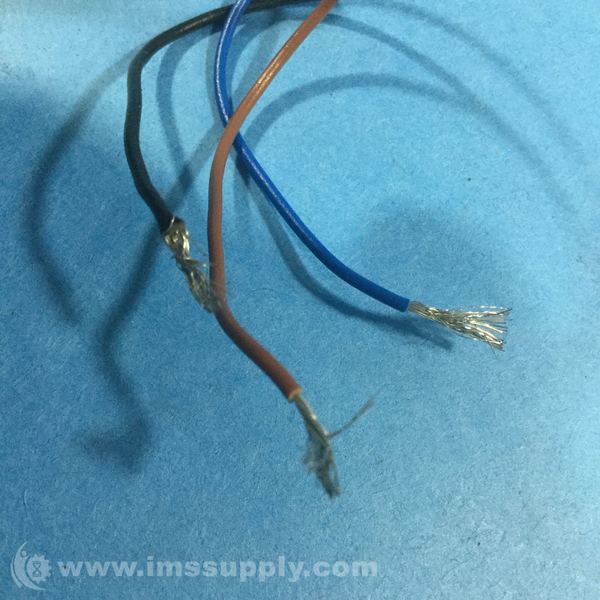

- wiring: 2-Wire
- cable length: 2 Meter
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
