KEYENCE FS-V12P FIBER AMPLIFIER
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: FS-V12P
IMS Product Code: 1749186
Packaging: Sold Individually
Description:

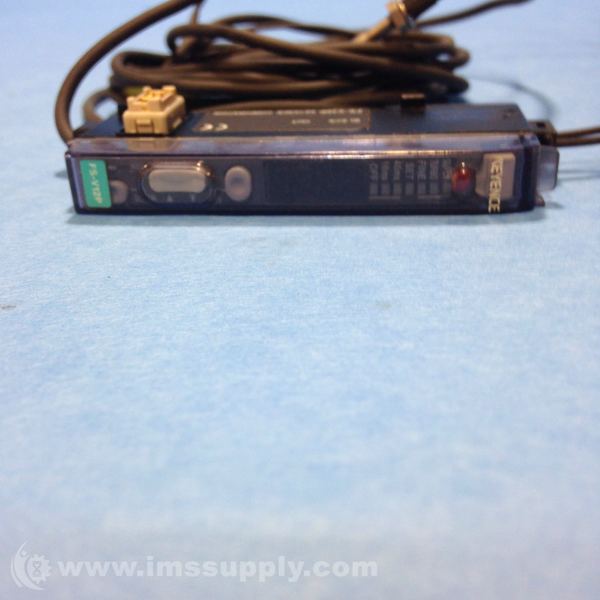

Keyence FS-V12P Fiber Amplifier
PNP expansion unit for fiber optic sensing, featuring a red LED light source, response times from 250 µs to 1 ms, and various monitoring indicators. Supports up to 17 units in expansion.
Specifications
- Output: PNP
- Light source: Red LED
- Response time: 250 µs (FINE) / 500 µs (TURBO) / 1 ms (SUPER TURBO)
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Control output: PNP open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
- Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Current consumption: 50 mA or less
- Ambient temperature: -10 to +55 °C (No freezing)
- Case material: Polycarbonate
- Weight: Approx. 45 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 9 minutes.
