KEYENCE PZ-M32P PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: PZ-M32P
IMS Product Code: 1757916
Packaging: Sold Individually
Description:

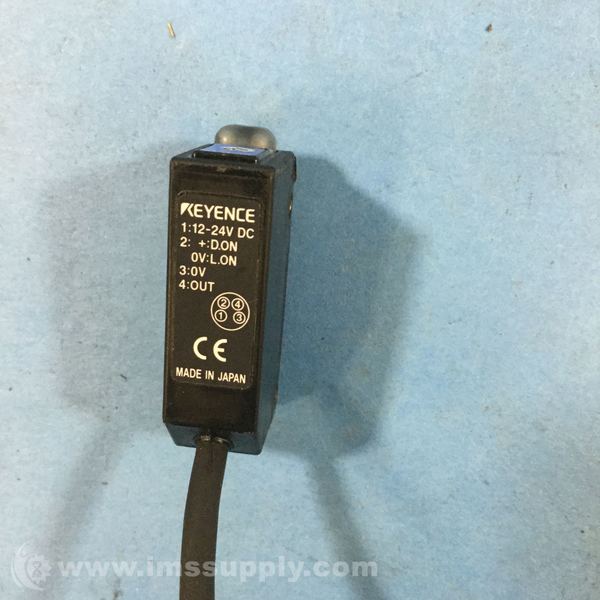

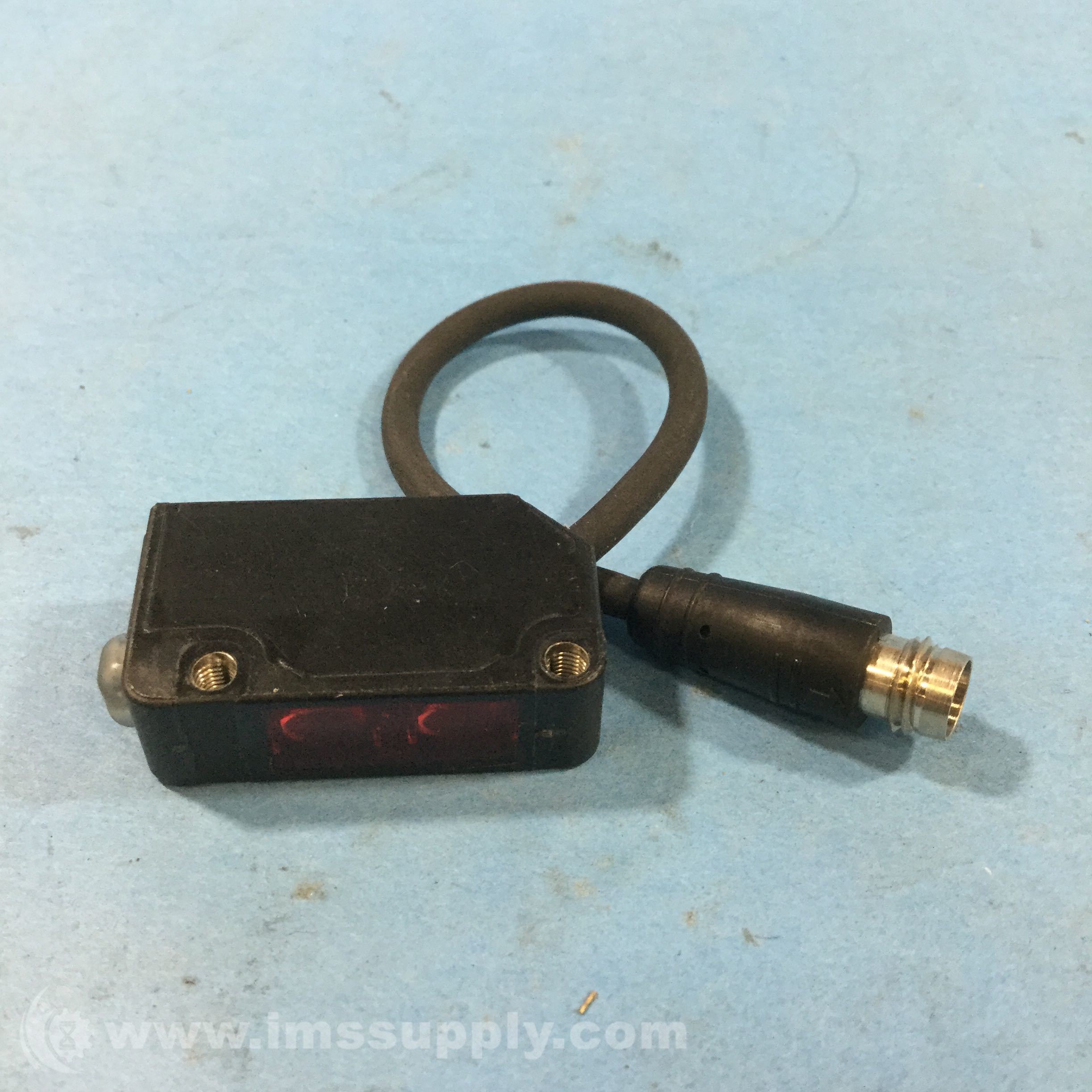

Keyence PZ-M32P Photoelectric Sensor
Compact square-shaped photoelectric sensor with built-in amplifier and M8 connector. Uses red LED light source, detection range 5 to 300 mm. Supports LIGHT-ON and DARK-ON modes. Includes 1-turn trimmer for sensitivity adjustment. IP67 enclosure rating. Glass-fiber reinforced plastic housing. Operates from -20 to +55 °C.
Specifications
- Output: PNP
- Detecting Distance: 5 to 300 mm
- Setting Distance: 40 to 300 mm
- Light Source: Red LED
- Sensitivity Adjustment: 1-turn trimmer (230 degrees)
- Response Time: 1 ms max.
- Operation Mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator Lamp: Output: orange LED, stable operation: green LED
- Control Output: Maximum PNP open-collector output: 100 mA (26.4 V or less), residual voltage: 1 V or less
- Protection Circuit: Reversed polarity, overcurrent protection, surge absorber
- Power Voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Power Consumption: 30 mA or less
- Enclosure Rating: IP67
- Ambient Light: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Ambient Temperature: -20 to +55 °C (No freezing)
- Relative Humidity: 35 to 85 % RH (No condensation)
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock Resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case Material: Glass-fiber reinforced plastic
- Weight: Approx. 15 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
