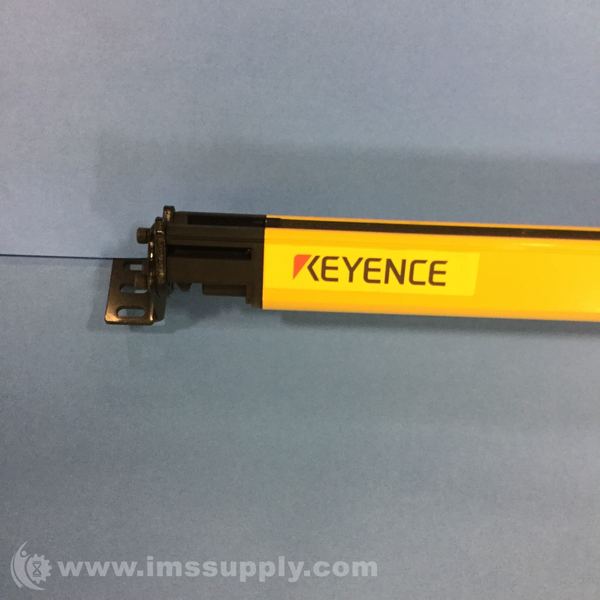

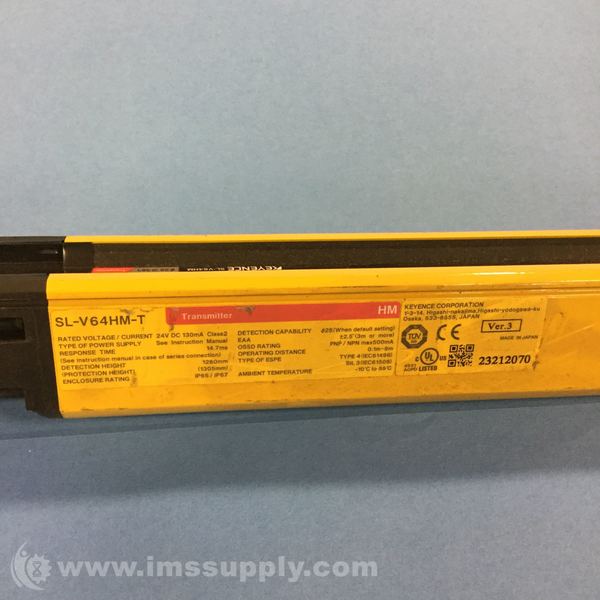

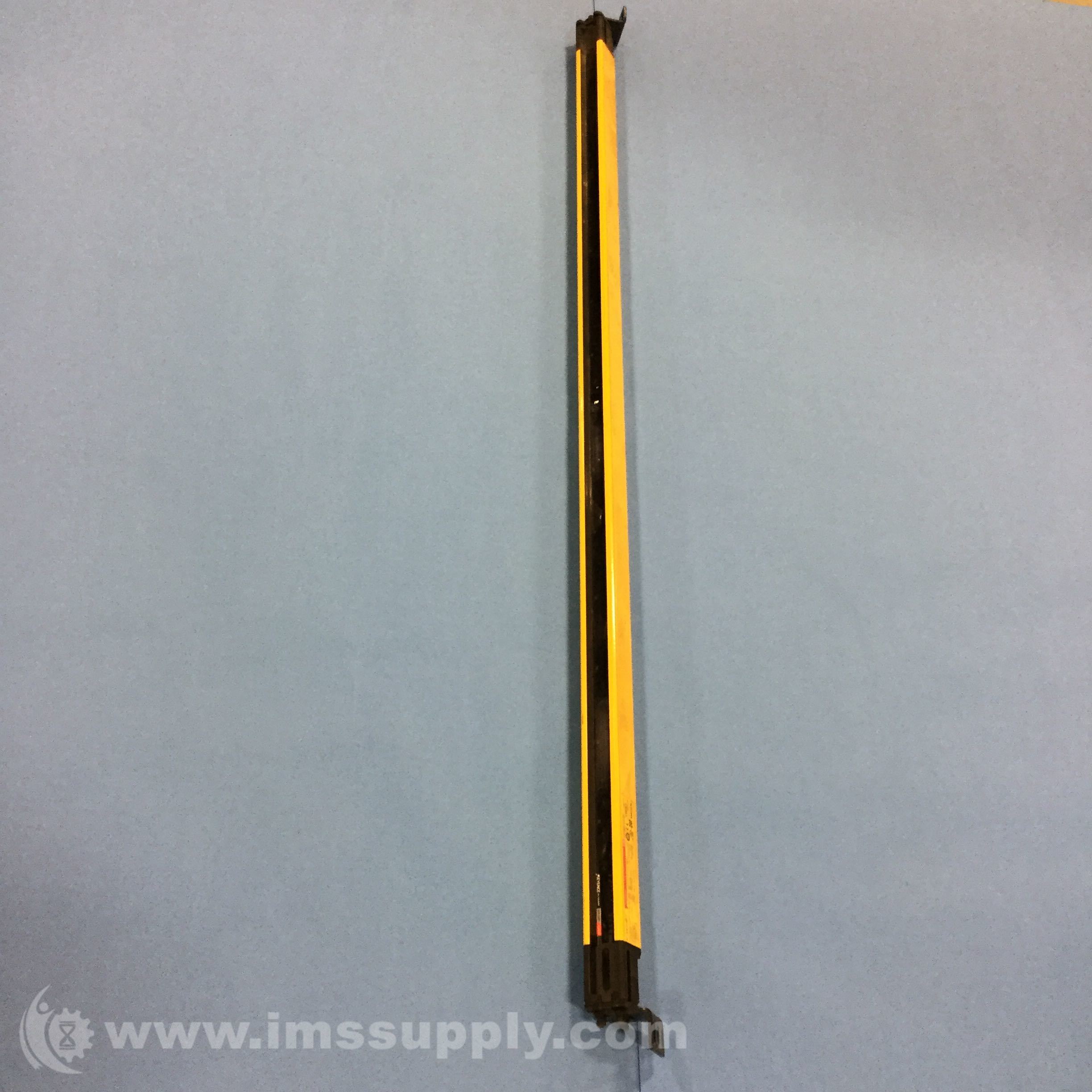

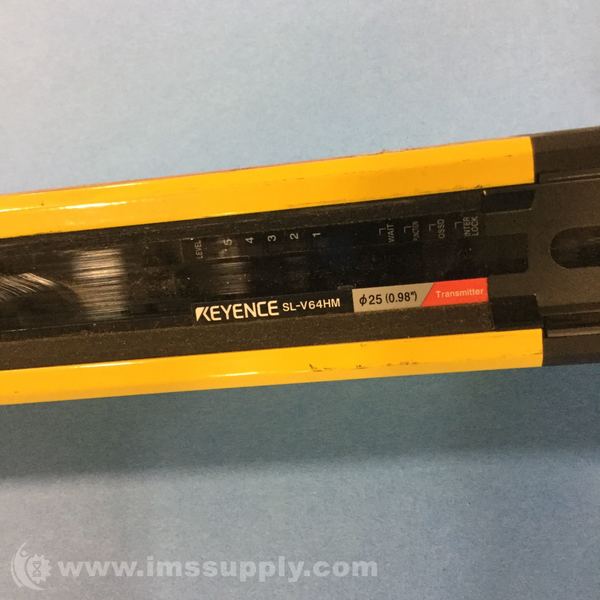

KEYENCE SL-V64HM-T SAFETY LIGHT CURTAIN TRANSMITTER
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: SL-V64HM-T
IMS Product Code: 1778500
Packaging: Sold Individually
Description:
Keyence SL-V64HM-T Safety Light Curtain Transmitter
Safety Light Curtain Transmitter with 64 Optical Axes, 24V DC Power Supply, M12 Connector, IP65/IP67 Protection Rating
Specifications
- Series: SL-V Series
- Type: Safety Light Curtain
- Detection Capability: 14mm
- Protective Height: 1260mm
- Number of Beams: 64
- Operating Range: 0.1 to 7m
- Response Time: 10.4ms
- Connection: M12 Connector
- Power Supply: 24V DC
- Current Consumption: 100mA or less
- Operating Temperature: -10 to 55 degrees C
- Storage Temperature: -25 to 70 degrees C
- Humidity: 15 to 95% RH
- Material: Aluminum alloy and polycarbonate
- Weight: Approx. 1.5kg
- Protection Rating: IP65/IP67
