KEYENCE AP-11S PRESSURE SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: AP-11S
IMS Product Code: 2135748
Packaging: Sold Individually
Description:

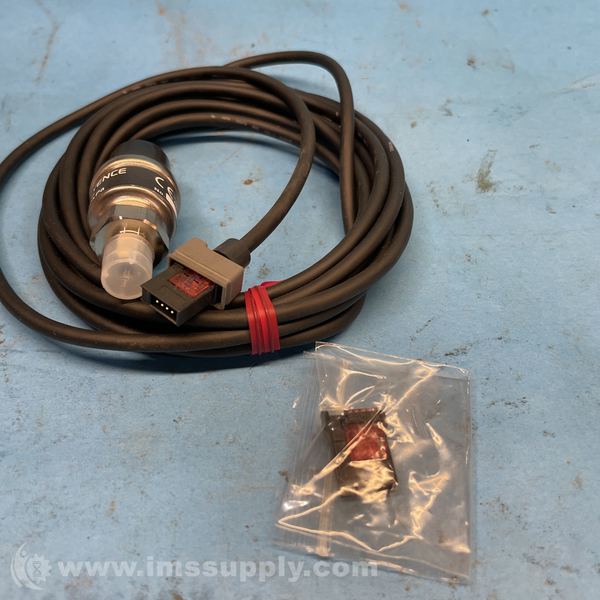

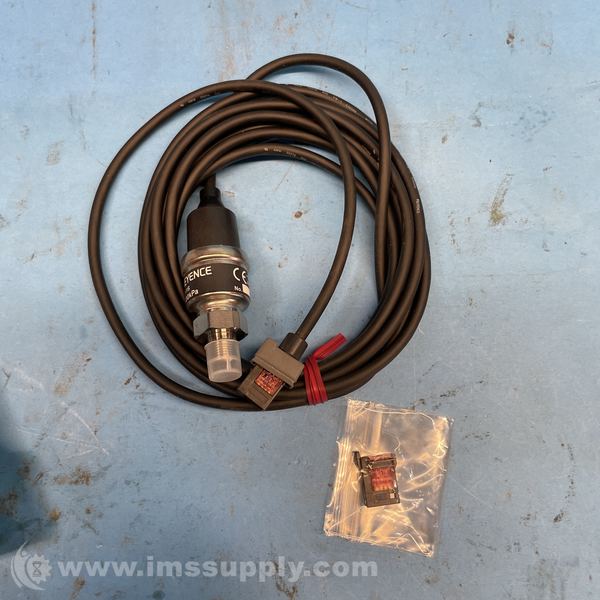

Keyence AP-11S Pressure Sensor
Sensor Head, Negative-pressure Type, -100 kPa
Specifications
- Rated pressure: 0 to -100 kPa
- Fluid type: Gases and liquids compatible with TYPE304 and TYPE S17400 stainless steel
- Type of pressure: Gauge pressure
- Repeatability: ±0.5 % of F.S. max.
- Connection diameter: R(PT)1/8
- Enclosure rating: IP67
- Pressure resistance: 500 kPa
- Ambient temperature: -10 to +70 degrees C, No condensation
- Relative humidity: 35 to 85%, No condensation
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y, and Z directions, 3 hours respectively
- Shock resistance: 500 m/s2 in X, Y, and Z directions 10 times respectively (60 times in total)
- Material: Diaphragm pressure port: TYPE S17400 stainless steel, Pressure port: TYPE304 stainless steel, Throttle: TYPE304 stainless steel
- Weight: Approx. 120 g

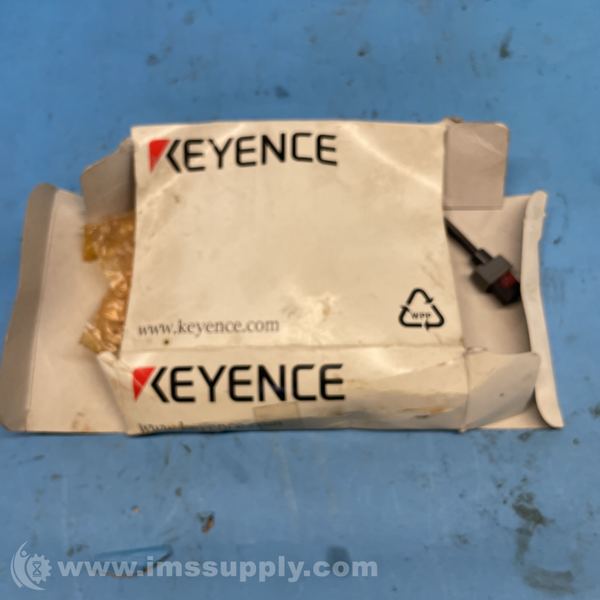

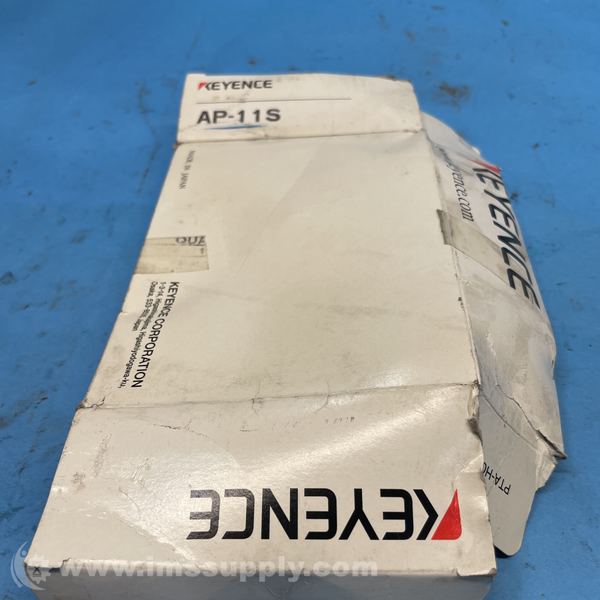

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 25 minutes.
