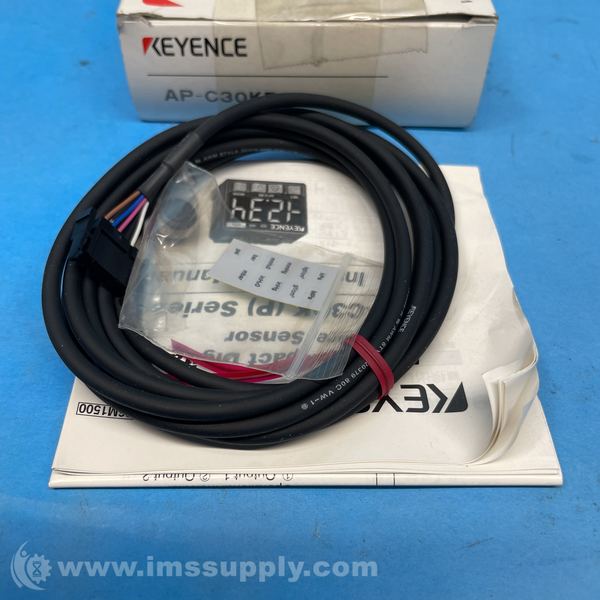

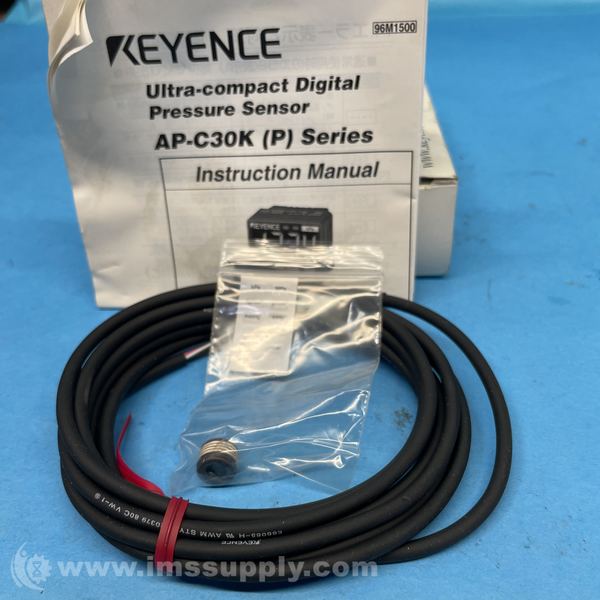

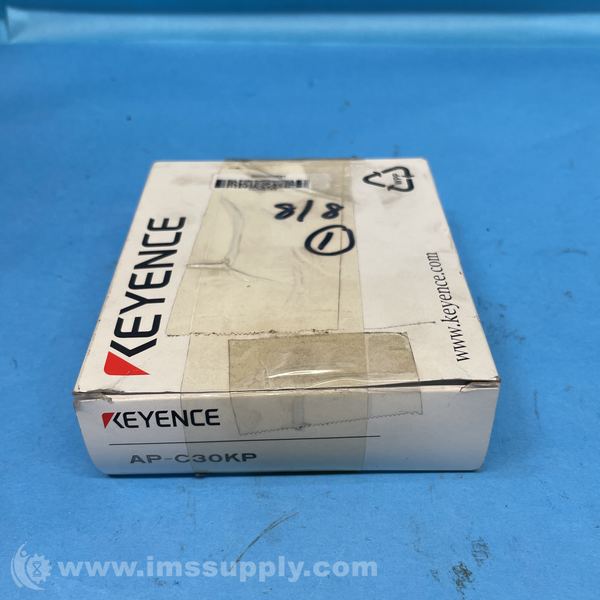

KEYENCE AP-C30KP ULTRA COMPACT DIGITAL PRESSURE SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: AP-C30KP
IMS Product Code: 2136810
Packaging: Sold Individually
Description:
Keyence AP-C30KP Ultra Compact Digital Pressure Sensor
Ultra-compact digital pressure sensor with PNP output, compound pressure type, 101.3 to -101.3 kPa range.
Specifications
- Series: AP-C30K (P) Series
- Type: Compound-pressure, PNP
- Rated Pressure: 101.3 to -101.3 kPa
- Fluid Type: Air or non-corrosive gases
- Type of Pressure: Gauge pressure
- Display: 3 1/2-digit, 2-color, 7-segment LED
- Power Voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Control Output: PNP open collector 100 mA max. (at 30 V or below)
- Pressure Port: NPT 1/8 180° rotation
- Material: Front housing: Polysulfone, Rear housing: PBT, Front seat: Polycarbonate, Pressure port: Zinc die-casting
- Weight: Approx. 30 g (without cable) / Approx. 85 g (with 6.6' 2-m cable)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 23 minutes.
