KEYENCE CA-MN80 COLOR LCD MONITOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: CA-MN80
IMS Product Code: 2121928
Packaging: Sold Individually
Description:

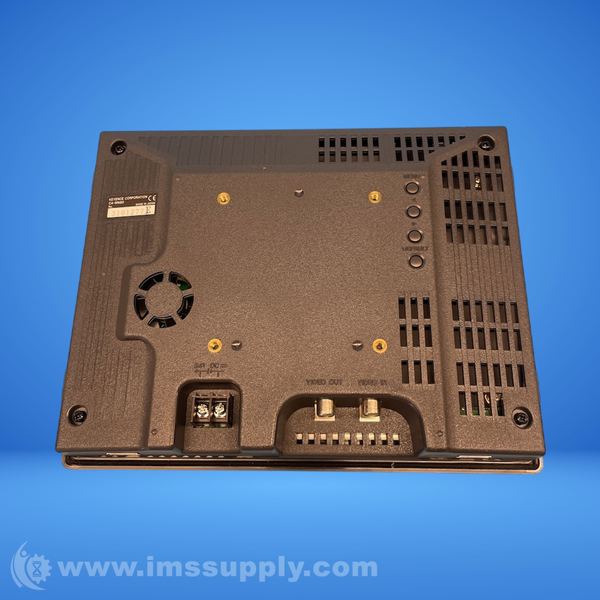

Keyence CA-MN80 Color LCD Monitor
8.4 inch color LCD monitor for machine vision applications
Specifications
- Display Size: 8.4 inch
- Display Color: a-Si, TFT active matrix method
- Resolution: 640 (W) x 480 (H) dots
- Active Display Area: 170.9 mm (W) x 128.2 mm (H)
- Structure: Panel-mount type, IP65f dust-proof and splash-proof front face
- Backlight Life: Approx. 50,000 hours
- Input Signal: NTSC composite signal
- Connector: RCA pin jack
- Power Voltage: 24 VDC +/- 10%
- Current Consumption: 1 A max.
- Operating Temperature: 0 to 40 degrees C
- Operating Humidity: 35 to 85% RH
- Weight: Approx 1200 g
- Dimensions: 15 x 10 x 10 cm
New - Open Box (Special):

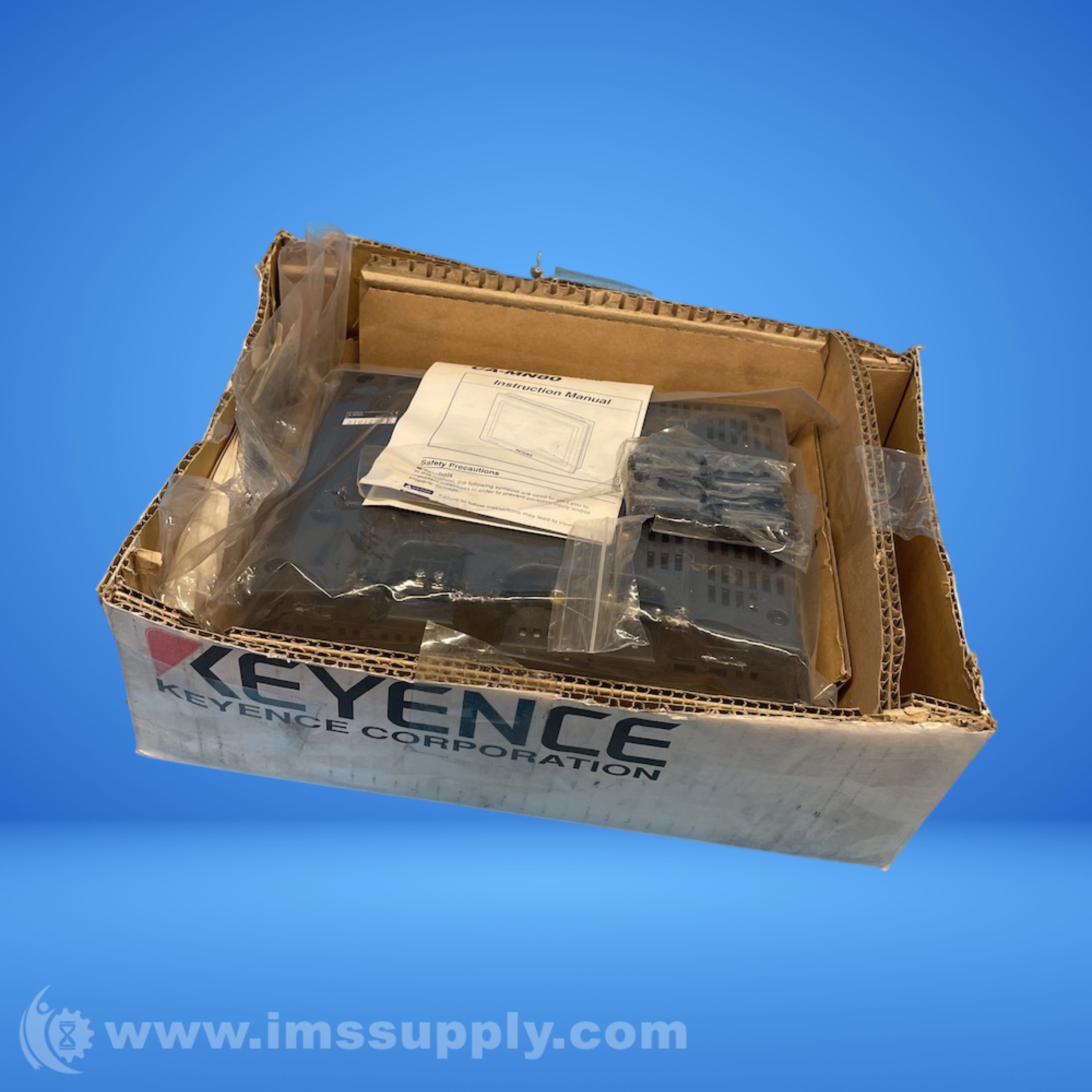

PART COMES WITH INSTRUCTION MANUEL and accessories
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 24 minutes.
