KEYENCE CZ-H32 REFLECTIVE SENSOR HEAD
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: CZ-H32
IMS Product Code: 1904814
Packaging: Sold Individually
Description:

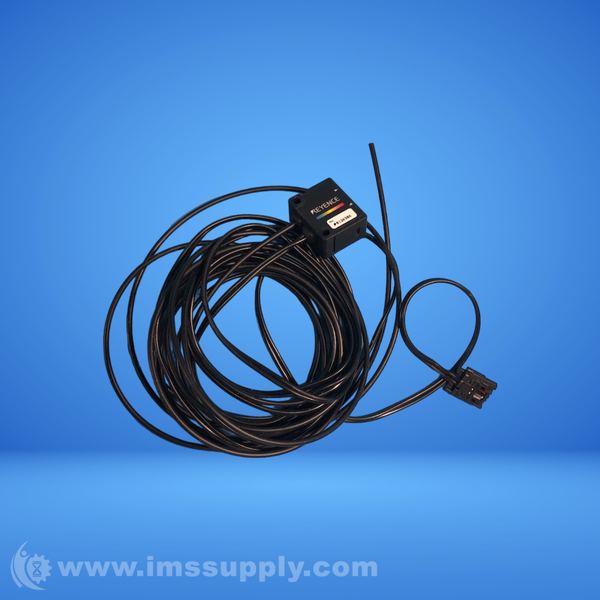

Keyence CZ-H32 Reflective Sensor Head
Adjustable spot sensor head with RGB LED light source and fiberoptic connectivity
Specifications
- Type: Adjustable spot
- Detecting area: 50 to 95 mm 1.97" to 3.74"
- Smallest spot diameter: Small: 3 mm 0.12"dia. Medium: 4.5 mm 0.18"dia. Large: 5.5 mm 0.22"dia.
- Light source: Red LED (665 nm)/Green LED (520 nm)/Blue LED (465 nm)
- Minimum bend radius of fiber: 25 mm 0.98"
- Enclosure rating: IP40
- Ambient light: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
- Ambient temperature: -10 to +55 degrees C 14 to 131 degrees F
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
- Material: Housing:Fiberglass reinforced plastic , Lens cover:Polyarylate
- Weight: Approx. 40 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
