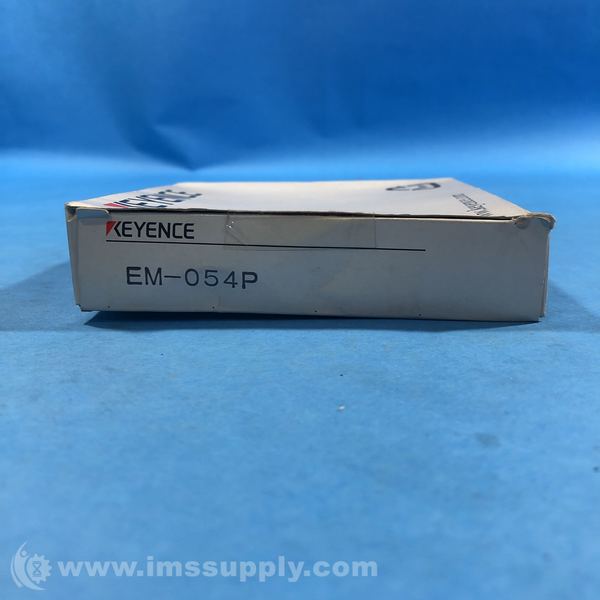

KEYENCE EM-054P PROXIMITY SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: EM-054P
IMS Product Code: 1985116
Packaging: Sold Individually
Description:
Keyence EM-054P Proximity Sensor
Proximity sensor with in-cable amplifier, shielded type, 5.4 mm diameter cylindrical shape, PNP output.
Specifications
- Detecting Distance: 1.2 mm 0.05" ±10%
- Detectable Object: Ferrous metals
- Standard Target: 6 x 6 mm 0.24"
- Hysteresis: 10% max. of detecting distance
- Response Frequency: 1.2 kHz
- Operation Mode: N.O.
- Output: PNP
- Control Output: PNP: 200 mA (30 V) max., Residual voltage: 1 V max.
- Power Voltage: 10.8 to 30 VDC, Ripple (P-P) 10 % or less
- Current Consumption: 20 mA or less
- Environmental Resistance: IP67
- Ambient Temperature: -25 to +80 °C -13 to 176 °F (No freezing)
- Relative Humidity: 35 to 95 % RH (No condensation)
- Weight: Approx. 40 g (including nuts and 2-m 6.6' cable)
- Housing: Stainless steel
- Display Indicator: Red LED
