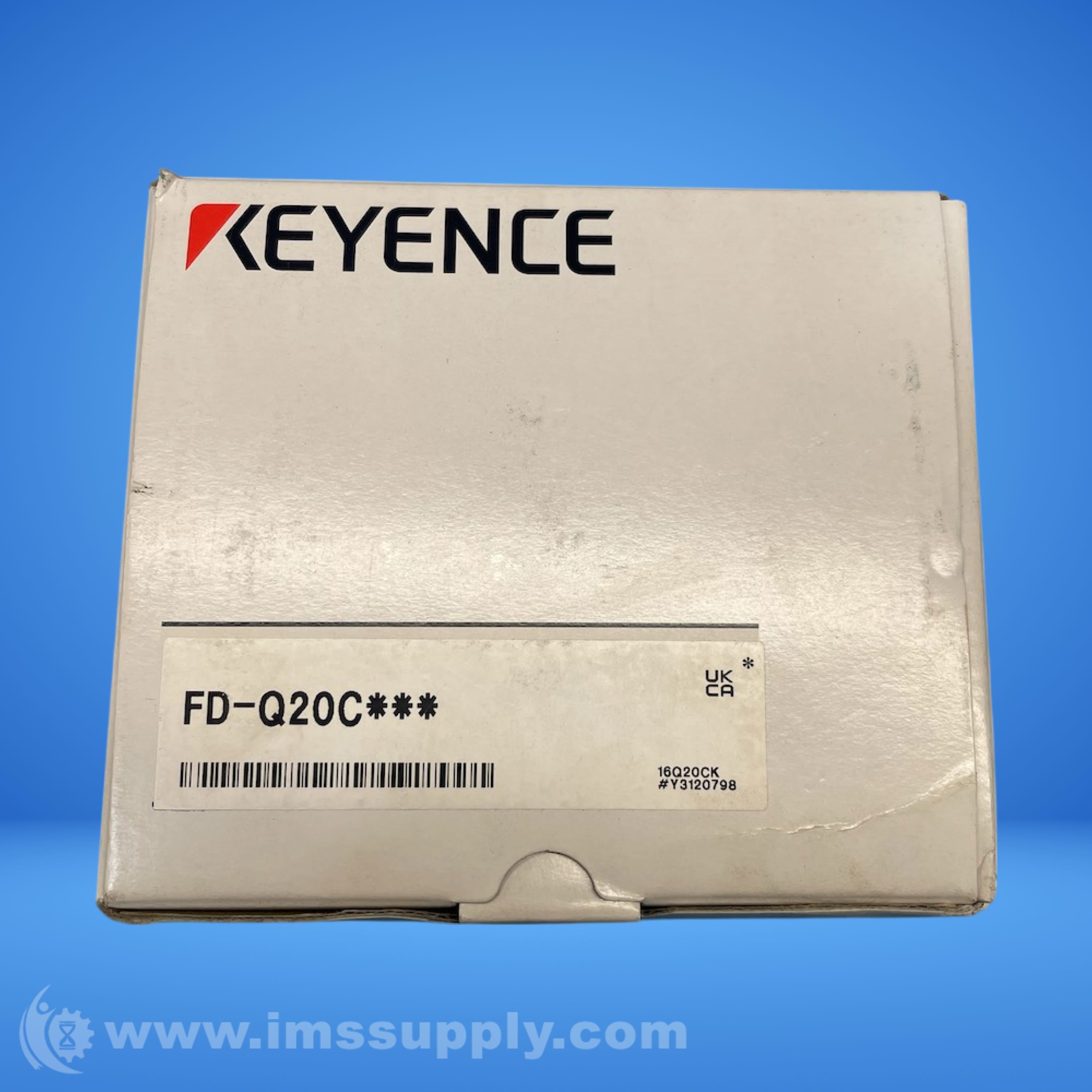

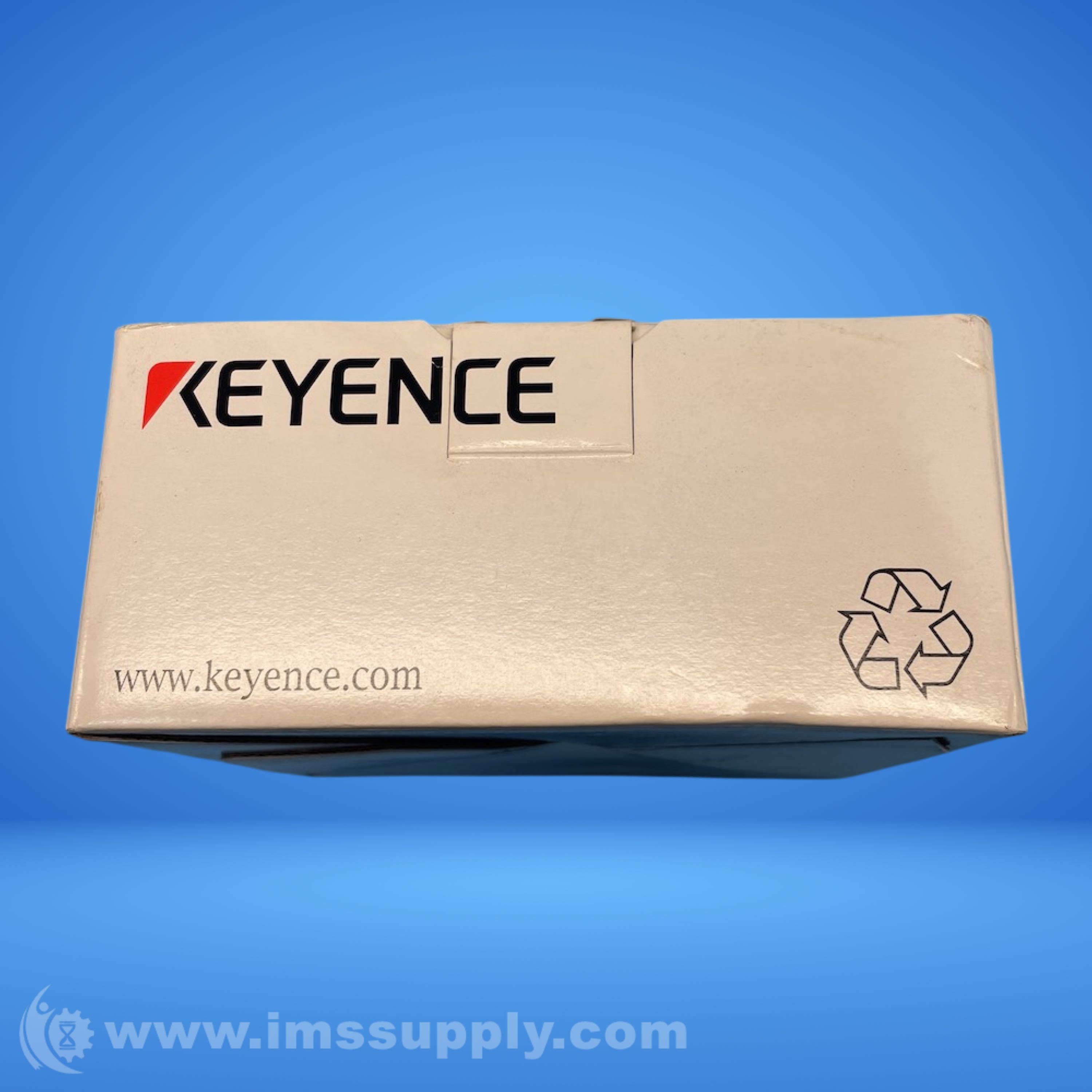

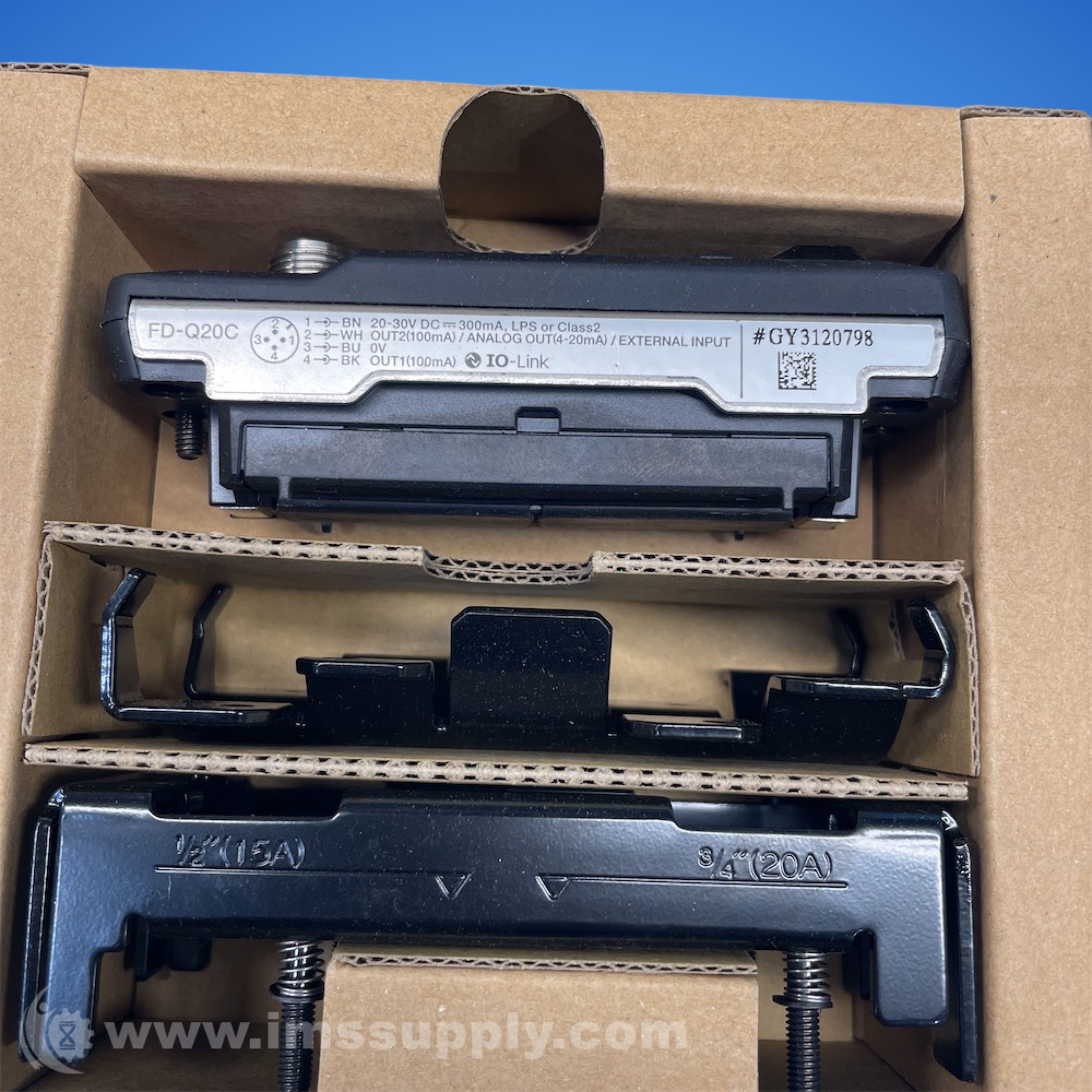

KEYENCE FD-Q20C CLAMP-ON FLOW SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FD-Q20C
IMS Product Code: 2148649
Packaging: Sold Individually
Description:
Keyence FD-Q20C Clamp-On Flow Sensor
Clamp-on type flow sensor with analog output, compatible with various pipe materials and liquids. Features easy installation and operation on high-pressure pipes without modification.
Specifications
- Type: Clamp-on type
- Sensing range: 0.5 to 150 L/min
- Fluid temperature range: 0 to 85 degrees C
- Response time: 0.5 s or 2 s
- Output: Analog output (4 to 20 mA)
- Power supply voltage: 20 to 30 VDC
- Current consumption: 35 mA or less (at 24 VDC), 55 mA or less (at 30 VDC)
- Ambient temperature: 0 to 60 degrees C
- Ambient humidity: 35 to 85% RH (with no condensation)
- Material: PBT
- Cable length: 2 m
- Weight: Approx. 150 g
- Tube size: 1/2"
- Repeatability: ±0.15% of F.S.
- IO-Link compatible: Yes
- IP Rating: IP65/IP67
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
