KEYENCE FD-Q32C CLAMP-ON FLOW SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FD-Q32C
IMS Product Code: 1807028
Packaging: Sold Individually
Description:

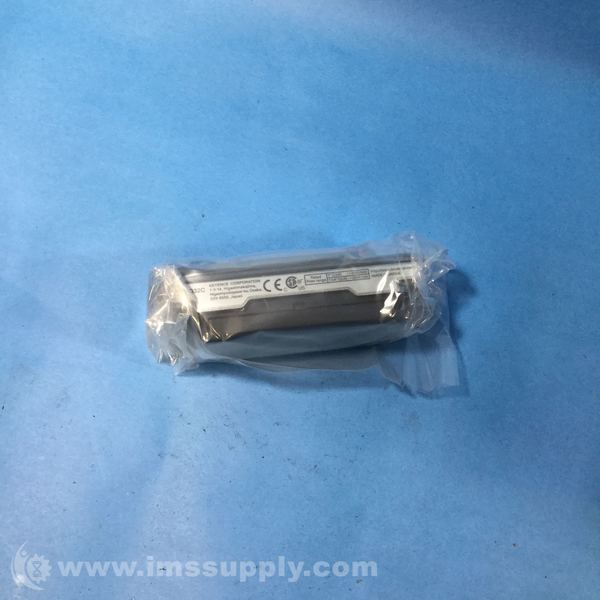

Keyence FD-Q32C Clamp-On Flow Sensor
Clamp-on flow sensor for 1"-1.25" pipe diameter, 200-300L/min flow range, 20-30V DC supply voltage, M12 4-pin connector.
Specifications
- Capacity: 79.3 gal/min
- Material: PPS/PET/POM
- Flow Rate Measuring Range: 0.5 to 32 L/min
- Fluid Temperature: 0 to 80 degrees C
- Fluid Pressure: 0 to 1 MPa
- Response Time: 0.1 s or less
- Output Type: PNP open collector
- Supply Voltage: 12 to 24 VDC
- Display resolution: 0.1/ 1 L/min
- Repeatability: ±2.0% (0.5 s), ±1.5% (1 s), ±1.0% (2.5 s), ±0.5% (5 s)
- Maximum Rated Flow: 200 L/min, 300 L/min
- Zero Cut Flow Rate: 5.0 L/min
- Power I/O connector: M12 4-pin connector
- Current Consumption: 130 mA or less
- Enclosure Rating: IP65/IP67
- Sensor Main Unit: PPS/PES/PBT/SUS303/SUS304/SUSXM7
- Ambient Temperature: -10 to +60 degrees C
- Relative Humidity: 35 to 85 % RH
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
